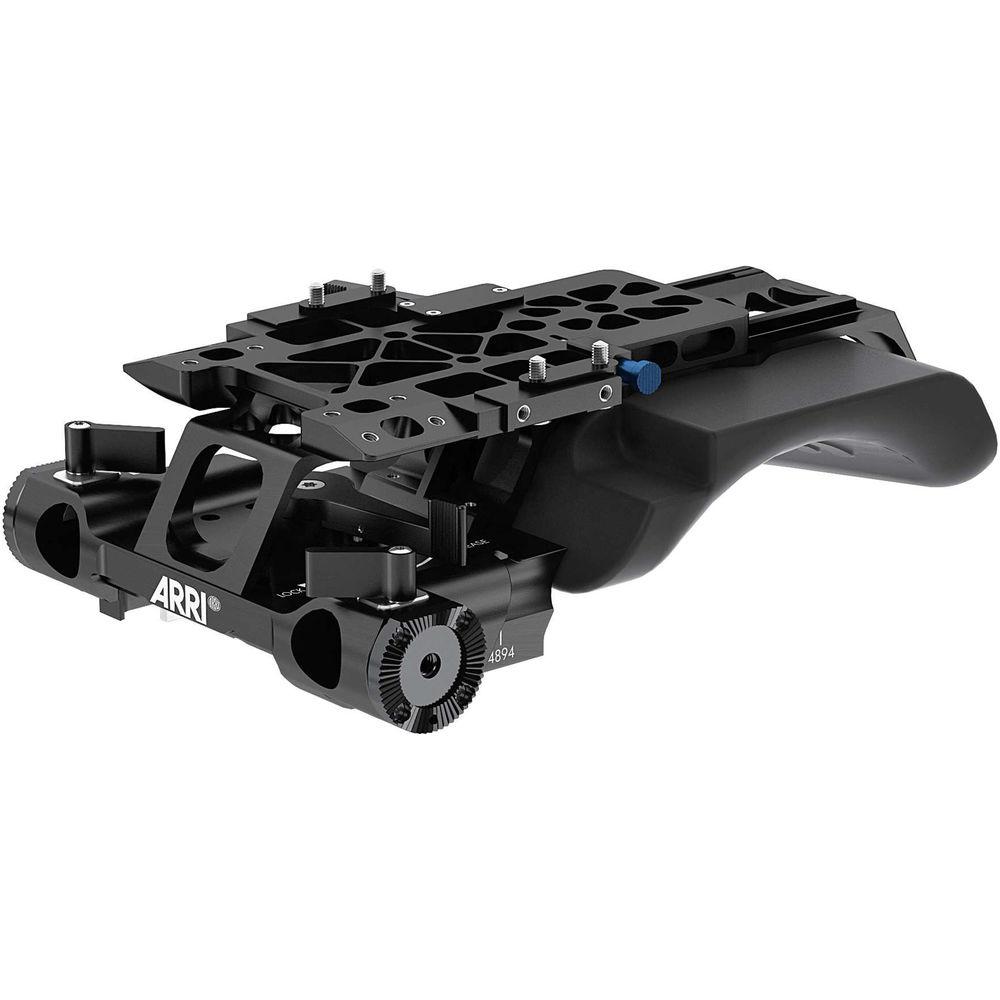

Product description The ARRI Studio Upgrade Set 19mm for ALEXA Mini provides select components for users looking to round out their existing accessory collection. Items in the set include a compact bridge plate and 12" dovetail, a stabilizer plate for the CBP-1, various accessory mounting brackets, and two 19mm rods of different lengths for mounting lens motor brackets and other components. Note: This upgrade set does not include a battery solution. - Compact Bridge Plate CBP-1 19mm for ALEXA Mini The ARRI Compact Bridge Plate CBP-1 19mm provides a lightweight option for mounting 19mm Studio-standard accessories to your ALEXA Mini camera. A sliding balance mechanism and quick release system offer the adjustability of a studio bridge plate at a reduced weight.Features include right and left rosettes, front 19mm Studio rod support, and a built-in, contoured shoulder pad. Use the CBP-1 19mm bridge plate to mount camera accessories onto a pair of separately available rods or onto the ARRI-standard rosettes.
Features - A quick release system enables you to mount or detach the camera without sliding out the balance assembly
- Add 19mm Studio rod-mounted accessories in front of your ARRI ALEXA Mini
- Rosettes on both right and left sides for attaching a handgrip or other rosette-based accessory
- Integrated, contoured shoulder pad increases comfort while operating handheld

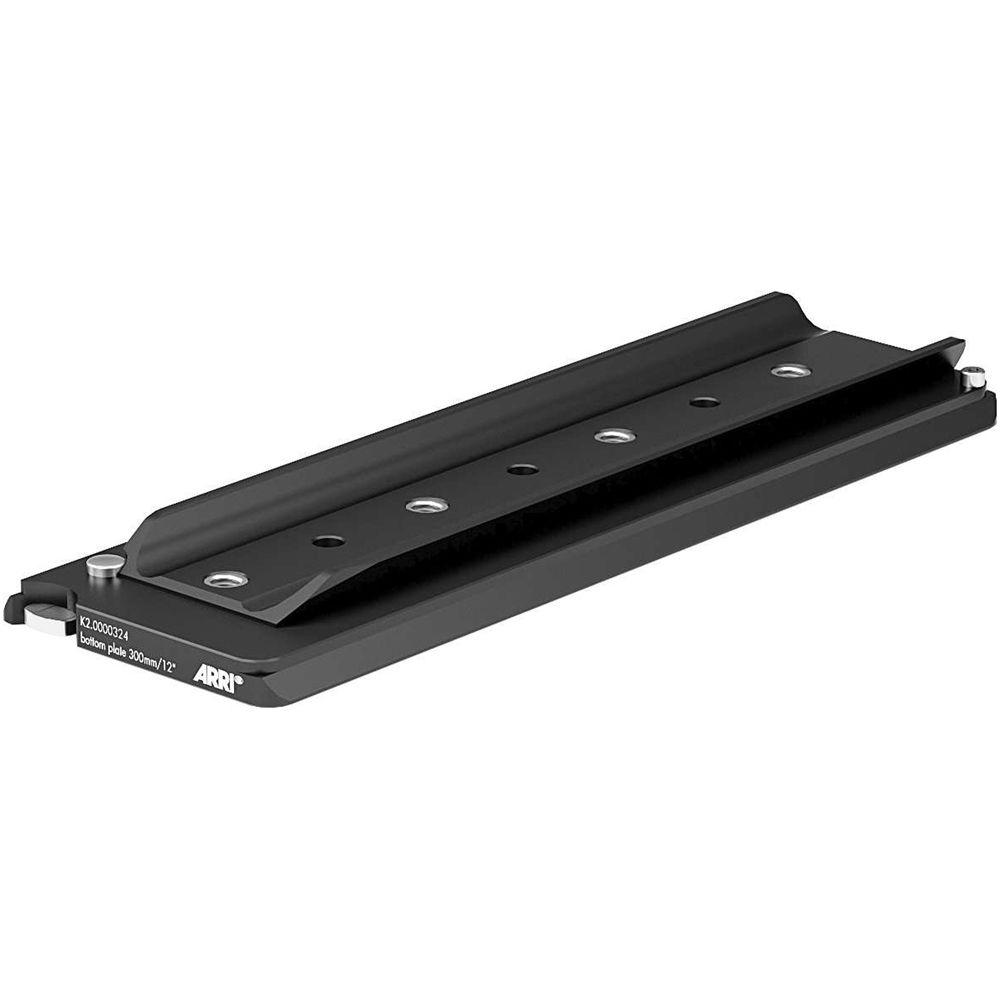

- Bottom Dovetail Plate (12") This 12" Bottom Dovetail Plate from ARRI is used with a sliding bridge plate or sled to balance your camera rig. To prevent the bridge plate or sled from sliding off, the Dovetail Plate features a spring-loaded post on one end and a stationary stop on the other. The bottom of the plate incorporates 3/8"-16 threaded holes for mounting the dovetail to a tripod quick release plate or other support.
- Use with a sliding bridge plate or sled to balance your camera rig (plate or sled not included)
- Includes a spring-loaded post on one end, and a stationary stop on the other to prevent the bridge plate or sled from sliding off
- Bottom of dovetail includes 3/8"-16 threaded holes for mounting to a tripod quick release plate or other support

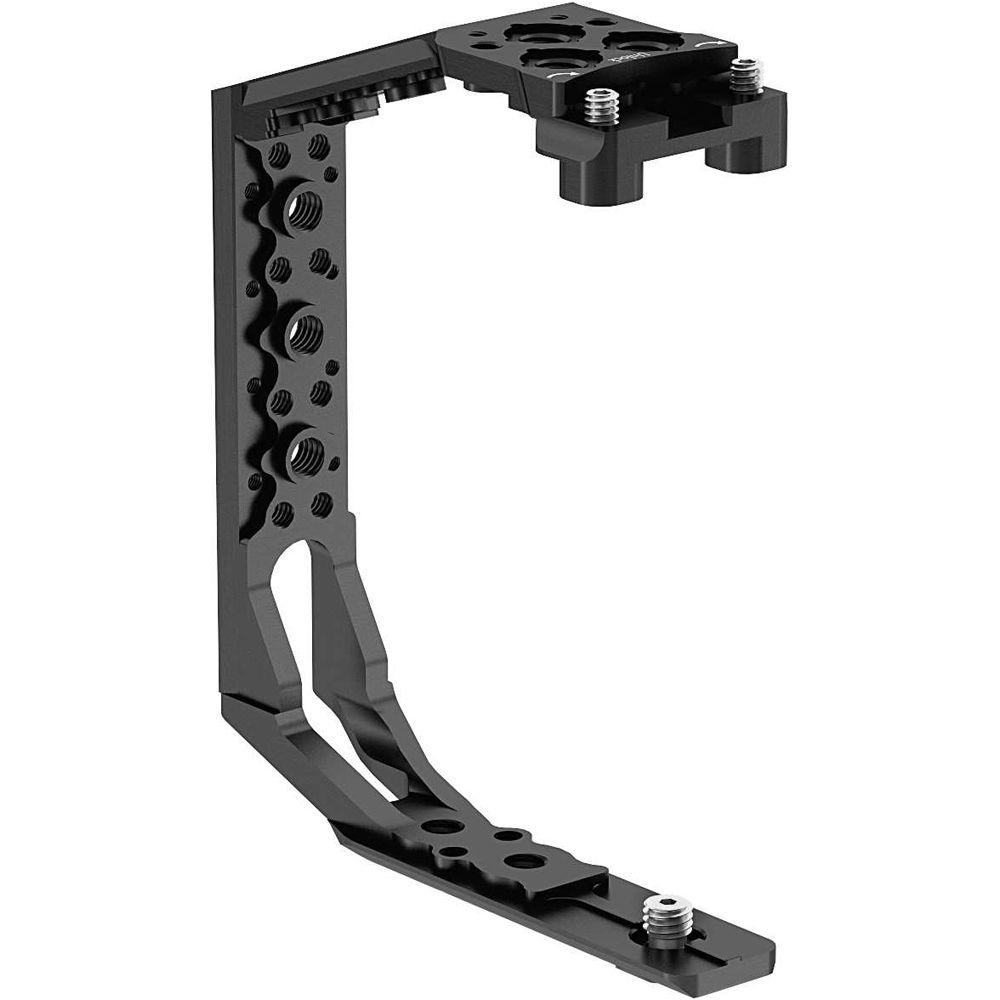

- Rear Accessory Bracket RAB-1 The ARRI Rear Accessory Bracket RAB-1 is designed to mount accessories like battery plates or power-splitting boxes to the ALEXA Mini camera body. This curved bracket screws onto the camera providing a rib-like structure on which to attach a power solution. Use the RAB-1 bracket with the separately available RAB-1 Clamp to attach an ARRI Power Splitting Box, or a BAP-1 Battery Adapter Plate.

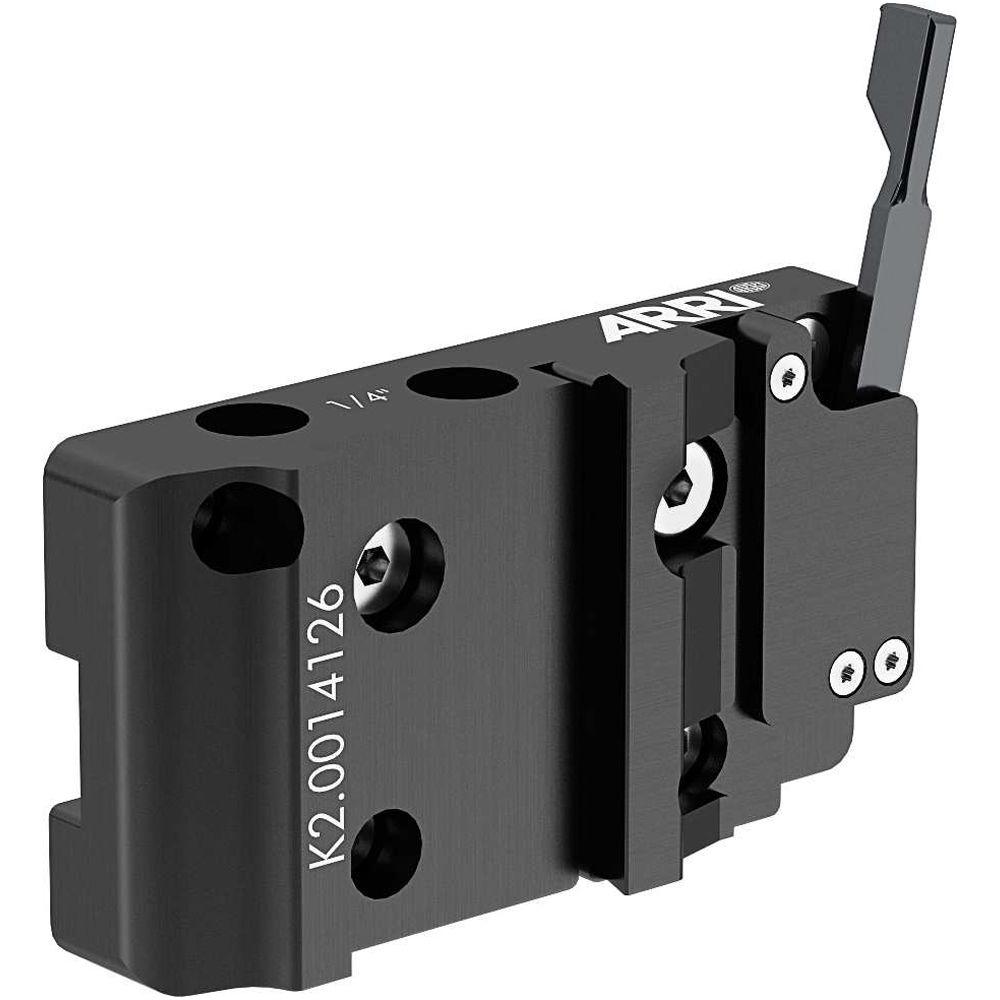

- RAB-1 Clamp The ARRI RAB-1 Clamp is used to mount an ARRI battery plate or power-splitting box to the separately available RAB-1 Rear Accessory Bracket for the ALEXA Mini camera body. This clamp features a slide-in design with a thumb-lever release.

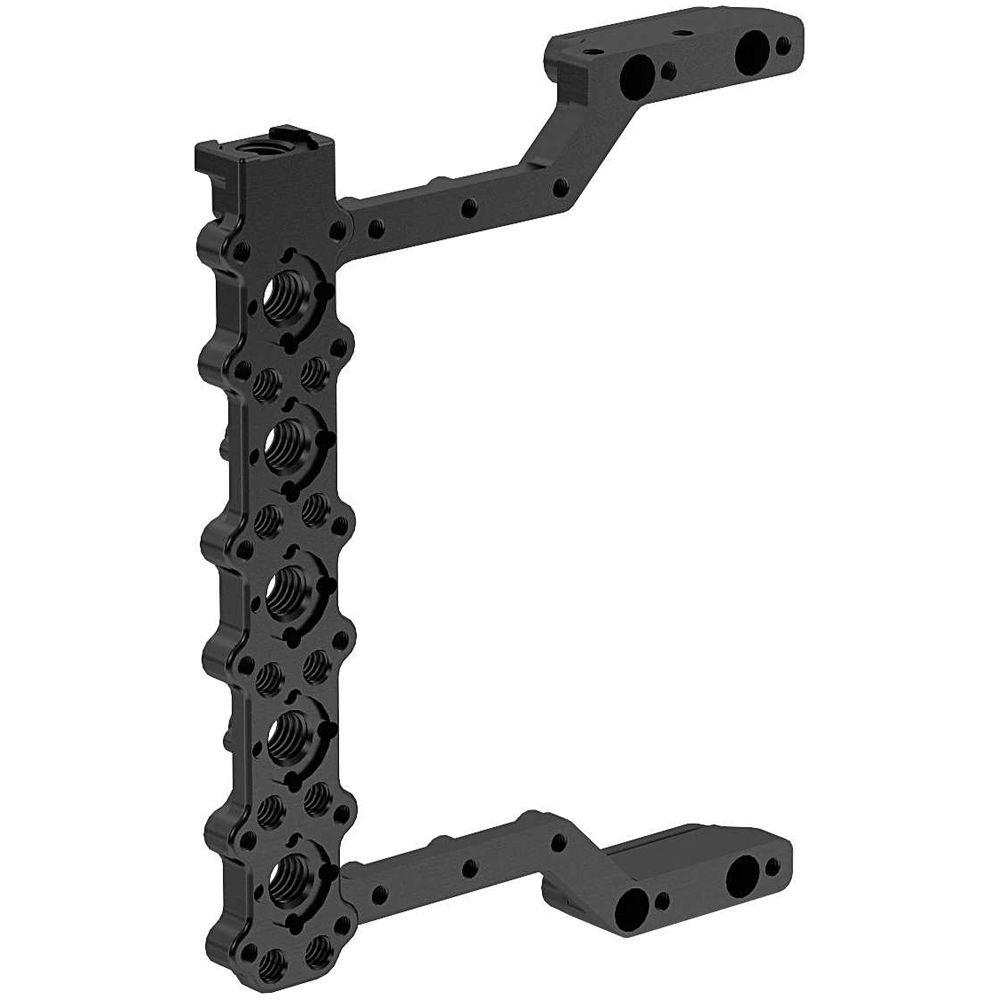

- SAB-1 Side Accessory Bracket for ALEXA Mini The ARRI SAB-1 Side Accessory Bracket fits onto an ALEXA Mini adapter plate, providing multiple points for attaching accessories to the camera (adapter plate available separately). In addition to 3/8"-16 and 1/4"-20 threaded holes, the SAB-1 provides interfaces for attaching the RMB-3 Rod Mounting bracket and MSB-1 Mini Side Brackets. The SAB-1 Bracket can be mounted to an MAP-1 or MAP-2 ALEXA Mini Adapter Plate, the Mini Broadcast Plate, or the CBP-1 Compact Bridgeplate.
Features - Attaches to the ARRI ALEXA Mini via an adapter plate (available separately)
- Provides multiple 3/8"-16 and 1/4"-20 accessory mounting points
- Can be used to mount the RMB-3 Rod Mounting Bracket and MSB-1 ALEXA Mini Side Brackets
- Attaches to an MAP-1 or MAP-2 ALEXA Mini Adapter Plate, the Mini Broadcast Plate, or the CBP-1 Compact Bridgeplate (all available separately)

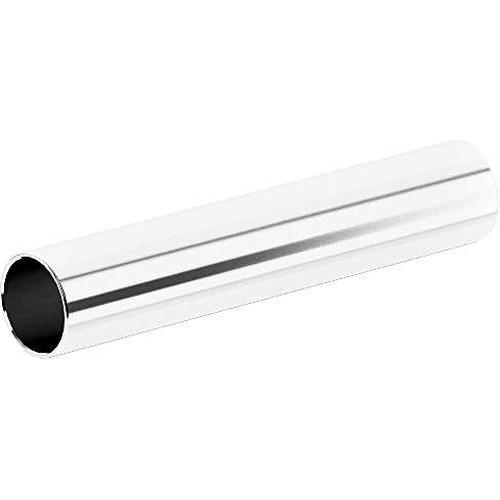

- Single Support Rod (3.5", 19mm) The lightweight ARRI Single Support Rod (3.5", 19mm) is designed to support a lens motor driving an Ultra or Master Prime lens mounted in the ARRI SAM-3 Stabilizer Adapter Mount. This stainless steel rod may also be used for any rig where space constrictions dictate the use of a shorter 19mm rod.

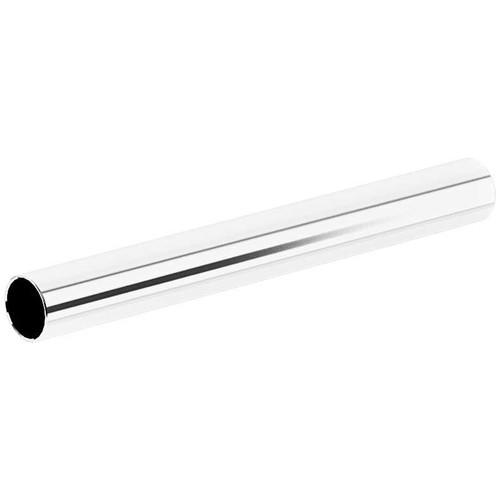

- Single Support Rod (5.9", 19mm) The lightweight ARRI Single Support Rod (5.9", 19mm) is designed to support a lens motor driving an Ultra or Master Prime lens mounted in the ARRI SAM-3 Stabilizer Adapter Mount. This stainless steel rod may also be used for any rig where space constrictions dictate the use of a shorter 19mm rod.

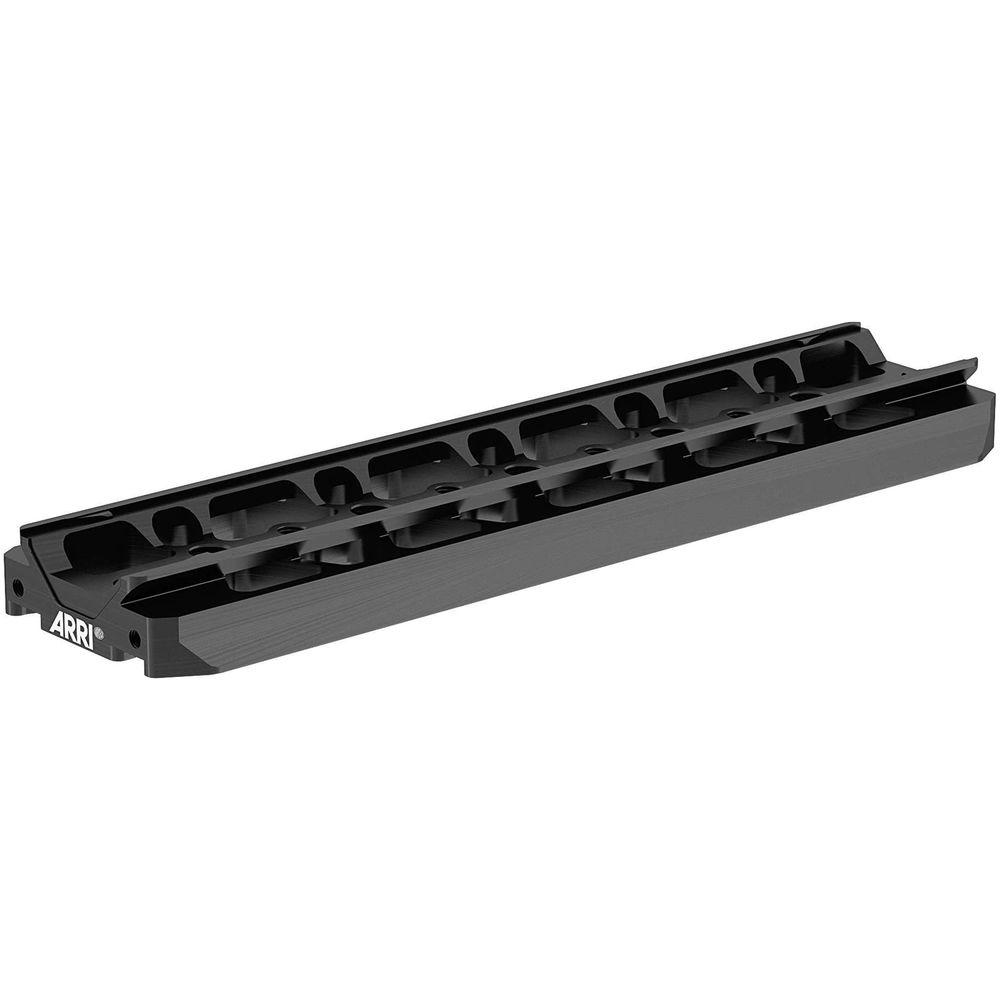

- Stabilizer Plate for CBP The ARRI Stabilizer Plate for CBP enables the Compact Bridge Plate to convert into a Stabilizer Adapter Mount for the ALEXA Mini (SAM-2). Compatible with third-party, standard 60mm dovetails, this plate serves as the bottom half of a camera-balancing bridge plate system.
In the Box Bundle Items Compact Bridge Plate CBP-1 19mm for ALEXA Mini btxafeuu Bottom Dovetail Plate (12") Rear Accessory Bracket RAB-1 RAB-1 Clamp SAB-1 Side Accessory Bracket for ALEXA Mini Single Support Rod (3.5", 19mm) Single Support Rod (5.9", 19mm) Stabilizer Plate for CBP

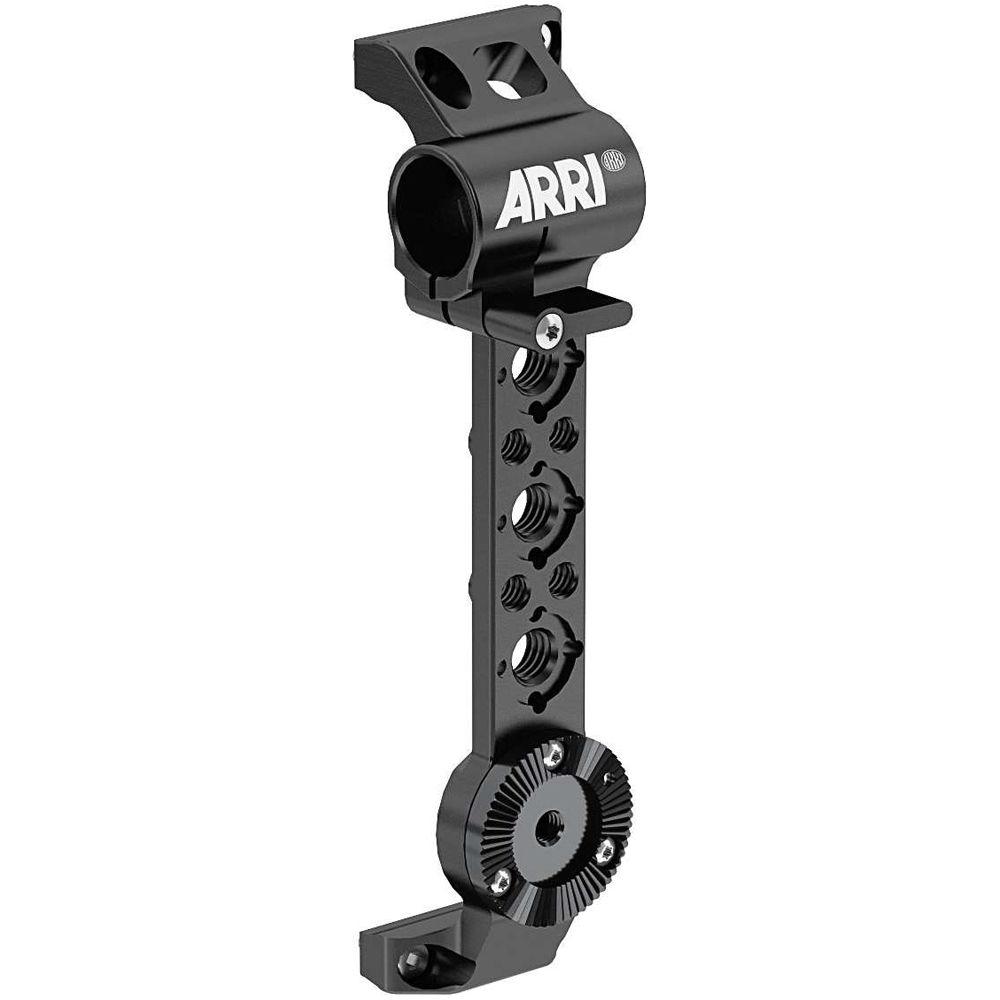

Also Includes - Mini Side Bracket MSB-2
- Limited 1-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the ARRI Studio Upgrade Set 19mm for ALEXA Mini in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Compact Bridge Plate CBP-1 19mm for ALEXA Mini
| Rod Standard | 19 mm Studio | | Dimensions and Weight | Not specified by the manufacturer | - Bottom Dovetail Plate (12")
| Dimensions (WxLxD) | 3.9 x 11.8 x 1" (100 x 300 x 25 mm) | | Weight | 1.3 lb (578 g) | | | | Box Dimensions (LxWxH) | 11.9 x 4.2 x 1.6" | - Rear Accessory Bracket RAB-1
| Accessory Mounting Threads | 3/8"-16, 1/4"-20 | | Dimensions and Weight | Not specified by manufacturer | | | | Box Dimensions (LxWxH) | 7.4 x 6.0 x 1.5" | - RAB-1 Clamp
| Dimensions and Weight | Not specified by manufacturer | | | | Box Dimensions (LxWxH) | 4.5 x 2.2 x 0.9" | - SAB-1 Side Accessory Bracket for ALEXA Mini
| Accessory Mount Threads | 3/8"-16, 1/4"-20 | | Dimensions | Not specified by manufacturer | | | | Box Dimensions (LxWxH) | 7.2 x 5.8 x 0.7" | - Single Support Rod (3.5", 19mm)
| Rod Standard | 19 mm | | Material of Construction | Stainless steel | | Rod Length | 3.5" / 90 mm | | | | Box Dimensions (LxWxH) | 5.9 x 3.4 x 0.7" | - Single Support Rod (5.9", 19mm)
| Rod Standard | 19 mm | | Material of Construction | Stainless steel | | Rod Length | 5.9" / 150 mm | - Stabilizer Plate for CBP
| Dimensions and Weight | Not specified by manufacturer |
