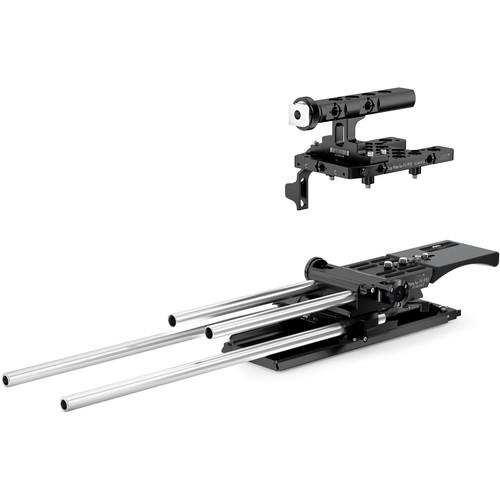

User Manual for ARRI Support Set for Sony F5 F55 with BP-9, 15mm Rods Click to enlarge the picture
Contents of the user manual for the ARRI Support Set for Sony F5
- Product category: Camcorder Supports & Rigs ARRI
- Brand: ARRI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ARRI Camcorder Supports & Rigs
|
User manual for the ARRI Support Set for Sony F5 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ARRI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ARRI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ARRI product will considerably shorten its lifespan!
|
Product description The ARRI Support Set for Sony-F5/F55 with BP-9 provides both 15mm lightweight, and 15mm studio rod support for your Sony PMW-F5 or F55 camera. This set includes an adapter plate, shoulder pad, two-piece BP-9 bridge plate adapter, 9" and 17" pairs of 15mm rods, a top cheese plate, and a CCH2 carrying handle. This set also includes a VFA-1 adapter for mounting a Sony viewfinder to an ARRI 3/8"-16 interface, and a viewfinder plug. Add 15mm studio rod-based accessories, and balance the camera on your tripod using the adapter plate, the longer 15mm rods (17"), and the BP-9 bridge plate. Alternatively, detach the adapter plate from the BP-9 using its integrated touch-and-go plate, and add the shorter 15mm rods (9") for a shoulder-mount based rig. The shoulder plate can remain attached to the adapter when used on a tripod, saving time when switching between support styles. - Adapter Plate for Sony F5/F55 The Sony Adapter Plate from ARRI is specifically designed to work with PMW-F5/F55 HD cameras. The bottom of the plate takes the form of a Sachtler Touch and Go plate for quick and easy mounting to a head. This plate will support a pair of lightweight 15mm rods (not included), enabling you to flesh out your camera rig with rod-mounted accessories. Rosettes on both the right and left sides of the Sony Adapter Plate provide points for attaching a handgrip or other accessory. Anti-twist pins prevent the plate from slipping askew when attached to the bottom of the camera.
Features - Integrated Sachtler Touch and Go plate for quick, easy mounting to a head or other support
- Enables the addition of 15mm rod-mounted accessories to your Sony F5/F55 rig
- Rosettes on both right and left sides for attaching a handgrip or other rosette-based accessory
- Anti-twist pins prevent the plate from skewing off center when attached to the bottom of the camera
- 15mm Lightweight Support Rods (Pair, 9") This pair of 9" ARRI Lightweight Support Rods feature lightweight stainless steel construction and are designed to reduce your rig's weight. Use them with any 15mm-based accessory or bridgeplate.
- Hollow, lightweight stainless steel construction with non-threaded ends
- Compatible with any 15mm-based accessory or bridgeplate
- Shoulder Pad for Sony PMW-F5/F55 The ARRI Shoulder Pad for Sony PMW-F5/F55 attaches to the bottom of the camera, or to an ARRI baseplate. This pad offers a comfortable rest for your camera, enabling longer shooting times. When used with an ARRI baseplate, the pad can remain mounted to the camera, saving time when switching between handheld and tripod-based shots.
- Attaches to bottom of Sony PMW-F5/F55, or to an ARRI baseplate
- Can remain attached when mounted on a tripod head when used with an ARRI baseplate
- Increases comfort when operating the camera in handheld mode
- Top Plate for Sony PMW-F5/F55 Use the Sony PMW-F5/F55 Top Plate from ARRI when you're looking to trick out your camera to best suit your needs. This plate provides multiple accessory mounts for your camera, and is compatible with an optional support for a pair of 15mm LWS rods. The cheese plate adds 1/4"-20 and 3/8"-16 mounting threads on the top of the camera and is shaped to fit so that use of the original handle is maintained.
Features - Cheese plate style form is shaped to fit so that use of the original handle is maintained
- Plate is compatible with an optional support for a pair of 15mm support rods (rods not included)
- Provides multiple 3/8"-16 & 1/4"-20 threaded accessory-mounting points
- VFA-1 Viewfinder Adapter for Sony PMW-F5/F55 The ARRI VFA-1 Viewfinder Adapter is designed to mount a Sony PMW-F5 or F55 viewfinder to any ARRI 3/8"-16 interface. Used in combination with the ARRI top plate and handle, the VFA-1 enables you to configure the EVF in a more ergonomic position.
- CCH-2 Center Camera Handle Expand your options for mounting HD camera accessories like monitors, transmitters, mic holders, French flags, etc., on your ARRI camera rig by using the ARRI CCH-2 Center Camera Handle. This sturdy carrying handle screws onto a UAP-2 adapter plate (available separately), and features multiple 3/8"-16 and 1/4"-20 threaded holes for attaching accessories. Designed for use with ALEXA M, ALEXA Mini, and AMIRA cameras, it will also work with many ARRI accessory-equipped third-party cameras.
Features - Sturdy carrying handle attaches to a UAP-2 adapter plate (available separately) to provide accessory mounts
- Adds multiple 3/8"-16 threaded mounting points to an AMIRA and ALEXA M/Mini Camera, or third-party cameras using ARRI support systems
- BP-9 Bridge Plate Kit with 12" Dovetail Plate & 15mm Rods (17") The BP-9 Bridge Plate Kit from ARRI is used to balance your camera and to support 15mm rod-based accessories. The kit consists of the BP-9 sled, a 12" bottom dovetail plate, and a 17" pair of 15mm support rods. Directly compatible with the ARRI ALEXA Studio, the Sony F65, and the Phantom Flex4K, the BP-9 Kit can be adapted for use with the ARRI ALEXA, AMIRA, ALEXA Mini, and many third-party cameras (adapters available separately). Unlock the bridge plate lever to easily adjust the camera balance after increasing or decreasing the rig's weight. The Dovetail Plate features end posts for security and incorporates 3/8"-16 threaded holes for mounting the dovetail to a tripod quick-release plate or other support. The hollow pair of 17" rods provides lightweight, standard 15mm rod support for matte boxes, follow focus units, lens supports, etc.
- Viewfinder Plug Protector for Sony PMW-F5/F55 Use the Viewfinder Plug Protector from ARRI to protect the EVF port on your Sony PMW-F5 or F55 camera. An ARRI Top Plate for F5/F55 (not included) is required to use this protector.
In the Box Bundle Items Adapter Plate for Sony F5/F55 xdseuyyrrruefccutswu 15mm Lightweight Support Rods (Pair, 9") Shoulder Pad for Sony PMW-F5/F55 Top Plate for Sony PMW-F5/F55 VFA-1 Viewfinder Adapter for Sony PMW-F5/F55 CCH-2 Center Camera Handle BP-9 Bridge Plate Kit with 12" Dovetail Plate & 15mm Rods (17") - Bottom Dovetail Plate (12")
- 15mm Support Rods (Pair, 17")
Viewfinder Plug Protector for Sony PMW-F5/F55 Table of Contents
|
Upload User Manual
Have you got an user manual for the ARRI Support Set for Sony F5 F55 with BP-9, 15mm Rods in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Adapter Plate for Sony F5/F55
| Dimensions (L x H) | Not specified by manufacturer | | Weight | 15.7 oz (444 g) | | | | Box Dimensions (LxWxH) | 6.6 x 5.7 x 1.9" | - 15mm Lightweight Support Rods (Pair, 9")
| Material of Construction | Stainless Steel | | Rod Diameter | 15 mm | | Rod Length | 9.4" / 23.9 cm | | Weight | 5.2 oz / 148 g | | | | Box Dimensions (LxWxH) | 9.5 x 1.2 x 0.5" | - Shoulder Pad for Sony PMW-F5/F55
| Dimensions | Not specified by manufacturer | | Weight | 7.1 oz (202 g) | | | | Box Dimensions (LxWxH) | 5.2 x 3.6 x 1.1" | - Top Plate for Sony PMW-F5/F55
| Dimensions | Not specified by manufacturer | | Weight | 9.8 oz (278 g) | | | | Box Dimensions (LxWxH) | 5.6 x 4.5 x 1.2" | - VFA-1 Viewfinder Adapter for Sony PMW-F5/F55
| Mount Compatibility | ARRI 3/8"-16 accessory mount | | Weight | 3.2 oz (90 g) | | | | Box Dimensions (LxWxH) | 4.05 x 3.85 x 1.6" | - CCH-2 Center Camera Handle
| Dimensions | 3.9 x 5.9 x 2.6" (10.0 x 15.0 x 6.5 cm) | | Weight | 8.7 oz (248 g) | | | | Box Dimensions (LxWxH) | 5.4 x 3.9 x 3.2" | - BP-9 Bridge Plate Kit with 12" Dovetail Plate & 15mm Rods (17")
| | | Box Dimensions (LxWxH) | 18.4 x 6.7 x 3.2" | - Viewfinder Plug Protector for Sony PMW-F5/F55
| Dimensions | 1.3 x 2.8 x 0.9" (32 x 70 x 24 mm) | | Weight | 1.2 oz (33 g) | | | | Box Dimensions (LxWxH) | 4.0 x 2.9 x 0.6" |
