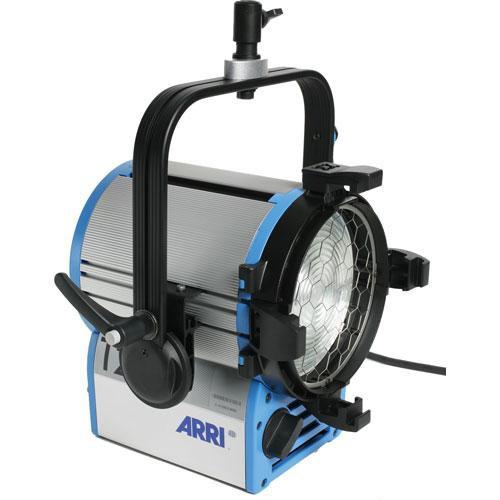

User Manual for ARRI T1 1000W Location Fresnel Click to enlarge the picture
Contents of the user manual for the ARRI T1 1000W Location Fresnel
- Product category: Tungsten Lights ARRI
- Brand: ARRI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ARRI Tungsten Lights
|
User manual for the ARRI T1 1000W Location Fresnel contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ARRI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ARRI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ARRI product will considerably shorten its lifespan!
|
Product description The ARRI T1 1000W Location Fresnel is an updated version of the Compact Series of location Fresnels. Combining research and feedback from around the world and advances in technology, ARRI has designed a series of six Fresnels with over 30 improvements for studio and location lighting. The True Blue Series has reduced weight, compact size, and maximum light output. ARRI's cross-cooling system reduces lamp housing temperature by 25% and lens temperature by 17%. With special air channels built into the aluminum extrusion, a constant stream of air passes around the Fresnel lens and into the lamp head regardless of the tilt angle. When fitted with a 1000-watt bulb (available separately), this fixture will provide a 2.8' (0.9 m) diameter beam of 409 fc from a distance of 20' (6.1 m) at full spot. At full flood (same distance), it will provide a 48 fc with a 20.4' (6.2 m) diameter beam. - Stronger, Lighter
-
- Pressure die cast and extruded aluminum components
- Many components now offer greater strength and resistance to corrosion
- Redesigned Stirrup
-
- Stirrup mounting slides and can be adjusted to counterbalance all accessories
- Soft contour makes the Fresnel comfortable to carry
- The stainless steel friction disc locks securely even when large front-mounted accessories are being used
- Easy Maintenance
-
- Routine maintenance and repair are easier with fast, simple access to all internal components
- Cleaning is almost effortless with smooth lamp housing surfaces
- Safe
-
- Meets IP23 standard; suitable for indoor or outdoor use providing a degree of protection against falling rain (up to a 60° angle from vertical)
- CE rated and independently assessed TUV certification
- Laser-cut hexagonal safety mesh lets out more light and is tough enough to withstand location abuse
In the Box ARRI T1 1000W Location Fresnel (Hanging, 120-240 VAC) Power Cable, Without Switch, Bare Leads (36") Mega Swivel Pipe Clamp with Bolt ecszqfxydxtzdxrd Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ARRI T1 1000W Location Fresnel in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersARRI T1 Specs | Rating | 1000 W, 120-240 VAC | | Socket (Lampholder) | G22 bi-pin | | Lens (Condenser) | 6.8" / 175 mm, low expansion borosilicate Fresnel lens | | Reflector (Mirror) | Spherical specular high purity aluminum | | Mounting | Included clamp | | Yoke | Tubular | | Cable | 36' / 0.9 m, no switch, bare leads | | Focusing | Front and rear mounted knobs | | Weight | 10.1 lb / 4.6 kg | | Dimensions | 16.8 x 11.4 x 8.8" / 42.7 x 29 x 22.4 cm (including yoke and mount) | | | | Package Weight | 13.65 lb | | Box Dimensions (LxWxH) | 15.6 x 15.5 x 13.3" |
