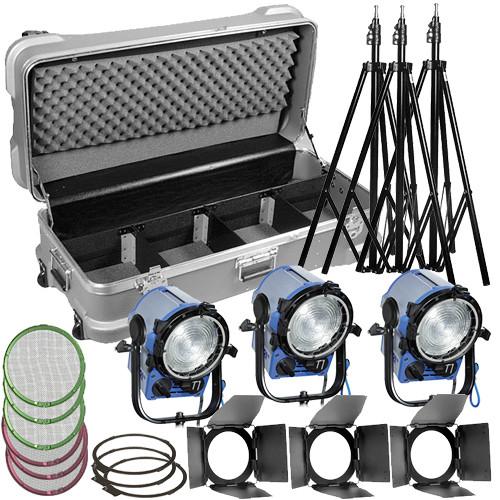

User Manual for ARRI T1 Fresnel 1000W 3-Light Kit Click to enlarge the picture
Contents of the user manual for the ARRI T1 Fresnel 1000W 3-Light Kit
- Product category: Tungsten Lights ARRI
- Brand: ARRI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ARRI Tungsten Lights
|
User manual for the ARRI T1 Fresnel 1000W 3-Light Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ARRI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ARRI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ARRI product will considerably shorten its lifespan!
|
Product description The ARRI T1 Fresnel 1000W 3-Light Kit (220V) is a solid basic lighting kit: it delivers three T1 1000W Fresnel lights (well-known for its rugged construction, compact size, light weight, and its smooth focusing mechanism), plus light stands, barndoors, filter frames, scrims (full single and full double), lamps for each fixture, an accessory pack (containing ditty bag, clothes pins, leather gloves, bulb storage box, and an extension cord with 3 outlets), and a heavy-duty rolling case for safely storing and transporting the whole kit. The T1 Fresnel is an updated version of the ARRI compact location Fresnel. It's truly compact with reduced weight and maximum light output, and it has more than 30 improvements for studio and location lighting. The cross-cooling system reduces lamp housing temperature by 25% and lens temperature by 17%. With special air channels built into the aluminum extrusion, a constant stream of air passes around the Fresnel lens and into the lamp head regardless of the tilt angle. When fitted with the included 1000W bulb, this fixture gives you a 2.8' (0.9m) diameter beam of 409 fc from a distance of 20' (6.1m) at full spot. At full flood (same distance), it will provide a 48 fc, 20.4' (6.2m) diameter beam. This kit is supplied for use with 220 VAC. - Stronger and Lighter
-
- Many components now offer greater strength and resistance to corrosion
- Redesigned Stirrup
-
- Stirrup mounting slides and is adjustable to counterbalance accessories
- Soft contour makes the Fresnel comfortable to carry
- The stainless steel friction disc locks securely even when large front-mounted accessories are being used
- Easy Maintenance
-
- Fast, simple access to all internal components
- Smooth lamp housing surfaces make cleaning a snap
- Safe
-
- Meets IP23 standard: suitable for indoor or outdoor use providing a degree of protection against falling rain (up to a 60° angle from vertical)
- CE rated and independently assessed TUV certification
In the Box ARRI T1 Fresnel 1000W 3-Light Kit (220V) 3 x 1000W T1 Location Fresnel with Stand Mount (120-240 VAC) yqaywsvwcd 3 x 4-Leaf Barndoor Set for ARRI T1 Fresnel 3 x Filter Frame for 1K Fresnel, Compact HMI 575W 3 x Full Single Scrim for 1K Fresnel, Arrisun 5 PAR, Compact HMI 575W (7 3/4") 3 x Full Double Scrim for 1K Fresnel, Arrisun 5 PAR, Compact HMI 575W (7 3/4") 3 x FKJ (CP/71) (1,000W / 230V) Lamp 3 x AS-2 Lightweight Light Stand (8.5') Accessory Pack for Fresnel Lights 571197 Heavy-duty Location Case Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ARRI T1 Fresnel 1000W 3-Light Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersARRI T1 Specs | Rating | 1000 W, 120-240 VAC | | Socket (Lampholder) | G22 bi-pin | | Lens (Condenser) | 5.9" / 150 mm low expansion borosilicate Fresnel lens | | Reflector (Mirror) | Spherical specular high purity aluminum | | Mounting | 5/8" Baby spigot | | Yoke | Tubular | | Cable | 10' / 3 m, power cable, switch, Edison plug | | Focusing | Front and rear mounted knobs | | Weight | 10.1 lb / 4.6 kg | | Dimensions | 16.8 x 11.4 x 8.8" / 42.7 x 29 x 22.4 cm (including yoke and mount) | | | | Package Weight | 97.5 lb | | Box Dimensions (LxWxH) | 42.0 x 21.0 x 15.0" |
