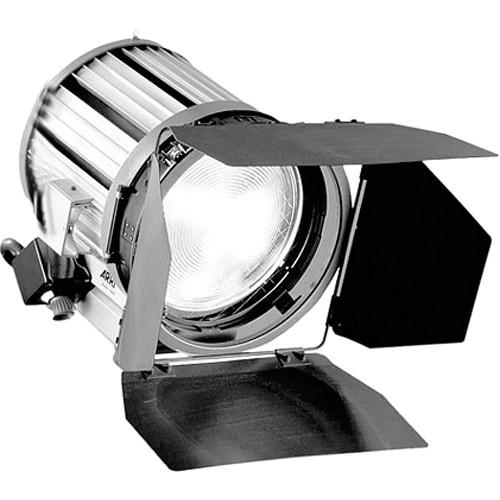

User Manual for ARRI T12 12,000W Fresnel Click to enlarge the picture
Contents of the user manual for the ARRI T12 12,000W Fresnel
- Product category: Tungsten Lights ARRI
- Brand: ARRI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ARRI Tungsten Lights
|
User manual for the ARRI T12 12,000W Fresnel contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ARRI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ARRI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ARRI product will considerably shorten its lifespan!
|
Product description This version of the ARRI T12 12,000W Fresnel light allows the use of a 12,000 watt lamp, as well as the 10,000 watt lamp. Lamps must be purchased separately. It comes in three versions each set up for operation with either 120V or 220V A/C power. Beam angles are 54 degrees in the flood position and 13 degrees in the spot position. - Larger lens
- The light features a 16.7" (425mm) lens and has a 1-1/8" male stand mount
- Three versions
- Available in a stand mount, hanging or pole operated model
- Lamp specifications
- Uses 10,000W and 12,000W lamps
In the Box ARRI T12 12,000W Fresnel (Stand Mount, 120VAC) 1 Year Manufacturer's Warranty Note: Bulb not included Table of Contents
|
Upload User Manual
Have you got an user manual for the ARRI T12 12,000W Fresnel in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersARRI T12 Specs | Ratings | 12,000 W | | Socket (Lampholder) | G38 | | Lens (Condenser) | 16.7" (425mm) low expansion borosillicate Fresnel lens | | Reflector (Mirror) | Spherical, specular, high purity aluminum | | Mounting | 1-1/8" (29 mm) stand mount or hanging model with pipe clamp and 2.5' cable | | Yoke | Attaches only to 1-1/8" receivers on larger studio stands | | Cable | 5.0' (1.5 m) Cable, no switch, bare ends | | Focusing | Worm gear driven | | Weight | 63 lb (28.5 kg) | | Dimensions | 28 x 37.75 x 21.5" (711 x 959 x 546 mm) | | | | Package Weight | 78.9 lb | | Box Dimensions (LxWxH) | 31.0 x 29.0 x 27.6" |
