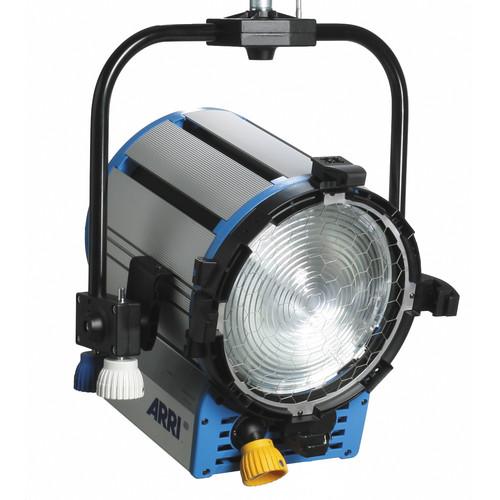

User Manual for ARRI T5 5000W Fresnel Click to enlarge the picture
Contents of the user manual for the ARRI T5 5000W Fresnel
- Product category: Tungsten Lights ARRI
- Brand: ARRI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ARRI Tungsten Lights
|
User manual for the ARRI T5 5000W Fresnel contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ARRI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ARRI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ARRI product will considerably shorten its lifespan!
|
Product description The ARRI T5 5000W Fresnel (Pole-Operated, 100-240 VAC) is one of ARRI's improved True Blue Fresnel lampheads (lamp not included), designed to be operated from a pole (not included). In addition to the established reliability of ARRI lights, this updated compact fixture has pressure die-cast and extruded aluminum components to reduce the overall weight of the fixture while increasing strength and resistance to corrosion. Using air channels built into the aluminum extrusion, ARRI's cross-cooling system reduces lamp housing temperature by 25% and the lens temperature by 17%. A redesigned stirrup and tilt lock greatly improve mounting and tilting operation of the lamphead. A stainless-steel friction disc in the tilt lock means that even when using the largest softbox or other accessory on the lamphead, the head is securely locked into place, and the Stegmaier cable connector relieves strain by allowing the cable orientation to be adjusted quickly by rotating the connector. Maintenance and repair have also been greatly simplified with quick and easy access to all of the internal components. Last, but not least, the smooth surfaces of the housing make cleaning this fixture a piece of cake. - A cross-cooling system reduces lamp housing temperature by 25% and lens temperature by 17%
- Overall weight has been reduced using pressure die cast and extruded aluminum components
- A redesigned stirrup and improved tilt lock (including a stainless steel friction disc) lock the lamphead securely with a minimum of force, even with the largest softbox or other accessories
- The extruded aluminum stirrup is stronger, lighter, and less bulky but still permits full fixture rotation
In the Box ARRI T5 5000W Fresnel (Pole Operated, 100-240 VAC) Junior Pipe Clamp Power Cable (36") Limited 1-Year Warranty Note: Lamp Not Included
Pole Not Included Table of Contents
|
Upload User Manual
Have you got an user manual for the ARRI T5 5000W Fresnel in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersARRI T5 Specs | Rating | 5000 W | | Socket (Lampholder) | G22/38 | | Lens (Condenser) | 10" / 250 mm, low-expansion borosilicate Fresnel lens | | Reflector (Mirror) | Spherical specular high-purity aluminum | | Mounting | Included clamp | | Cable | 36" / 0.9 m, no switch, bare leads | | Weight | 27.7 lb / 12.6 kg | | Dimensions | 18.25 x 25.75 x 15.37" / 46.35 x 65.4 x 39 cm | | | | Package Weight | 38.8 lb | | Box Dimensions (LxWxH) | 21.5 x 20.0 x 19.0" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 72 owners. Add your rating and experience with the product.
