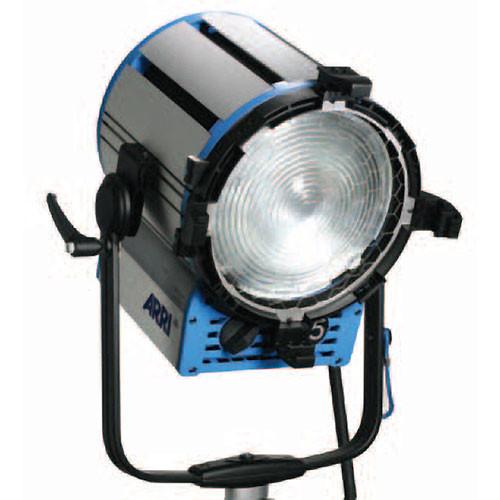

User Manual for ARRI T5 5000W Location Fresnel with Stand Mount Click to enlarge the picture
Contents of the user manual for the ARRI T5 5000W Location Fresnel with
- Product category: Tungsten Lights ARRI
- Brand: ARRI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ARRI Tungsten Lights
|
User manual for the ARRI T5 5000W Location Fresnel with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ARRI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ARRI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ARRI product will considerably shorten its lifespan!
|
Product description The ARRI T5 Location Fresnel is one in a series that represents an evolution of the Studio and Location fixtures that have been popular workhorses for over two decades. Following extensive research and feedback from lighting professionals around the world, combined with advances in technology, ARRI has designed a series of six lampheads with over 30 improvements for studio and location lighting. With reduced weight, compact size, and maximum light output True Blues set a new standard for professional lighting equipment. ARRI's cross-cooling system reduces lamp housing temperature by 25% and lens temperature by 17%. With special air channels built into the aluminium extrusion, a constant stream of air passes around the Fresnel lens and into the lamphead regardless of the tilt angle. When fitted with a 5000-watt bulb (available separately), this fixture will provide a 8.6' (2.6 m) diameter beam of 319 fc from a distance of 39.6' (12 m) at full spot. At full flood (same distance), it will provide an 86 fc beam 37.6' (11.4 m) in diameter. - Stronger, Lighter
-
- Pressure die cast and extruded aluminum components have reduced the overall weight of True Blue fixtures without any sacrifice in quality or durability
- Many components now offer greater strength and resistance to corrosion
- Redesigned Stirrup
-
- Stirrup mounting slides and can be adjusted to counterbalance all accessories
- Extruded aluminum is stronger, lighter and less bulky but still permits full fixture rotation
- Soft contour makes it comfortable to carry
- The stainless steel friction disc locks the lamphead securely even with the largest Chimera or other accessories
- Easy Maintenenace
-
- Routine maintenance and repair are easier with fast, simple access to all internal components
- Cleaning is made effortless with smooth lamp housing surfaces
- Safe
-
- Meets IP23 standard; suitable for indoor or outdoor use providing a degree of protection against falling rain (up to a 60° angle from vertical)
- CE declaration and independently assessed TUV certification
- The laser cut hexagonal safety mesh maximizes light transmission and is tough enough to withstand location abuse
In the Box ARRI T5 5000W Location Fresnel with Stand Mount (120-230 VAC) 10' (3 m) Power Cable, No Plug Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ARRI T5 5000W Location Fresnel with Stand Mount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersARRI T5 Specs | Rating | 5000 W, 120-230 VAC | | Socket (Lampholder) | G38 bi-pin | | Lens (Condenser) | 10" / 250 mm, low expansion borosilicate Fresnel lens | | Reflector (Mirror) | Spherical specular high purity aluminum | | Mounting | 1 1/8" Junior spigot | | Yoke | Tubular | | Cable | 10' / 3 m, power cable, no plug | | Focusing | Front and rear mounted knobs | | Weight | 25.5 lb / 11.6 kg | | Dimensions | 25.75 x 11 x 15.4" / 65.5 x 27.8 x 39 cm (including yoke and mount) | | | | Package Weight | 35.65 lb | | Box Dimensions (LxWxH) | 22.0 x 21.0 x 21.0" |
