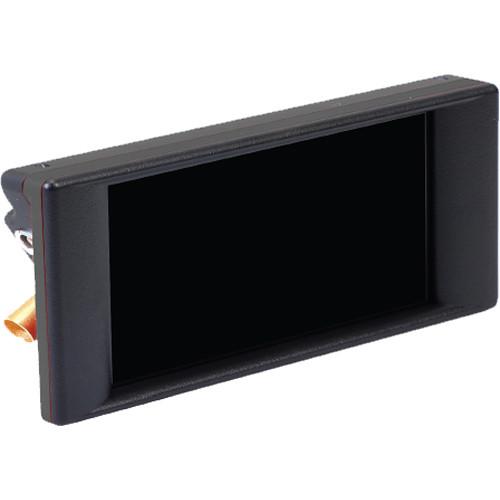

User Manual for ARRI Transvideo StarliteHD5-ARRI 5" OLED Monitor with ARRI Bus Interface Click to enlarge the picture
Contents of the user manual for the ARRI Transvideo StarliteHD5-ARRI 5" OLED Monitor
- Product category: On Camera Monitors ARRI
- Brand: ARRI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ARRI On Camera Monitors
|
User manual for the ARRI Transvideo StarliteHD5-ARRI 5" OLED Monitor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ARRI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ARRI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ARRI product will considerably shorten its lifespan!
|
Product description The innovative Transvideo StarliteHD5-ARRI from ARRI is a combination monitor/recorder offering touchscreen control of your ALEXA Mini, or AMIRA camera. This 5" OLED monitor records in H.264, provides 3G/HD/SD-SDI input and output, and is compatible with ARRI LDS, Cooke /i, and ZEISS eXtended lens metadata.StarliteHD5-ARRI features include SD card recording, playback, a snapshot feature, image flip, reverse mode, PDF-report generation, and 1.3x and 2x anamorphic de-squeeze functions. Peaking, and a 1:1 pixel-to-pixel zoom can be used to check your focus. Display tools include a dynamic zoom zone, and smart corner-assignable waveform, histogram, and vectorscope functions.The StarliteHD5-ARRI's connectors are placed at an angle, enabling them to remain recessed behind the monitor's clean, rectangular outer edge. An articulated arm, power/data cable, 3' BNC cable, and hard carrying case are included with the monitor. Note: The included straight power/communications cable (K2.0008663) must be used with the Starlite HD5-ARRI. Using other cables may damage the product. -
- Touchscreen camera control for ALEXA Mini and AMIRA cameras
- Internal H.264 recording with MP4 conversion option and SD card slot
- Compatible with ARRI LDS, Cooke /i, and ZEISS eXtended lens metadata
- Snapshot, image flip, reverse, and PDF-report features
- 1.3x and 2x anamorphic de-squeeze
- Assignable smart corners with waveform, histogram, and vectorscope
- Focus features include 1:1 pixel-to-pixel zoom and peaking
- Includes an articulated arm, power/data cable, 3' BNC cable, and hard carrying case
In the Box ARRI Transvideo StarliteHD5-ARRI 5" OLED Monitor with ARRI Bus Interface Cable StarliteHD5-ARRI EXT (Straight) 4.5 GHz 3G-SDI BNC to BNC Cable (3.3') Mini 3D Swing Arm for ARRI Camera SD Card (Class 10) Microfiber Pouch Hard Carrying Case Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ARRI Transvideo StarliteHD5-ARRI 5" OLED Monitor with ARRI Bus Interface in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersARRI StarliteHD5 Specs | | | Video In | 3G/HD/SD-SDI: 1 x BNC | | Video Out | 3G/HD/SD-SDI: 1 x BNC (reclocked) | | Supported Video Standards | 3G:
1080p: 60/50
HD:
1080p: 30/25/24
1080PsF: 25/24
1080i: 60/50
720p: 60/50/30/25
SD:
525: 60i
625: 50i | | Recording Codec | H.264 | | | | Display Panel | 5" AMOLED touchscreen | | Pixels | 1280 x 720 | | Contrast Ratio | 3400:1 | | Viewing Angle (H x V) |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 36 owners. Add your rating and experience with the product.
