User Manual for ARRI TRINITY Upgrade for artemis 3B, 2.5", Basic Set Click to enlarge the picture
Contents of the user manual for the ARRI TRINITY Upgrade for artemis 3B,
- Product category: See All Gimbal Stabilizers ARRI
- Brand: ARRI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ARRI See All Gimbal Stabilizers
 |
User manual for the ARRI TRINITY Upgrade for artemis 3B, contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ARRI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ARRI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ARRI product will considerably shorten its lifespan!
|
Product description The Gold mount ARRI TRINITY Upgrade for artemis 3B, 2.5" enables you to transform your existing artemis stabilizer into a five-axis TRINITY system. Upgrade elements include the two-axis head, the battery hanger unit, high-capacity wiring, and two Gold mount battery plates. This bundle is compatible with an artemis system with a 1.8" post, a 3B main cable, and wide (2.5") docking rings.TRINITY features include 32-bit ARM-based active electronic stabilization, a 66 lb load capacity, and joystick tilt control. Access up to five head presets using a single knob set near the monitor mount (monitor available separately). A pendulum on the TRINITY battery hanger enables smooth drop-down movements from any angle.Use this combo stabilizer to create wide-ranging, revealing shots with high-to-low or vice versa moves. When held at a 45° angle and twisted left or right, TRINITY can even be used to peek around corners. While the compact TRINITY system is optimized for use with the ARRI ALEXA Mini, it easily adjusts to accommodate larger cameras and lenses combinations. The TRINITY's center post extends from approximately 17-28", and offers 0.86" of fine trim.With additional plates, up to four long-lasting Gold mount batteries can be attached to TRINITY, offering time-saving hot-swapping ability. TRINITY's high-capacity 12/24V wiring accommodates a wide range of cameras and provides power for video, focus systems, and accessories. Note: No monitor is included with the Upgrade Basic Set; the ARRI Starlite K2.0006960 must be ordered separately. If the SmallHD 5" monitor is used, the K0.0019500 TRINITY Monitor Mount for SmallHD must be ordered separately. - Features
-
- Transforms your existing artemis stabilizer into a five-axis TRINITY system
- Combines mechanical stabilization with 32-bit ARM-based active electric stabilization
- The pendulum component on the battery hanger ensures smooth drop-down moves from any angle
- High-capacity 12/24V wiring accommodates a wide range of cameras and accessories
- Hot-swap Gold mount battery technology minimizes shooting interruptions
- Comprehensive camera and accessory options including USB, D-Tap, video power, focus power, and auxiliary power outputs
- A tally system offers quick visual confirmation of your camera status

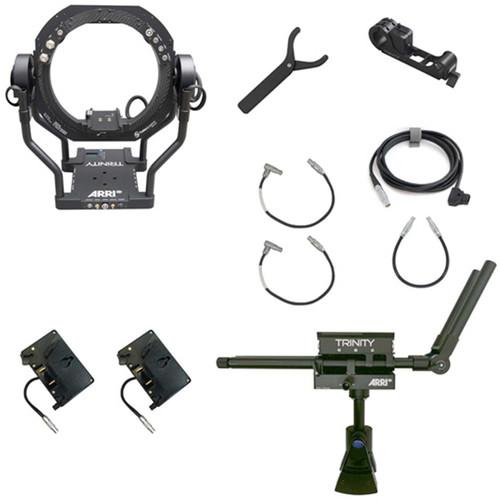

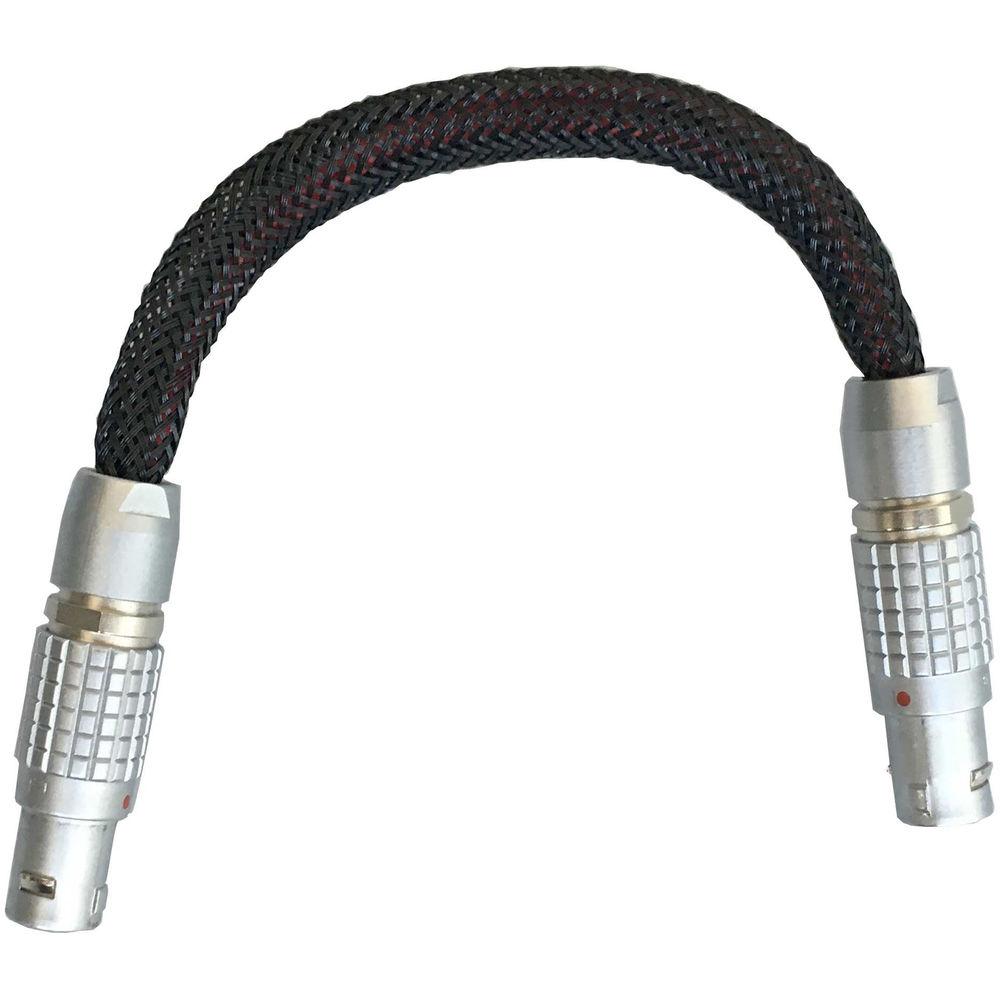

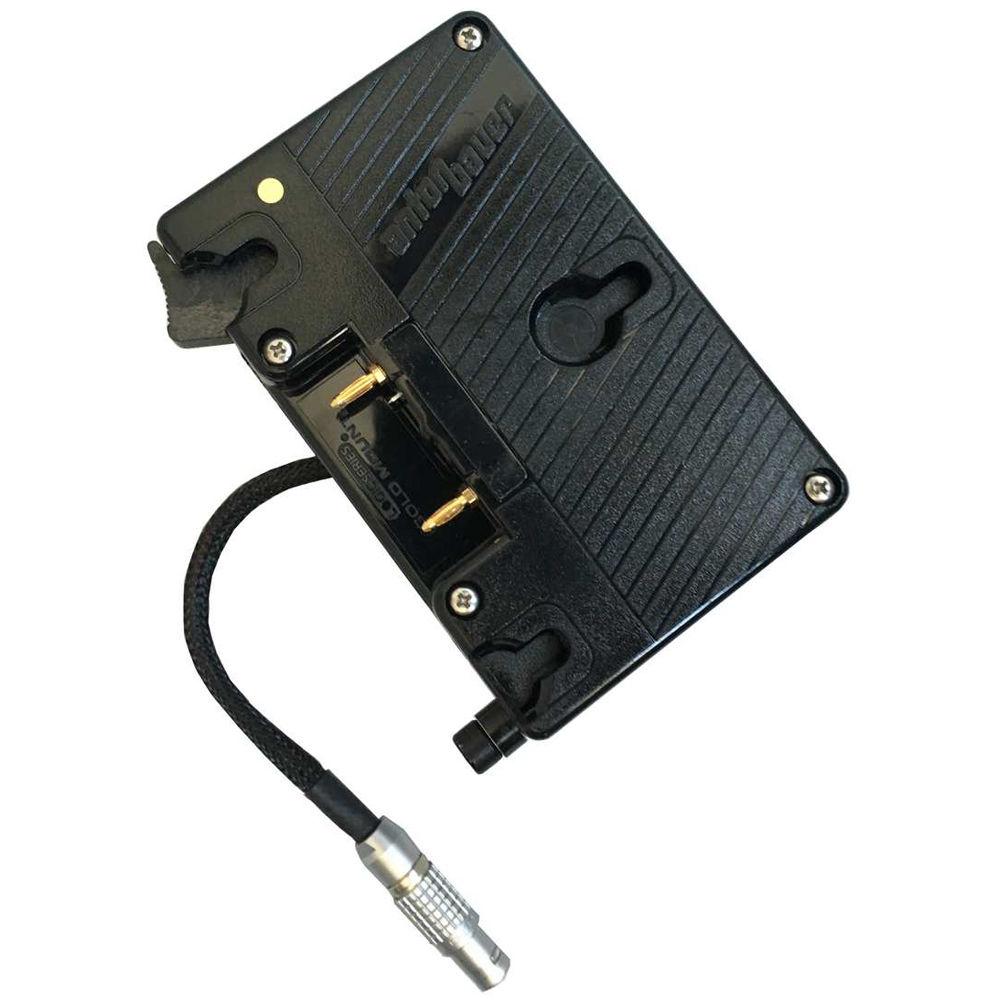

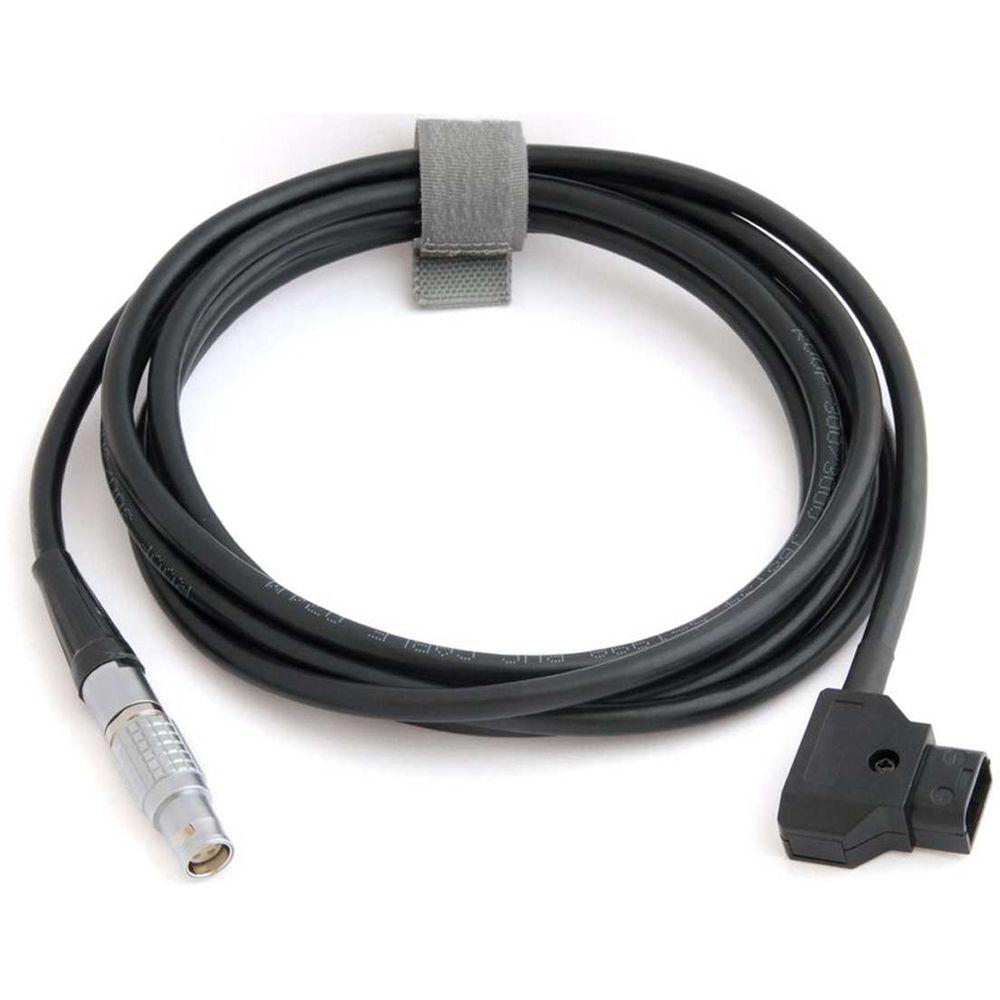

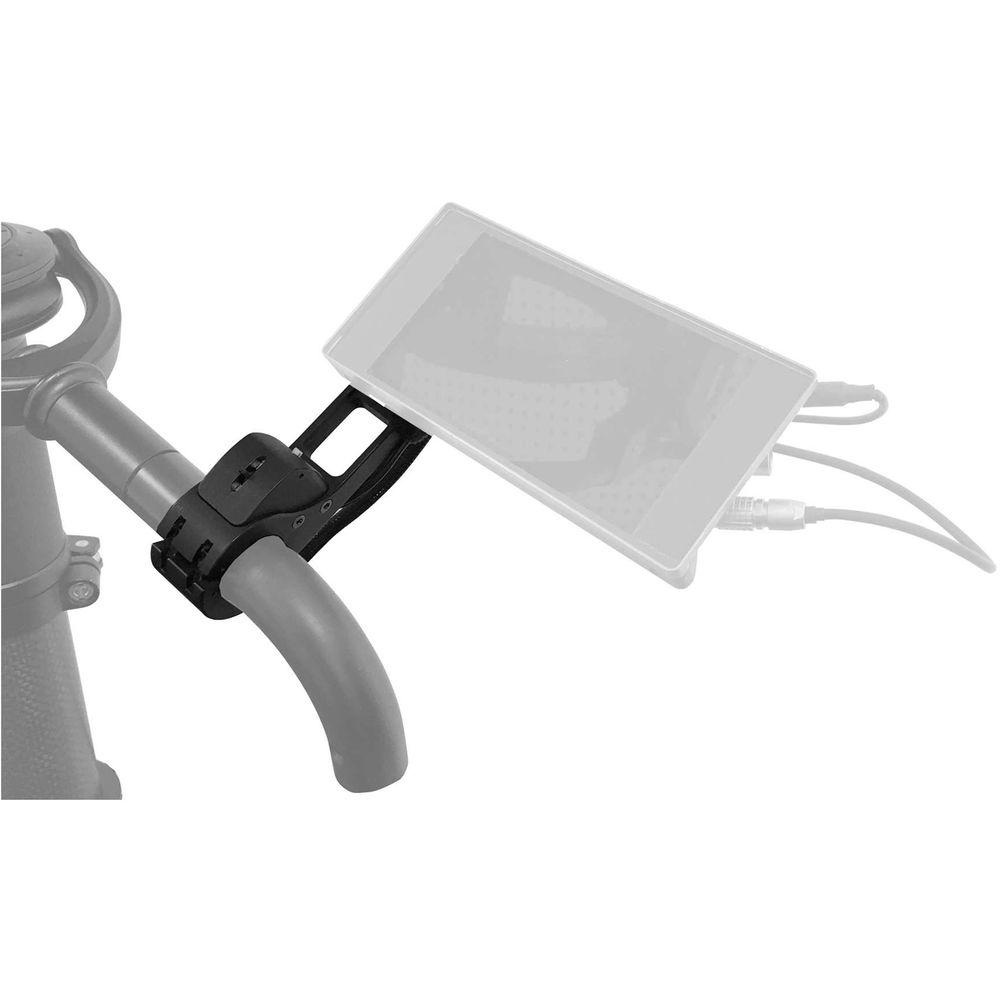

In the Box ARRI TRINITY Upgrade for artemis 3B, 2.5", Basic Set (Gold Mount) TRINITY Upgrade Bundle 3B, 2.5" TRINITY Joystick Monitor Mount 2 x TRINITY Battery Mount (Gold Mount) TRINITY Power Cable, LEMO 1B 4-Pin to 1B 4-Pin TRINITY Power Cable, LEMO 1S 3-Pin to 1B 4-Pin TRINITY Power Cable, D-Tap to LEMO 1S 3-Pin Post Tool for artemis and TRINITY Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ARRI TRINITY Upgrade for artemis 3B, 2.5", Basic Set in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersARRI Trinity Specs | | | Number of Axes | 2-Axis (Pitch, Roll)
3-Axis (Yaw, Horizontal, Vertical) | | Load Capacity | 66.14 lb / 30 kg | | | | Ports | 1 x 6-Pin LEMO 0B (Control) Output
2 x HD-SDI (BNC) (Video) Output
1 x 4-Pin LEMO 1B (12 VDC Power) Output
1 x 4-Pin LEMO 0S (12 VDC Power) Output
1 x 3-Pin LEMO 0S (12 VDC Power)
1 x CAN (Control) Output
2 x HD-SDI (BNC) (Video) Output
1 x 5-Pin LEMO (Control) Output
1 x USB Mini-B Input
1 x 4-Pin LEMO 1S (12 VDC Power) Input
1 x 7-Pin LEMO (Control) Output
1 x 5-Pin LEMO (12 VDC Power) Output
1 x 4-Pin LEMO 1B (Power) Output
4 x 2-Pin LEMO (Power) Input
1 x 4-Pin LEMO 0B (Power) Output
1 x 2-Pin LEMO (12 VDC Power) Output
1 x 4-Pin LEMO 1B (12 VDC Power) Output 1 x LBUS port is provided for future use. Do NOT connect any cables to the LBUS port until your TRINITY has been updated to LBUS. | | | | Operating Voltage | 12.0 to 24.0 VDC |
