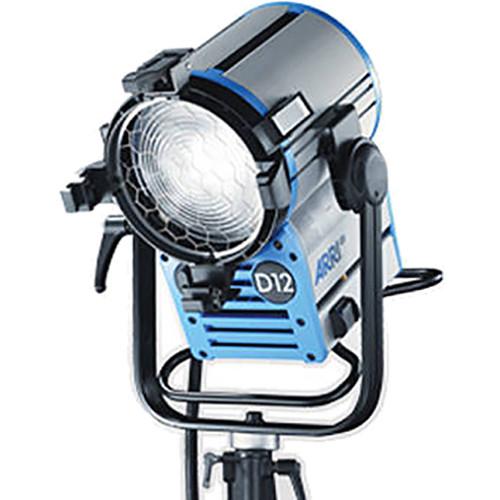

Product description The Arri True Blue D12 HMI System features the D12 1200 watt HMI fixture with a 7" fresnel lens, a 575/1200W electronic ballast with an Active Line Filter and DMX support, a four-leaf barndoor, a filter frame, and a 50' head to ballast cable. This is a multi-voltage lighting system capable of working between 90-250 VAC. Also the ballast has AFL for less noise and color fluctuations as well as DMX-50 protocol support. The barndoor and filter frame can be used for easily modifying your light and the system has a 50' head to ballast cable for versatility. - True Blue D12 HMI 1200W Fresnel Head Part of Arri's True Blue series, the D12 HMI 1200W Fresnel Head stays true to its Arri roots with its compact size, while reducing weight and maximizing light output. True Blue heads also feature a new cross-cooling system--lamp housing temp is reduced 25%; lens temp, 17%. A redesigned stirrup and improved tilt lock make using Chimera or similar light modifiers a breeze.
- New cross-cooling system reduces lamp housing and lens temperature
- Redesigned stirrup and improved tilt lock for ease of using light modifiers
- EB 575/1200W Ballast with ALF and DMX (90-250 VAC) The 90-250 VAC ARRI EB 575/1200W Ballast with ALF and DMX is a multi-voltage, dual-power 575-1200W electronic ballast for ARRI HMI lights. It features Automatic Line Filtering. ALF provides a higher Power Factor resulting in more efficient power use. This is accomplished by shifting the voltage and current waveforms in phase and minimizing harmonics and spikes. ALF also minimizes the current carried back on the neutral leg of the power systems. The ballast has integrated DMX protocol for use with appropriate control boards and dimmer packs.
- Quiet operation, flicker free, and dimmer control.
- 4-Leaf Barndoor Set for ST-1, 1.2Kw HMI Fixtures This is an ARRI 4-Leaf Barndoor Set for the ST-1 Fresnel and 1.2Kw HMI fixtures. Barndoors attach to the front of a light and are used to restrict light from areas of a set. ARRI barndoors are heat resistant and rotatable.
- Filter Frame for Fresnels Arri Filter Frames are circular and heat resistant. Filters can be cut and sandwiched into them, and they slide into lamphead accessory holders. Sizes are a little bit larger than the fresnels.
- Head to Ballast Cable 575/1200/1800W - 50' This is an ARRI Head to Ballast Cable. The 50' (15.2 m) long cable is compatible with 575, 1200 and 1800W heads such as the ARRISUN 5, 12 Plus, 18, and 40/25 heads. It's also compatible with the ARRIMAX M18, the ARRI X X5 and X12, D5 and D12 Fresnels and the Compact 575 and 1200 heads.
In the Box Bundle Items True Blue D12 HMI 1200W Fresnel Head cvbewbczsfwzxu EB 575/1200W Ballast with ALF and DMX (90-250 VAC) 4-Leaf Barndoor Set for ST-1, 1.2Kw HMI Fixtures Filter Frame for Fresnels Head to Ballast Cable 575/1200/1800W - 50' - One Year Manufacturer's Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the ARRI True Blue D12 HMI System with 575 1200W ALF & DMX Ballast in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - True Blue D12 HMI 1200W Fresnel Head
| Rating | 1200 W | | Socket (Lampholder) | G38 High Voltage | | Lens (Condenser) | 6.9" (175 mm) low expansion borosilicate Fresnel lens | | Mounting | 1 1/8" (28 mm) Spigot | | Weight | 22 lb (10 kg) | | Dimensions | 25.37 x 14.75 x 12.75" (64.4 x 37.4 x 32.5 cm) | | | | Box Dimensions (LxWxH) | 18.25 x 16.0 x 16.0" | - EB 575/1200W Ballast with ALF and DMX (90-250 VAC)
| Lamp Power | 575 - 1200 W | | Input Voltage | 90 - 250 VAC | | Dimmer | Yes | | Weight | 15.4 lb (7 kg) | | Dimensions | 5.9 x 7.9 x 11.8" (15 x 20 x 30 cm) | | | | Box Dimensions (LxWxH) | 18.0 x 15.0 x 11.0" | - 4-Leaf Barndoor Set for ST-1, 1.2Kw HMI Fixtures
| | | Box Dimensions (LxWxH) | 15.0 x 12.55 x 2.45" | - Filter Frame for Fresnels
| | | Box Dimensions (LxWxH) | 9.6 x 9.1 x 0.2" | - Head to Ballast Cable 575/1200/1800W - 50'
| | | Box Dimensions (LxWxH) | 20.0 x 20.0 x 5.0" |
