User Manual for ARRI True Blue D12 HMI System with 575 1200W DMX Ballast Click to enlarge the picture
Contents of the user manual for the ARRI True Blue D12 HMI System
- Product category: HMI & Plasma Lights ARRI
- Brand: ARRI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ARRI HMI & Plasma Lights
|
User manual for the ARRI True Blue D12 HMI System contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ARRI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ARRI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ARRI product will considerably shorten its lifespan!
|

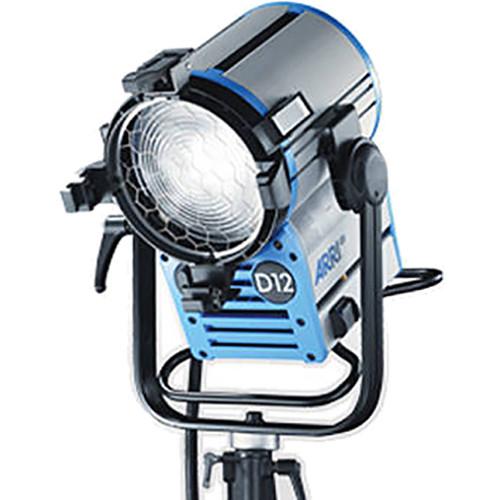

Product description The Arri True Blue D12 HMI System features the D12 1200 watt daylight-balanced HMI fixture with a 7" fresnel lens, a 575/1200W electronic ballast with DMX support, a four-leaf barndoor, a filter frame, and a 50' head to ballast cable. This is a multi-voltage lighting system capable of working between 90-250 VAC. Also the ballast has DMX-50 protocol support. The barndoor and filter frame can be used for easily modifying your light and the system has a 50' head to ballast cable for versatility. - True Blue D12 HMI 1200W Fresnel Head Part of Arri's True Blue series, the D12 HMI 1200W Fresnel Head stays true to its Arri roots with its compact size, while reducing weight and maximizing light output. True Blue heads also feature a new cross-cooling system--lamp housing temp is reduced 25%; lens temp, 17%. A redesigned stirrup and improved tilt lock make using Chimera or similar light modifiers a breeze.
- New cross-cooling system reduces lamp housing and lens temperature
- Redesigned stirrup and improved tilt lock for ease of using light modifiers
- 575/1200W Electronic Ballast with DMX (120-220 VAC) This Arri 575/1200W Electronic Ballast with DMX works with 120-220 VAC. It has on-board dimming, as well as DMX dimming control capabilities. It is compatible with the Arri 575, 1.2K HMI Compact Fresnels, Arri-X 5, Arrisun 5 and 12 HMI PAR fixtures.
- Perfect for Video Applications
-
- Offers flicker-free operation
- Enables a shutter speed of 10,000 frames per second
- Dimmable
-
- On-board dimming
- Works with your DMX control system
- No Color Shift While Dimming
- The current limiter reduces light output by half but raises color temperature, eliminating the need to correct color temperature with color correcting gels
4-Leaf Barndoor Set for ST-1, 1.2Kw HMI Fixtures This is an ARRI 4-Leaf Barndoor Set for the ST-1 Fresnel and 1.2Kw HMI fixtures. Barndoors attach to the front of a light and are used to restrict light from areas of a set. ARRI barndoors are heat resistant and rotatable. Filter Frame for Fresnels Arri Filter Frames are circular and heat resistant. Filters can be cut and sandwiched into them, and they slide into lamphead accessory holders. Sizes are a little bit larger than the fresnels. Head to Ballast Cable 575/1200/1800W - 50' This is an ARRI Head to Ballast Cable. The 50' (15.2 m) long cable is compatible with 575, 1200 and 1800W heads such as the ARRISUN 5, 12 Plus, 18, and 40/25 heads. It's also compatible with the ARRIMAX M18, the ARRI X X5 and X12, D5 and D12 Fresnels and the Compact 575 and 1200 heads. In the Box Bundle Items True Blue D12 HMI 1200W Fresnel Head rdyvxfxxsevwfddsu 575/1200W Electronic Ballast with DMX (120-220 VAC) 4-Leaf Barndoor Set for ST-1, 1.2Kw HMI Fixtures Filter Frame for Fresnels Head to Ballast Cable 575/1200/1800W - 50' - One Year Manufacturer's Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the ARRI True Blue D12 HMI System with 575 1200W DMX Ballast in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - True Blue D12 HMI 1200W Fresnel Head
| Rating | 1200 W | | Socket (Lampholder) | G38 High Voltage | | Lens (Condenser) | 6.9" (175 mm) low expansion borosilicate Fresnel lens | | Mounting | 1 1/8" (28 mm) Spigot | | Weight | 22 lb (10 kg) | | Dimensions | 25.37 x 14.75 x 12.75" (64.4 x 37.4 x 32.5 cm) | | | | Box Dimensions (LxWxH) | 18.25 x 16.0 x 16.0" | - 575/1200W Electronic Ballast with DMX (120-220 VAC)
| Lamp Power | 575 - 1200 W | | Input Voltage | 120 - 220 VAC | | Dimmer | On-board
DMX control possible | | Weight | 15.4 lb (7 kg) | | Dimensions | 5.9 x 7.9 x 11.8" (15 x 20.1 x 30 cm) | | | | Box Dimensions (LxWxH) | 18.3 x 13.5 x 11.0" | - 4-Leaf Barndoor Set for ST-1, 1.2Kw HMI Fixtures
| | | Box Dimensions (LxWxH) | 15.0 x 12.55 x 2.45" | - Filter Frame for Fresnels
| | | Box Dimensions (LxWxH) | 9.6 x 9.1 x 0.2" | - Head to Ballast Cable 575/1200/1800W - 50'
| | | Box Dimensions (LxWxH) | 20.0 x 20.0 x 5.0" |
