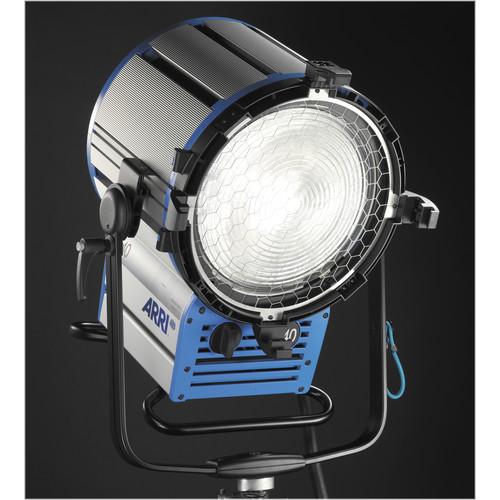

User Manual for ARRI True Blue D40 4000W HMI Fresnel Click to enlarge the picture
Contents of the user manual for the ARRI True Blue D40 4000W HMI
- Product category: HMI & Plasma Lights ARRI
- Brand: ARRI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ARRI HMI & Plasma Lights
|
User manual for the ARRI True Blue D40 4000W HMI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ARRI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ARRI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ARRI product will considerably shorten its lifespan!
|
Product description This black True Blue D40 4000W HMI Fresnel from ARRI is the largest fixture in the completely redesigned True Blue series. The 11.8" Fresnel with a beam angle variable from 6.5-59° is protected with stainless steel mesh. Pressure die-cast and extruded aluminum alloy components make the D40 lighter without sacrificing strength while improving corrosion resistance. Since front-heavy accessories like large softboxes are routinely used, ARRI has incorporated a sliding stirrup that allows you to find the light's center of gravity based on the weight of the accessory. A disc brake-type tilt-lock secures the head at the chosen angle with minimal force. Cross cooling channels the air through the housing so effectively the D40 can be used at almost any angle. Accessory brackets, a problem in the past, are now adjustable to hold 2 or 4 scrims or filter frames to eliminate light leaks. You can also use the D40 rain or shine thanks to improved IP23-rated weather protection. - Cross Cooling
- ARRI's Cross-Cooling system moves a stream of air around the Fresnel lens and through the lamphead. In addition, air is channeled through the extruded aluminum alloy housing, reducing lens and housing temperatures. Cross cooling allows ARRI True Blues to safely operate at almost any tilt-angle
- Adjustable Accessory Brackets
- Location crews need space in the accessory bracket for up to four scrims; studio crews suffer from the light leak this creates. Now two-position True Blue adjustable accessory brackets quickly accommodate two or four scrims. By reducing the space between the scrims and the lens, unwanted reflected and spill light is minimized
- Top Latch
- The Location Top Latch is specially coated for improved corrosion resistance and is spring-loaded for fast operation even when hot
- Sliding Stirrup
- Modern fixtures use a wide variety of softboxes, scrollers, and other front mounted accessories. Simply slide ARRI's stirrup bracket to quickly and easily adjust the fixture's center of gravity
- Tilt Lock
- ARRI's improved design creates a positive lock so there's no slippage when using heavy accessories. A stainless steel friction disc functions like a disc brake allowing the lamphead to be completely locked off with a minimum of force
- Optional Barndoors
- The D40's optional barndoors use a special alloy with a high strength-to-weight ratio. The barndoor leaves withstand bending and deforming far better than traditional barndoors. In addition, they are now easily tightened to avoid slipping while the larger leaf design provides better control and sharper cutoff
- Barndoor Safety Catch
- Although the top latch holds accessories securely at any tilt angle, the lamphead features a second safety catch mounted on the bottom accessory bracket that doesn't restrict rotation
- Stainless Steel Lens Protection
- The laser-cut hexagonal safety mesh maximizes light transmission and is tough enough to withstand location abuse
- Maintenance
- True Blue fixtures have been designed for serviceability using more common parts across the line. True Blues require only three Torx drivers to disassemble the complete fixture. Removing a maximum of six universal Torx screws provides easy access to all interior parts. ARRI's aluminum extrusion makes cleaning fixtures easy and an advanced paint process ensures that True Blues will look as good as they perform
- IP23 Weather Protection
- True Blue fixtures are manufactured to the IP23 standard and are suitable for indoor use or outdoor use providing a degree of protection against falling rain up to a 60° angle from vertical
- Safety Certification
- All True Blue fixtures carry not only CE declaration, but also an independently assessed TUV certification
- Photometrics
- With 4000W Lamp Spot 6.5°:
at 52.5' (16 m): 7717 lux with a beam diameter of 5.57' (1.8 m)
at 65.6' (20 m): 4939 lux with a beam diameter of 6.8' (2.3 m)
at 78.7' (24 m): 3430 lux with a beam diameter of 4.2' (2.7 m)
Medium: 30°:
at 52.5' (16 m): 1766 lux with a beam diameter of 5.57' (8.6 m)
at 65.6' (20 m): 1130 lux with a beam diameter of 6.8' (10.7 m)
at 78.7' (24 m): 785 lux with a beam diameter of 4.2' (12.9 m)
Flood: 61°:
at 52.5' (16 m): 760 lux with a beam diameter of 5.57' (18.8 m)
at 65.6' (20 m): 486 lux with a beam diameter of 6.8' (23.6 m)
at 78.7' (24 m): 338 lux with a beam diameter of 4.2' (28.3 m) In the Box ARRI True Blue D40 4000W HMI Fresnel (Black) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ARRI True Blue D40 4000W HMI Fresnel in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersARRI True Blue D40 Specs | Rating | 4000 W, HMI | | Lamp Type | Metal Halide 4000 W/SE | | Socket (Lampholder) | G38 | | Power Consumption | 4000 W | | Lens | 11.8" / 250 mm Fresnel | | Reflector | Spherical specular high purity aluminum | | Beam Angle | 6.5-61° | | Color Temperature | 6000K (with optional lamp) | | Accessory Size | 15.75" / 400 mm | | Dimming | With optional ballast | | Mounting | 1 1/8" / 28 mm Junior Pin | | Power Requirements | N/A, requires ballast | | IP Rating | IP23 weather resistant | | Cable | Optional VEAM, Schaltbau | | Certifications | CE, CB, GS, cNRTL | | Dimensions | 28.6 x 21 x 19" / 727 x 534 x 403 cm | | Weight | 38.6 lb / 17.5 kg |
