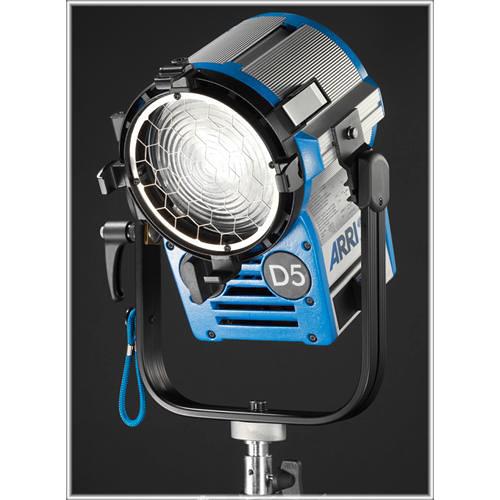

Product description The ARRI True Blue D5 HMI System consists of a 575W lamp head with a 6" Fresnel lens, a 400/575W electronic ballast with Active Line Filter, a four-leaf barndoor set, a filter frame, and a 50' head to ballast cable. This daylight-balanced fixture offers a conveniently sized, yet powerful light that works with voltages from 90-250 VAC due to the ballast. The ballast also features and Active Line Filter that reduces fluctuations in output and color temperature. Included with the system are a four leaf barndoor and filter frame for light modification and a 50' head to ballast cable. - True Blue D5 HMI 575W Fresnel Head Part of Arri's True Blue series, the D5 HMI 575W Fresnel Head stays true to its Arri roots with its compact size, while reducing weight and maximizing light output. True Blue heads also feature a new cross-cooling system--lamp housing temp is reduced 25%; lens temp, 17%. A redesigned stirrup and improved tilt lock make using Chimera or similar light modifiers a breeze.
- New cross-cooling system reduces lamp housing and lens temperature
- Redesigned stirrup and improved tilt lock for ease of using light modifiers
- 400/575W Electronic Ballast with ALF (120-220 VAC) The 120-220 VAC Arri 400/575W Electronic Ballast with ALF is a dual voltage electronic ballast for the Pocket Par 400 HMI light, and features an Active Line Filter for Power Factor Correction. ALF provides a higher Power Factor resulting in more efficient power use. This is accomplished by shifting the voltage and current waveforms in phase and minimizing harmonics and spikes. ALF also minimizes the current carried back on the neutral leg of the power systems.
- Quiet and dimmable, perfect for video or motion picture use.
- 4-Leaf Barndoor Set for ARRI T1 Fresnel This is an ARRI 4-Leaf Barndoor Set that fits the T1 Location Frensel. Barndoors attach to the front of a light and are used to restrict light from areas of a set. ARRI barndoors are heat resistant and rotatable.
- Filter Frame for 1K Fresnel, Compact HMI 575W Arri Filter Frames are circular and heat resistant. Filters can be cut and sandwiched into them, and they slide into lamphead accessory holders. Sizes are a little bit larger than the fresnels.
- Head to Ballast Cable 575/1200/1800W - 50' This is an ARRI Head to Ballast Cable. The 50' (15.2 m) long cable is compatible with 575, 1200 and 1800W heads such as the ARRISUN 5, 12 Plus, 18, and 40/25 heads. It's also compatible with the ARRIMAX M18, the ARRI X X5 and X12, D5 and D12 Fresnels and the Compact 575 and 1200 heads.
In the Box Bundle Items True Blue D5 HMI 575W Fresnel Head cvbewbczsfwzxu 400/575W Electronic Ballast with ALF (120-220 VAC) 4-Leaf Barndoor Set for ARRI T1 Fresnel Filter Frame for 1K Fresnel, Compact HMI 575W - One Year Manufacturer's Warranty
Head to Ballast Cable 575/1200/1800W - 50' - One Year Manufacturer's Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the ARRI True Blue D5 HMI System with 400 575W ALF Ballast in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - True Blue D5 HMI 575W Fresnel Head
| Rating | 575W | | Socket (Lampholder) | G22 High Voltage | | Lens (Condenser) | 5.9" (150 mm) low expansion borosilicate Fresnel lens | | Mounting | 5/8" (16 mm) or 1 1/8" (29 mm) stand mount | | Weight | 13.5 lbs. (6.1 kg) | | Dimensions | 17 x 12.87 x 8.75" (43.18 x 32.68 x 22.19 cm) | | | | Box Dimensions (LxWxH) | 16.0 x 16.0 x 13.0" | - 400/575W Electronic Ballast with ALF (120-220 VAC)
| Lamp Power | 400 - 575 W | | Input Voltage | 120-220 VAC
50/60 Hz | | Dimmer | Yes | | Weight | 7.6 lb (3.4 kg) | | Dimensions | 3.6 x 6.1 x 10.4" (9.1 x 15.5 x 26.5 cm) | | | | Box Dimensions (LxWxH) | 15.197 x 7.953 x 4.331" | - 4-Leaf Barndoor Set for ARRI T1 Fresnel
| | | Box Dimensions (LxWxH) | 15.9 x 11.8 x 2.05" | - Filter Frame for 1K Fresnel, Compact HMI 575W
| | | Box Dimensions (LxWxH) | 8.4 x 8.0 x 0.3" | - Head to Ballast Cable 575/1200/1800W - 50'
| | | Box Dimensions (LxWxH) | 20.0 x 20.0 x 5.0" |
