User Manual for ARRI TRUE BLUE T1 1000W Pole Operated Fresnel Fixture Click to enlarge the picture
Contents of the user manual for the ARRI TRUE BLUE T1 1000W Pole
- Product category: Tungsten Lights ARRI
- Brand: ARRI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ARRI Tungsten Lights
 |
User manual for the ARRI TRUE BLUE T1 1000W Pole contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ARRI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ARRI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ARRI product will considerably shorten its lifespan!
|

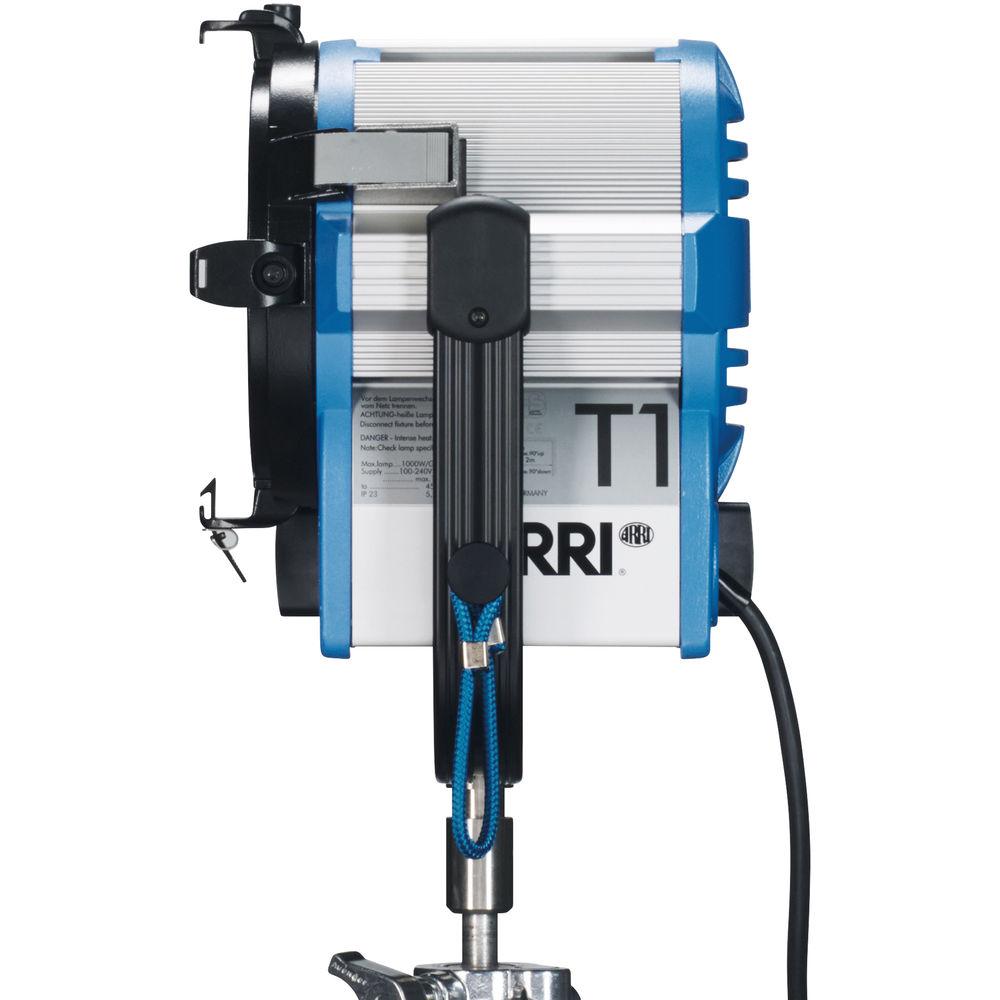

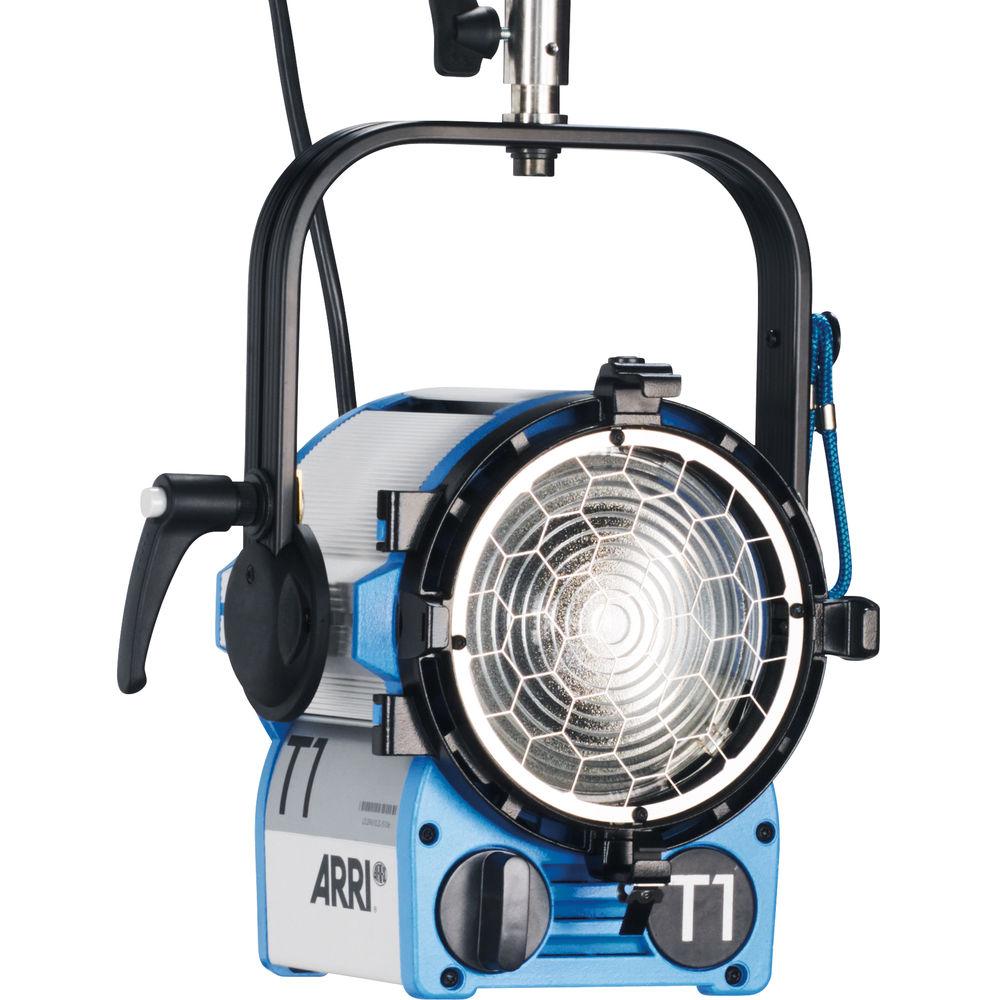

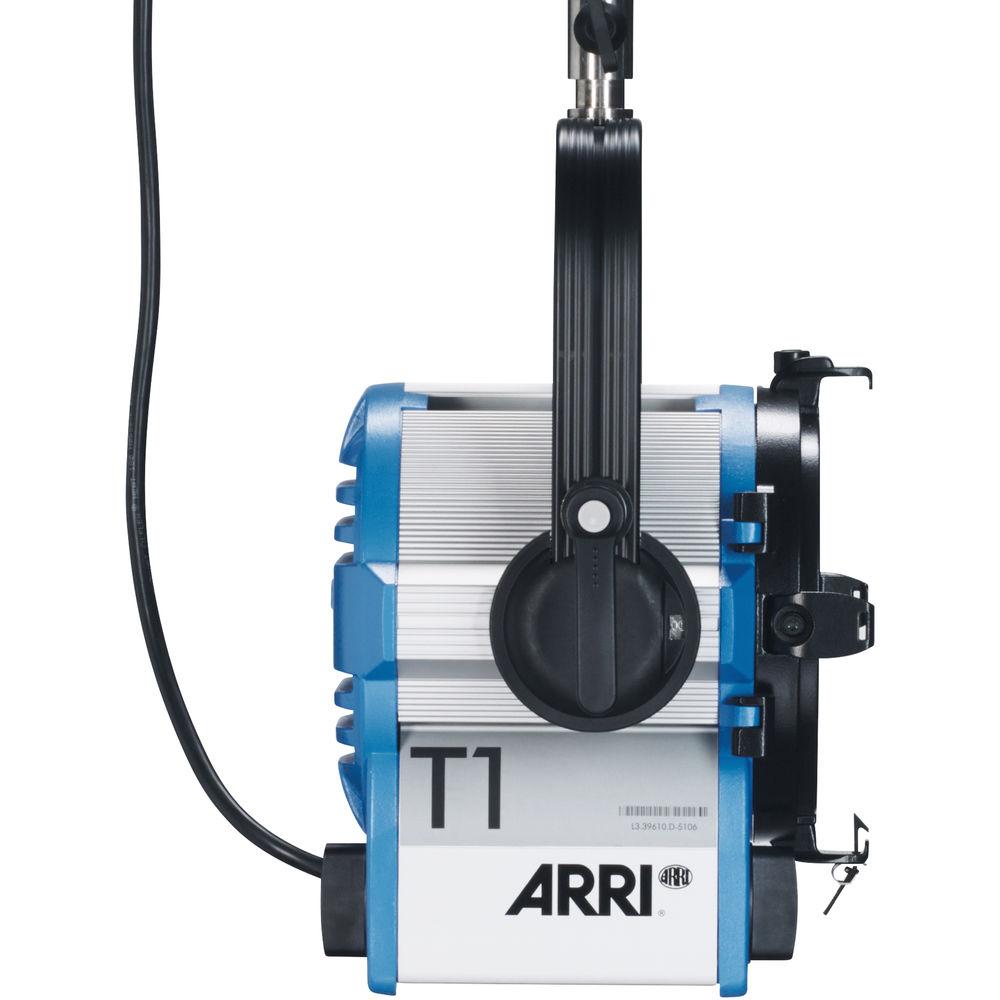

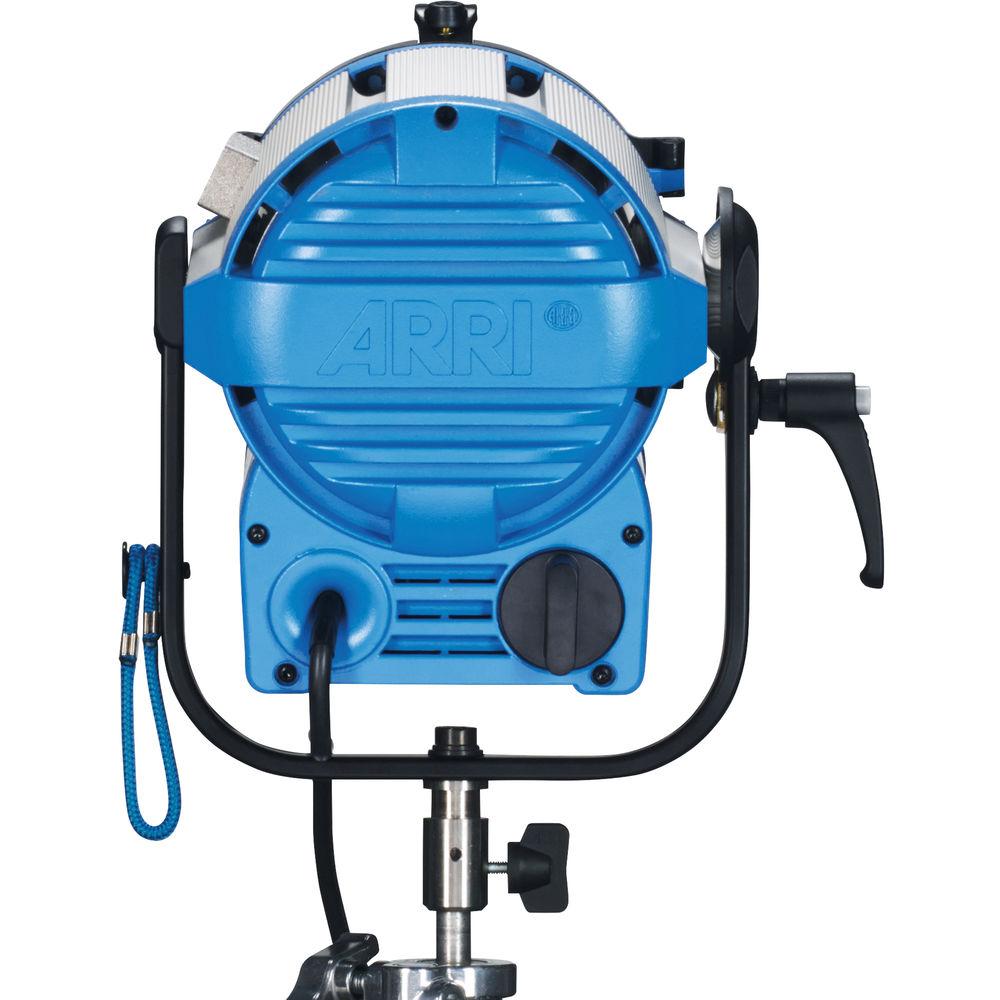

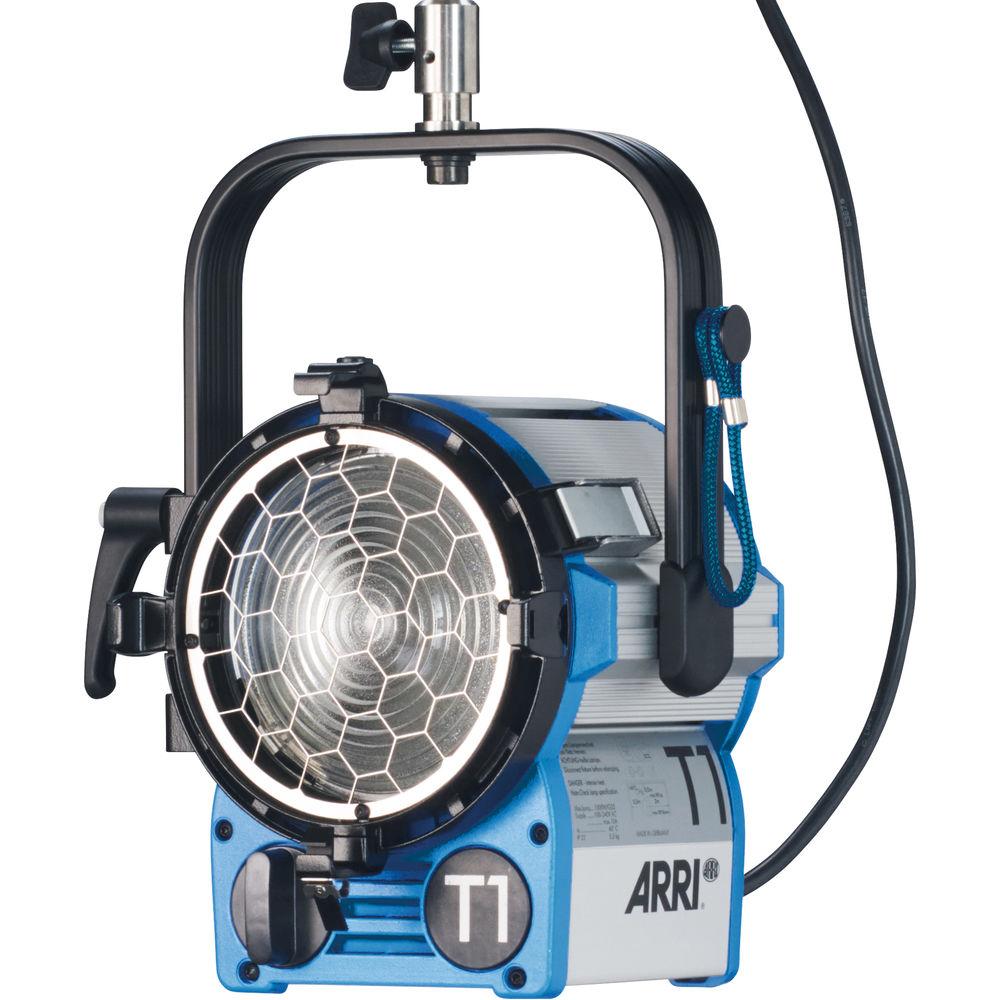

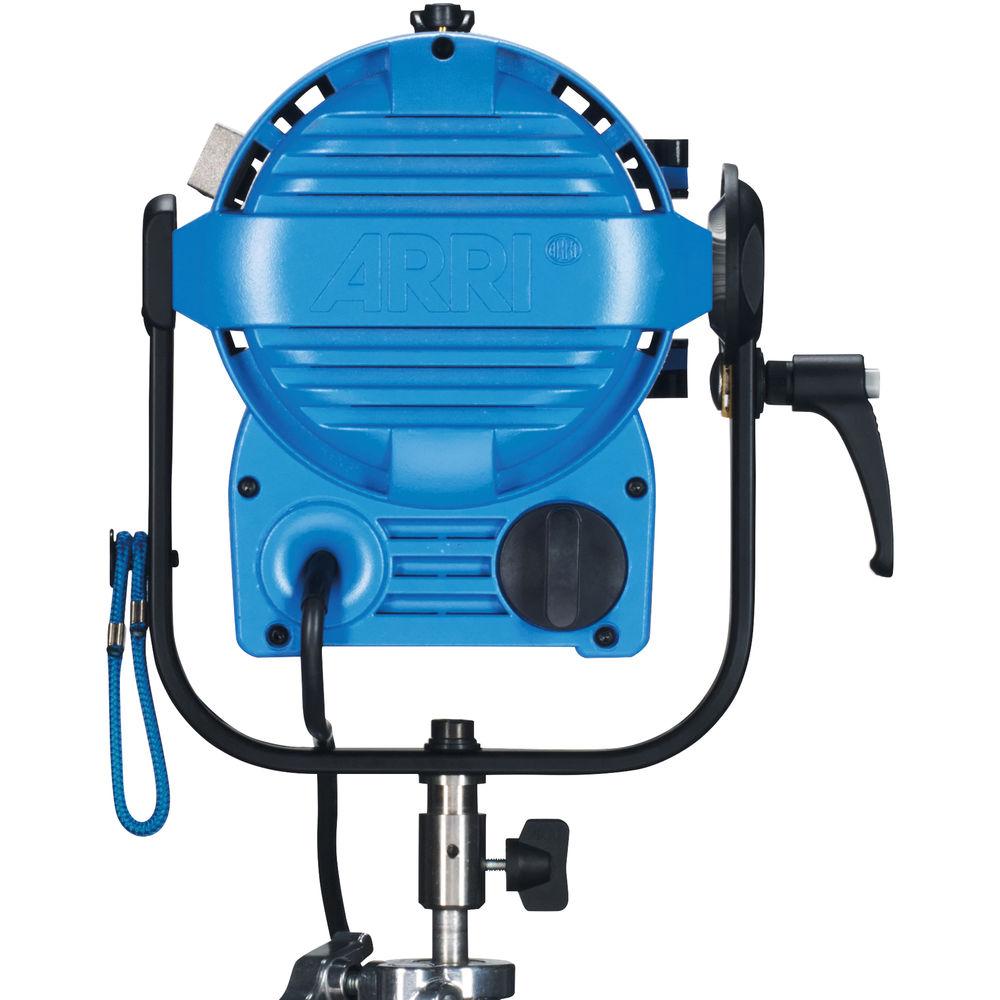

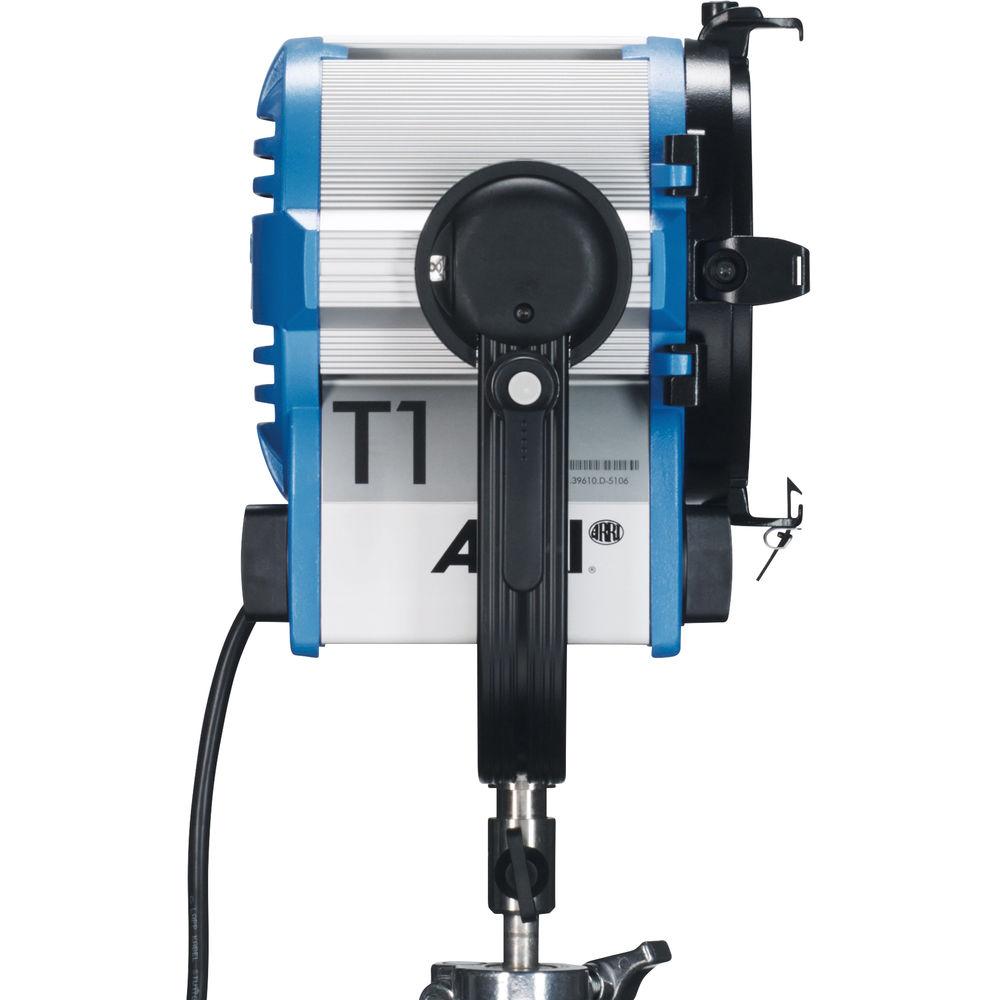

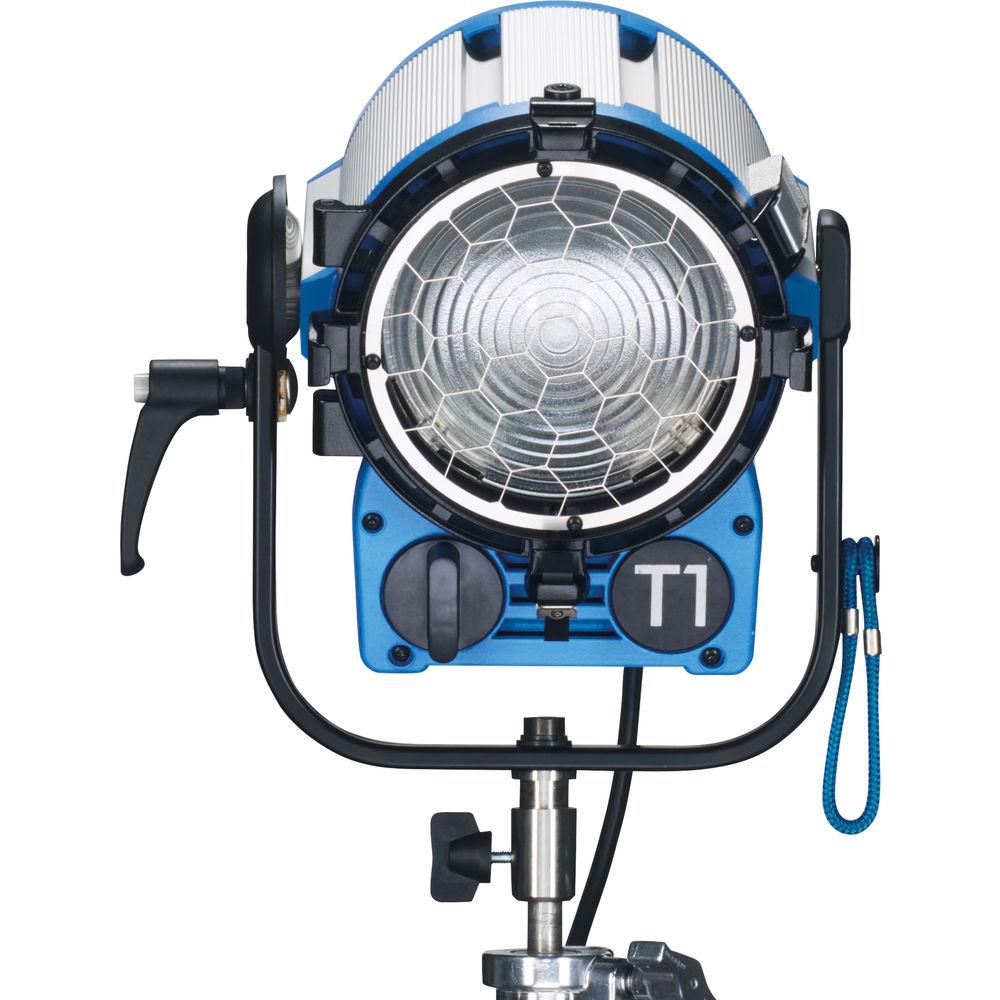

Product description The TRUE BLUE T1 1000W Pole Operated Fresnel Fixture from Arri offers a cross cooling system that reduces the temperature of the lamp housing and lens. It features a stainless steel friction disc for rigid lock-off, adjustable 2-scrim and 4-scrim position brackets, stainless steel lens protection with maximized light transmission, and high temperature stability. The fixture includes a 1.5m cable, a 4-leaf barndoor, and a filter frame. - Cross cooling system, highly effective cooling streams in addition to conventional cooling
- Sliding stirrup: center of gravity adjustment
- Tilt lock: stainless steel friction disc for rigid lock-off
- Application-oriented top latches for location or studio use
- Adjustable 2-scrim and 4-scrim position accessory brackets
- Stainless steel lens protection with maximized light transmission and high temperature stability
- Robust barn doors made of special alloy with high strength-to-weight ratio and effective tightening function
- More shared parts, quick access to all interior workings with three torx drivers only
- Protection class IP23, safe for indoor and outdoor use
In the Box ARRI TRUE BLUE T1 1000W Pole Operated Fresnel Fixture 5' Cable 4-Leaf Barn Door Filter Frame Table of Contents
|
Upload User Manual
Have you got an user manual for the ARRI TRUE BLUE T1 1000W Pole Operated Fresnel Fixture in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersARRI T1 Specs | Lamp Type | Fresnel, 1000 W | | Reflector | Spherical specular high purity aluminum | | Lamp Type | 120 V: 1000 W (EGT) | | Voltage Range | 120 V | | Lamp Base | G22 | | Dimmable | Yes, 0 - 100 % via external dimming system | | Cable | Bare ends | | Color Temperature | 3200 K | | Beam Angle | 10 to 54° | | Mounting | Socket 5/8" (0.63") (16 mm); Spigot 1 1/8" (1.1") (28 mm) | | Protection Class | I/IP 23 | | Certifications | CE, CB, GS, cNRTLus | | Lens Diameter | 5.91" (150 mm) | | Barndoor | 7.76" (197 mm) | | Accessory Size | Diameter: 7.76" (197 mm) (Scrim) | | Dimensions | 14.1 x 12.7 x 8.5" (358 x 322 x 216 mm) | | Weight | 13.2 lb (5.98 kg) |
