Product description This UDM-1 Ultrasonic Distance Measure Basic Set provides focus measuring data for any ARRI or other brand of camera. The UDM-1 measures the distance between the sensor/film plane and the subject or object with ultrasonic pulses. Focus tracking is enabled when using the UDM-1 with an ALEXA Plus/Studio and the UMC-4 controller. The UDM Display unit shows the distance data on an LCD screen.A sensor unit, display, and a sensor cable are included with the UDM-1 Basic Set. Mounting options are available separately. Note: Requires a power cable (available separately) - UDM Sensor Unit This UDM Ultrasonic Sensor Unit provides focus measuring data for any ARRI or other brand of camera. The UDM Sensor measures the distance between the sensor/film plane and the subject or object with ultrasonic pulses. The UDM Sensor is used with the UDM Display Unit (available separately). It may also be paired with an ARRI ALEXA Plus/Studio camera and a UMC-4 controller. Note: Requires a power cable (available separately)
Features - Works with any ARRI or other HD or film camera
- Measures subject or object distance using ultrasonic pulses
- UDM Display Unit This UDM Display Unit displays the focus measuring data provided by the UDM Sensor Unit (available separately). Compatible with any ARRI or other brand of camera, the compact UDM Display features a transflective LCD display window for improved viewing in low-light settings.
Features - Works with the UDM Sensor, and any ARRI or other HD or film camera
- Lightweight unit displays subject or object distance on a transflective LCD screen

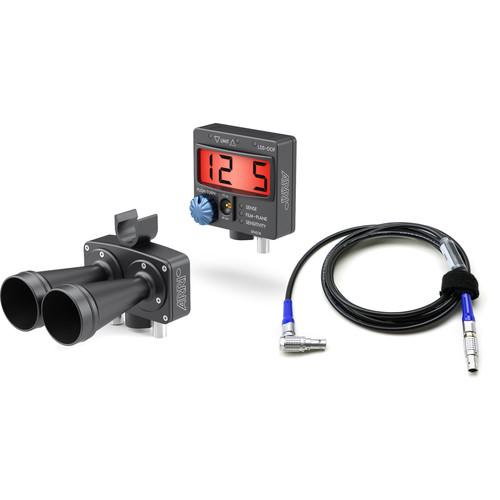

In the Box Bundle Items UDM Sensor Unit zecrtcbxux UDM Display Unit UDM Sensor Cable (5') Table of Contents
|
Upload User Manual
Have you got an user manual for the ARRI UDM-1 Ultrasonic Distance Measure Basic Set in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - UDM Sensor Unit
| Dimensions | 12.2 x 8.1 x 4.5" (310 x 205 x 115 mm) | | Weight | 14.7 oz (418 g) | - UDM Display Unit
| Dimensions | 8.1 x 5.3 x 2.8" (205 x 135 x 70 mm) | | Weight | 8 oz (227 g) |
