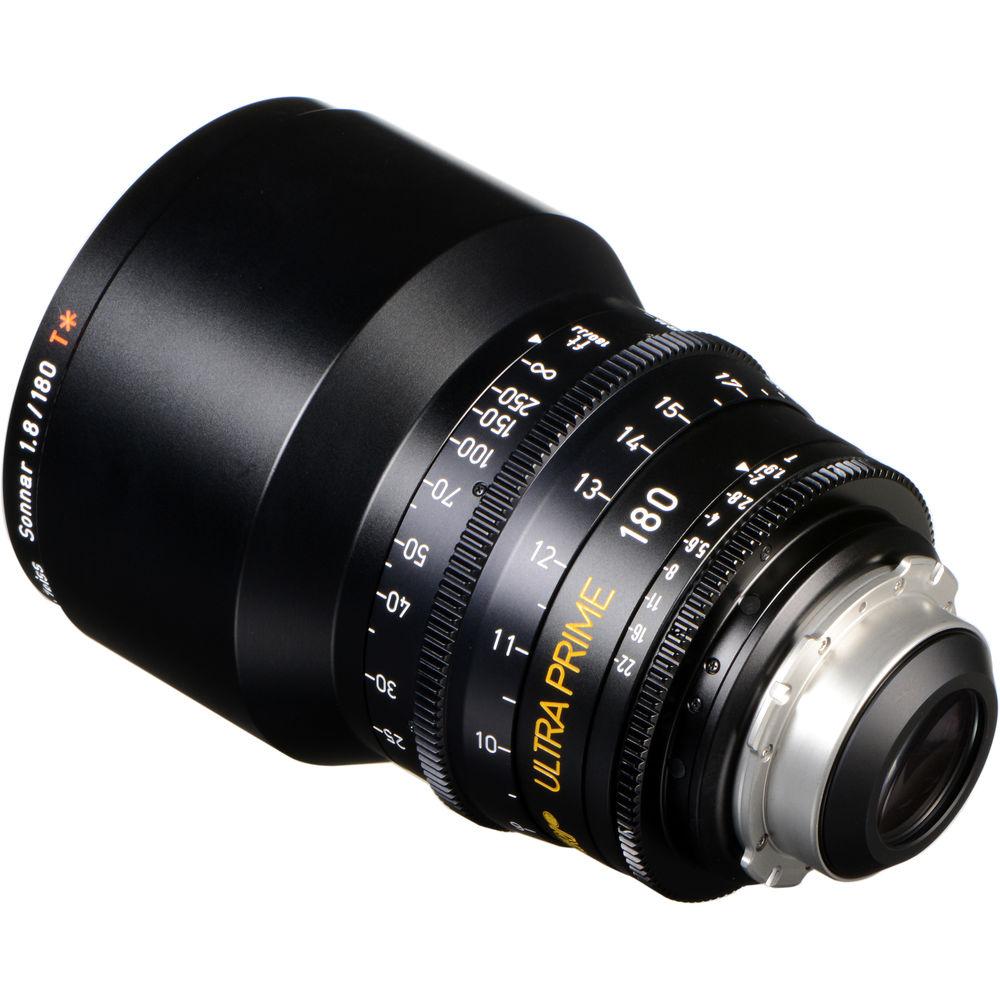

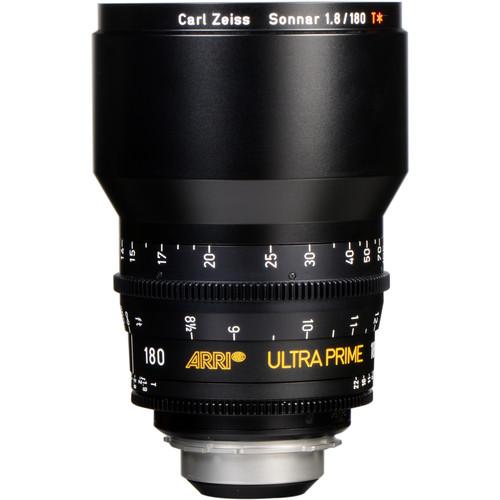

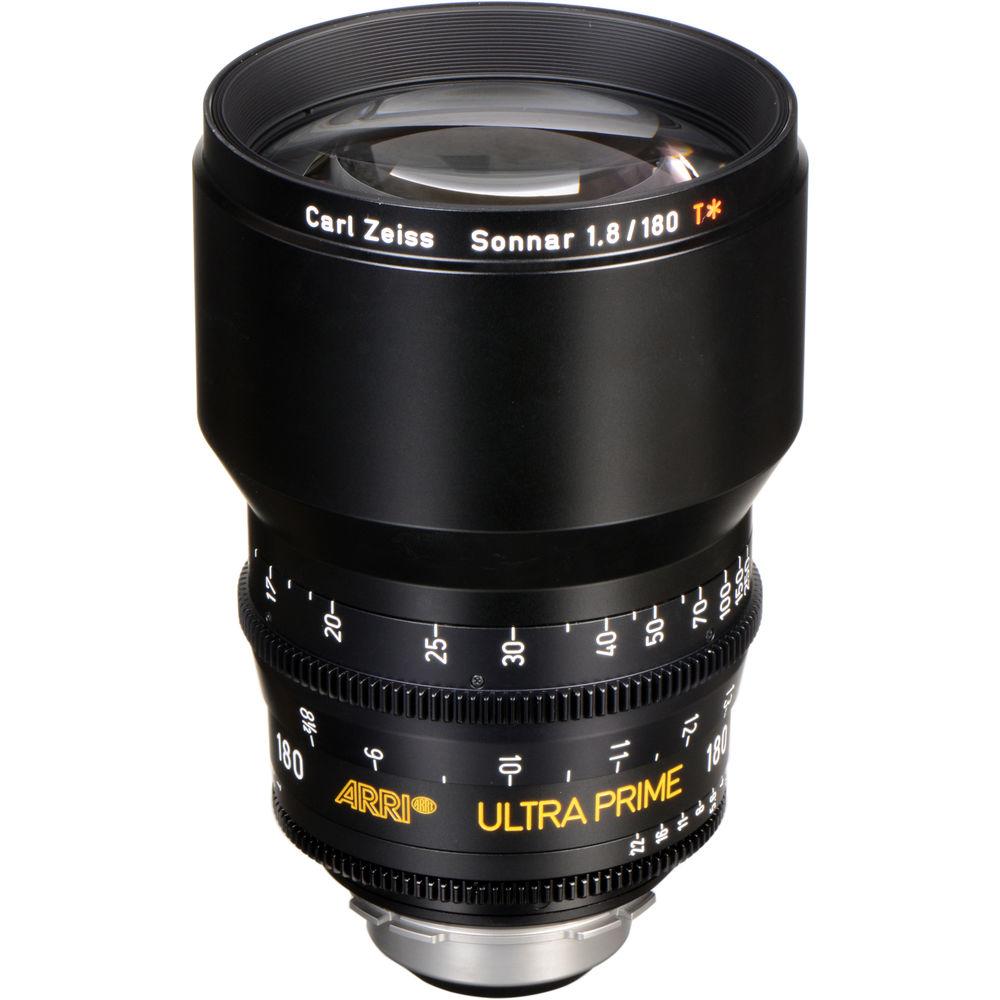

User Manual for ARRI Ultra Prime 180mm T1.9 Lens Click to enlarge the picture
Contents of the user manual for the ARRI Ultra Prime 180mm T1.9 Lens
- Product category: Digital Cine Lenses ARRI
- Brand: ARRI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ARRI Digital Cine Lenses
 |
User manual for the ARRI Ultra Prime 180mm T1.9 Lens contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ARRI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ARRI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ARRI product will considerably shorten its lifespan!
|
Product description ARRI Lensesthe Current Professional Standard in Cinema Read More The ARRI Ultra Prime 180mm T1.9 is a PL-mounted prime lens that covers the Super-35 format. The 180mm is a telephoto entry in the comprehensive array of Ultra Prime focal lengths from 8mm to 180mm. The Ultra Primes provide a compact, lightweight, optically-matched complement to the higher-speed ARRI Master Prime series. Compatible with both HD and film cameras, the Ultra Primes are color matched to each other and to the rest of the ARRI lens spectrum.The Ultra Primes provide the optimal image quality, vivid colors, and skin tones for which ARRI/Zeiss are known. Each lens in the series features a T* XP lens coating for reduced glare and minimized reflections. The Ultra Prime 180mm has a minimum close focus of 8.6". The lenses' fast, maximum aperture of T1.9 enables shallow depth-of-field shots. Minimal focus breathing does not draw attention to focus pulls, preserving the viewer's cinematic experience.
The Ultra Prime 180mm lens barrel is marked in feet and has focus markings on both sides of the barrel, enabling the focus puller to easily work the side of the lens best suited for each setup. Its industry-standard 0.8 Mod focus and iris gears interface with manual follow focus units and with wireless lens control motors. All 15 lenses in the Ultra Prime series share common focus and iris gear positions, making for fast lens swaps with no need to reposition lens accessories. While most of the Ultra Primes share a 95mm front barrel diameter, the telephoto 180mm has a 114mm front. Key Features - Covers Super-35mm format, maintains high contrast and resolution even at close focus
- Optically-matched prime lens complements the high-speed Master Prime series; Ultra Primes are color-matched to each other and the rest of the ARRI lens spectrum
- T* XP multi-layer anti-reflex coating reduces flares and internal reflections
- Lightweight, rugged, compact design with a maximum aperture of T1.9
- Minimal chromatic aberration and breathing
In the Box ARRI Ultra Prime 180mm T1.9 Lens (PL, Feet) Limited 1-Year Warranty Cinema Lens Care and Maintenance Mary Latvis 03/29/2017 Table of Contents
|
Upload User Manual
Have you got an user manual for the ARRI Ultra Prime 180mm T1.9 Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersARRI Ultra Prime 180mm T1.9 (ft) Specs | Mount Type | PL | | Focal Length | 180mm | | Aperture Range | T1.9 to T22 | | Focus Scales | Feet | | Horizontal Angle of View | ANSI Super 35, I = 12.45 mm: 7.9°
DIN Super 35, I = 12.00 mm: 7.6°
Standard 35, I = 11.00 mm: 7.0°
* I is the radius of the image circle needed for the respective format. It is the same as the distance from the image center to a corner. | | Close Focus | 8'6" (2.6 m) | | Gear Mod | 0.8 | | Front Lens Diameter | 4.5" (114 mm) | | Length | Lens Mount to Front: 6.5" (166 mm) | | Weight | 5.5 lb (2.5 kg) | | | | Package Weight | 9.6 lb | | Box Dimensions (LxWxH) | 14.5 x 12.5 x 12.2" |
