User Manual for ARRI Ultra16 12mm T1.3 Prime Lens Click to enlarge the picture
Contents of the user manual for the ARRI Ultra16 12mm T1.3 Prime Lens
- Product category: Digital Cine Lenses ARRI
- Brand: ARRI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ARRI Digital Cine Lenses
|
User manual for the ARRI Ultra16 12mm T1.3 Prime Lens contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ARRI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ARRI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ARRI product will considerably shorten its lifespan!
|

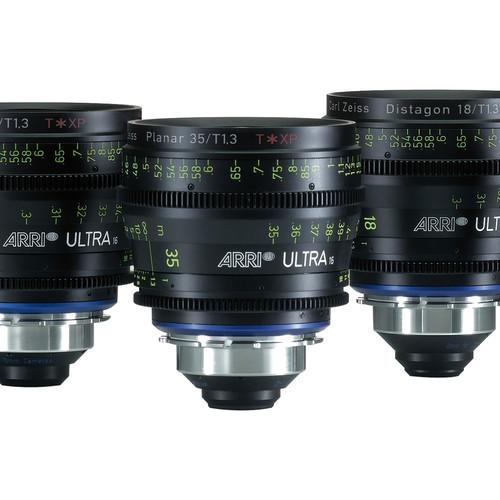

Product description Cinema Lens Care and Maintenance Read More The ARRI Ultra16 12mm T1.3 Prime Lens is a manual focus prime lens with a PL mount that covers the Super 16 format and is color matched to the Ultra Primes, Master Primes, Variable Primes and LWZ-1 zoom lens. The T* XP provides rich contrast, veiling glare protection, and helps deliver that well-known ARRI Look to your image. Featuring a fast maximum aperture of T1.3, the lens allows for shallow depth of field cinematography, which can be difficult to achieve in Super 16. Minimal focus breathing does not draw attention to focus pulls and helps preserve the cinematic feel of your footage.The lens is marked in meter and has focus markings on both sides of the barrel, so your focus puller can work either side of the lens. Integrated 0.8 Mod (cine standard) focus and iris gears interface with standard follow focus units or lens control motors. All lenses in the Ultra16 series share common focus and iris gear positions for fast lens swaps, with no need to reposition lens accessories. Likewise, each lens in the series features a 95mm front for consistency and speed when using matte boxes and changing lenses. - Lens Coating
- The T* XP multi-layer anti-reflex coating reduces flares and internal reflections. Compared to conventional coatings it has a better transmission and a more uniform performance from optical center all the way to the edges, resulting in higher contrast and deeper, richer blacks.
- High Speed
- Each lens in the series has a maximum aperture of T1.3, allowing for shallow depth of field without sacrificing sharpness or contrast, and without needing to adjust lighting or exposure when changing from one lens in the Ultra16 series to another.
-
- High contrast and resolution
- Image geometry free of distortions even at wide angles
- Minimized chromatic aberration
- Minimal breathing
- Color matches other ARRI/Zeiss Lenses
In the Box ARRI Ultra16 12mm T1.3 Prime Lens (PL Mount, Meters) Lens Cap Rear Lens Cap Brochure PDF 3.6mbvsqrsvefcewuuzxuddzevcddyadscbverc Table of Contents
|
Upload User Manual
Have you got an user manual for the ARRI Ultra16 12mm T1.3 Prime Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersARRI Ultra 16 12mm T1.3 (m) Specs | Mount Type | PL | | Focal Length | 12mm | | T-Stop | T1.3 to T16 | | Focus Scales | Meters | | Operation Mode | Manual | | Format | Super 16 1.66:1 (0.486 x 0.295" / 12.35 x 7.5 mm) | | Horizontal Angle of View | 20.46° | | Close Focus | 12" / 30.5 cm | | Gear Mod | 0.8 | | Front Lens Diameter | 95 mm | | Length | Lens Mount to Front: 3.6" / 9.14 cm | | Weight | 2.2 lb / 1.0 kg |
