Product description Use the ARRI Upgrade Set LMB-25 to LMB 4x5 Pro to upgrade your existing LMB-25 matte box to the more comprehensive LMB 4x5 Pro. This set provides 15mm rod support, a swing-away function, flags, additional filter trays, and more. The Upgrade Set comes with a foam insert designed to hold the components in a separately available Pelican 1560 case. - 15mm LWS Console for LMB 4x5 Clamp and Tilt/Flex Adapters Provided by third party: A screw-in standard 15 mm lightweight support console, compatible with both the LMB 4x5 143 mm clamp adapter and the LMB 4x5 tilt and flex adapter.

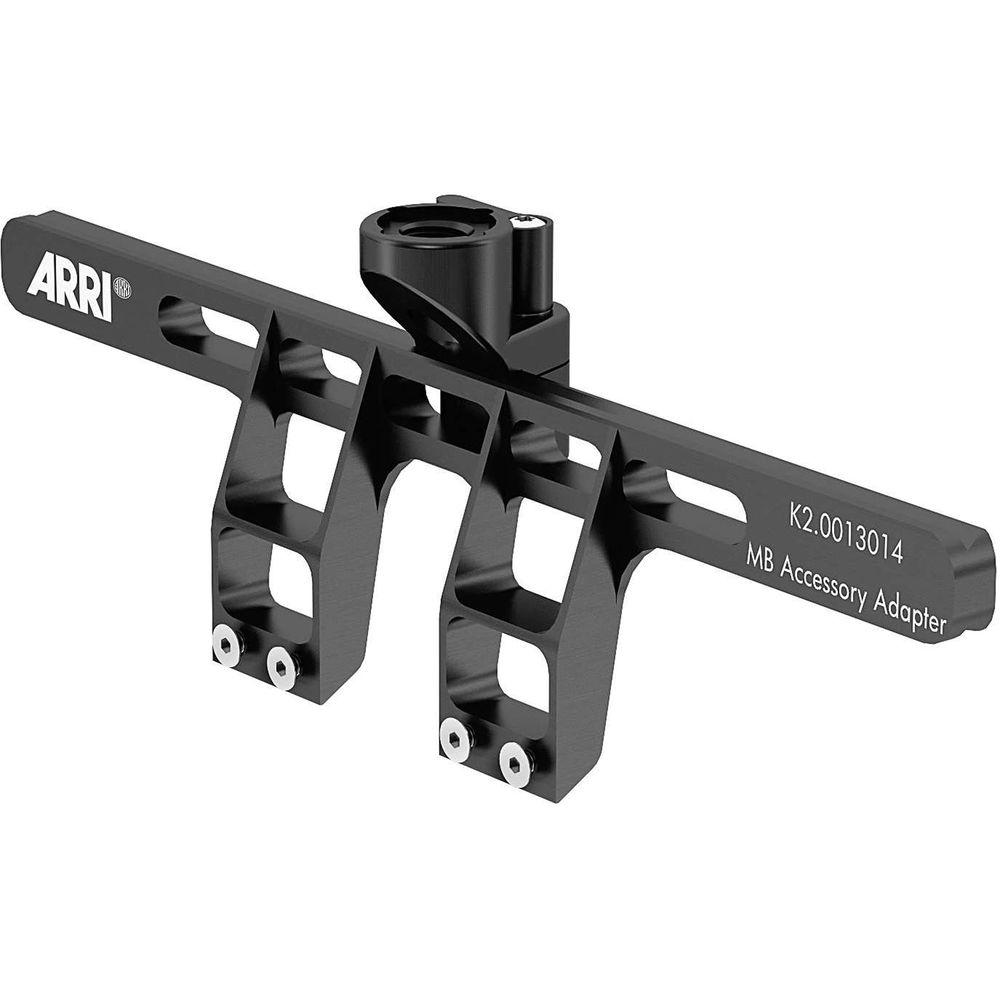

- LMB Accessory Adapter The ARRI LMB Accessory Adapter is used to mount one 3/8"-16 accessory to an ARRI LMB 4x5, LMB 6x6, LMB-25, or LMB-6 matte box. This T-shaped adapter features a sliding 3/8"-16 shoe that enables you to position a rangefinder or other device for optimal line-of-sight use.
Features -
- Compatible with ARRI LMB 4x5, LMB 6x6, LMB-25, and LMB-6 lightweight matte boxes
- Use to mount one 3/8"-16 accessory like an ultrasonic rangefinder
- Threaded shoe slides for optimal positioning

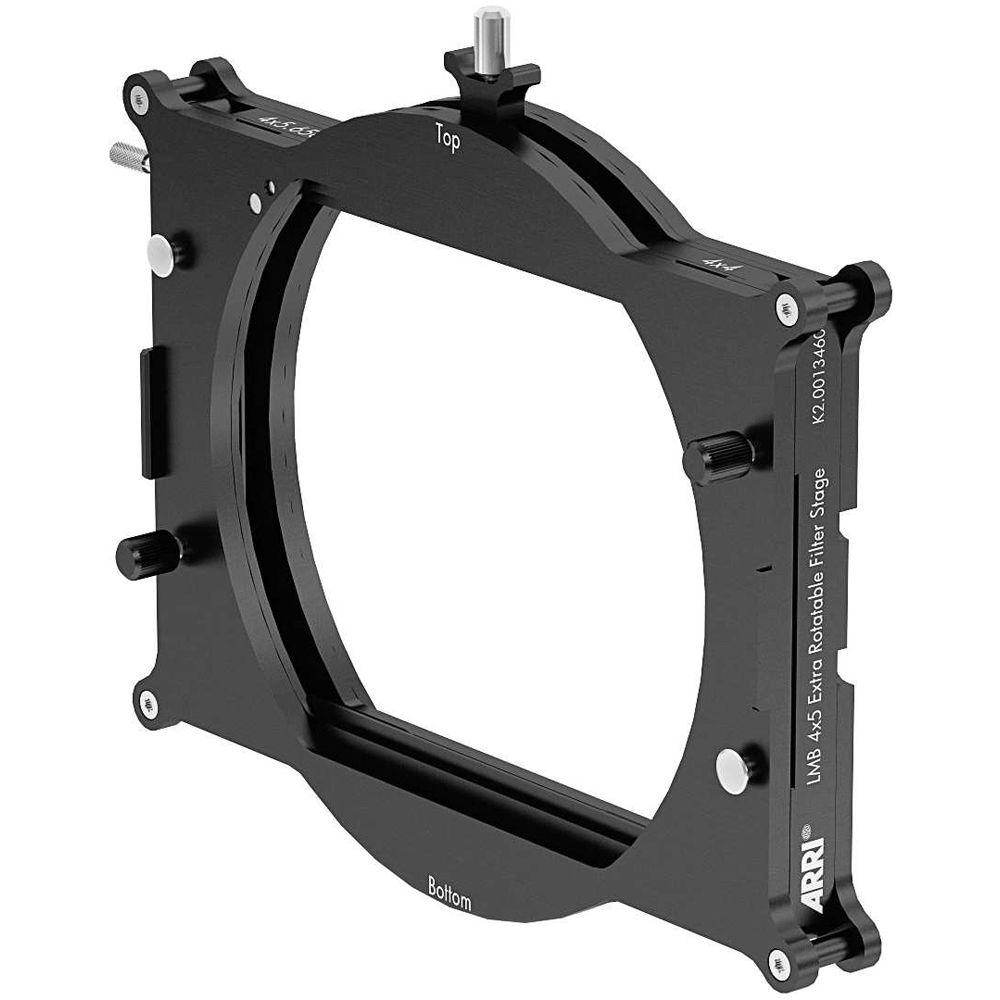

- LMB 4x5 Rotatable Filter Stage The LMB 4x5 Rotatable Filter Stage from ARRI is compatible with the LMB 4x5 matte box. This third filter stage rotates 360°, enabling you to adjust the positioning of your polarizer, graduated, or effects filter. It can also be used as a standalone filter stage with an LMB 4x5 clamp adapter.The stage has an integrated tray catcher to prevent the filter from sliding through the bottom of the stage when the side lock is loosened. A 4x5.65" filter frame is included with this stage.
Features - Stackable filter stage is compatible with the ARRI LMB 4x5 lightweight matte box
- One 4x5.65" filter frame is included
- Enables you to rotate your filter's position
- A tray catcher prevents the filter tray from dropping through the stage when its side lock is loosened

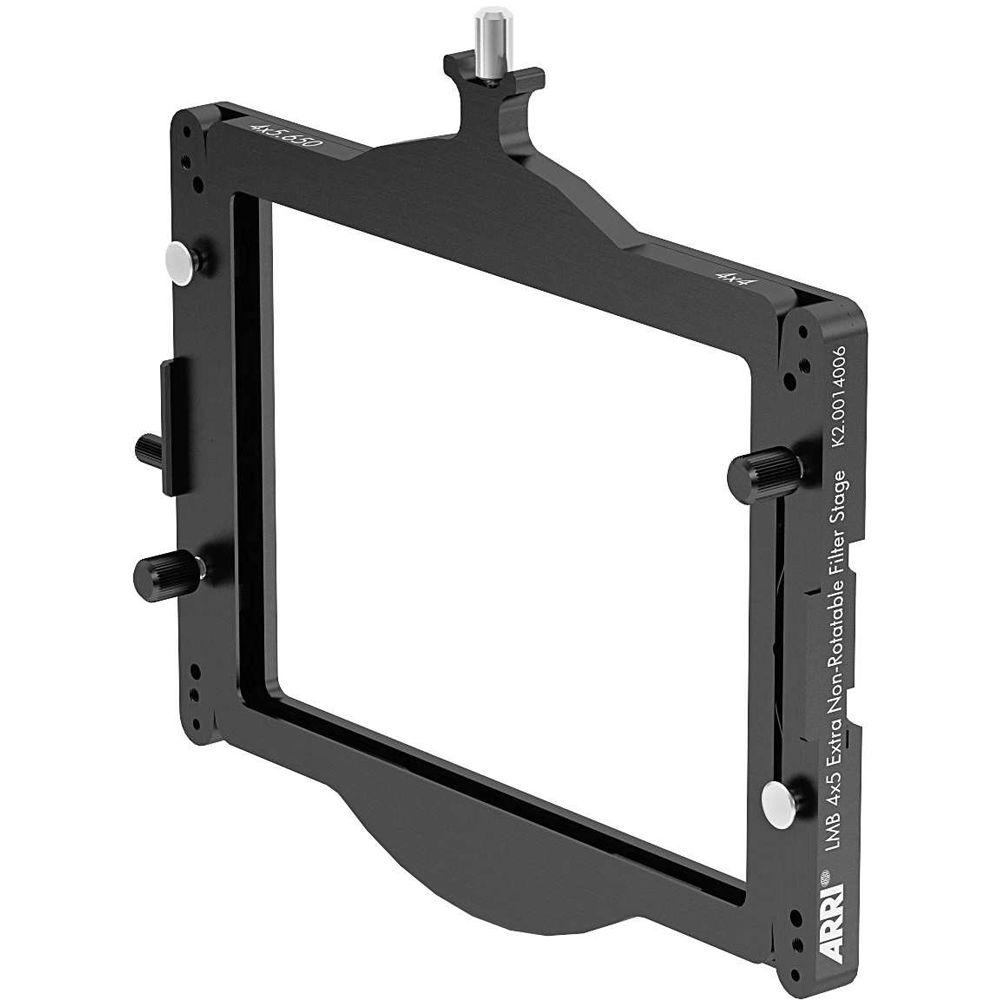

- Non-Rotatable Filter Stage for LMB 4x5 Matte Box Provided by third party: An optional non-rotatable third filter stage for the LMB 4x5. Can be used as a standalone filter stage with all LMB 4x5 clamp adapters. The LMB 4x5 sunshade can be mounted directly to the front of the filter stage.

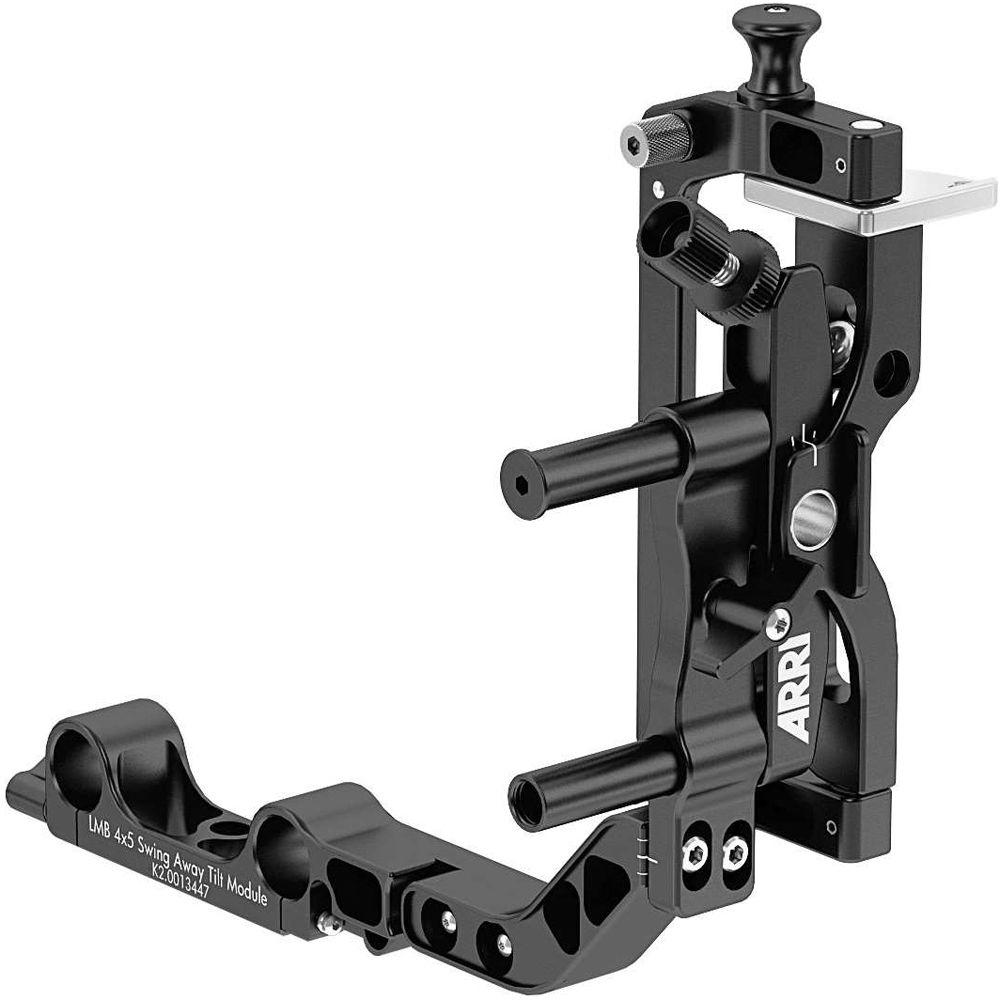

- LMB 4x5 Swing-Away Tilt Module The ARRI LMB 4x5 Swing-Away Tilt Module enables you to extend the LMB 4X5 matte box away from your lens with a simple twist, speeding your lens changes. This bracket also provides up to 10° of tilt, angling your filter to reduce or eliminate unwanted reflections.
- Features
-
- For ARRI LMB 4x5 lightweight matte box
- Enables matte box to swing away, speeding lens changes
- Tilts filters up to 10° to reduce unwanted reflections

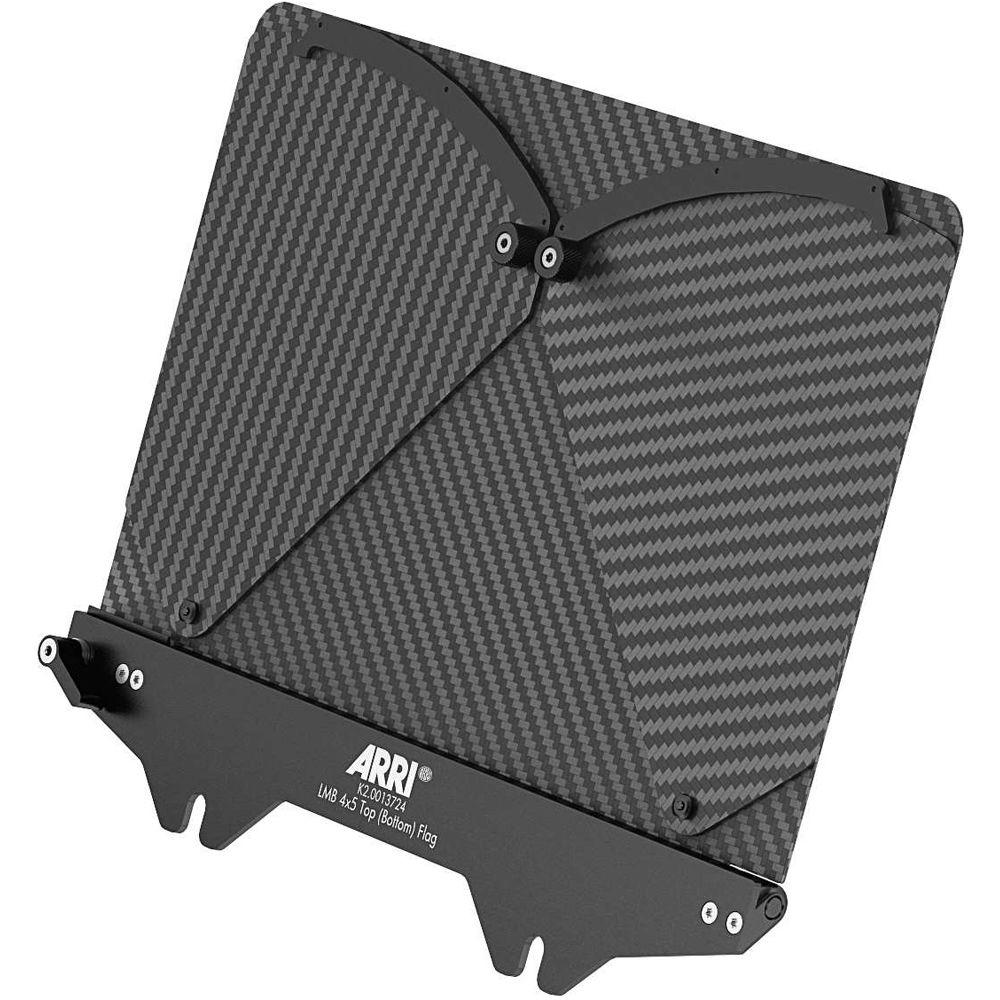

- Top/Bottom Flag for LMB 4x5 Matte Box Provided by third party: A carbon fiber flag, with two extensions, which can be mounted at the top or the bottom of the LMB 4x5 - compatible with LMB-5, LMB-15, and LMB-25.

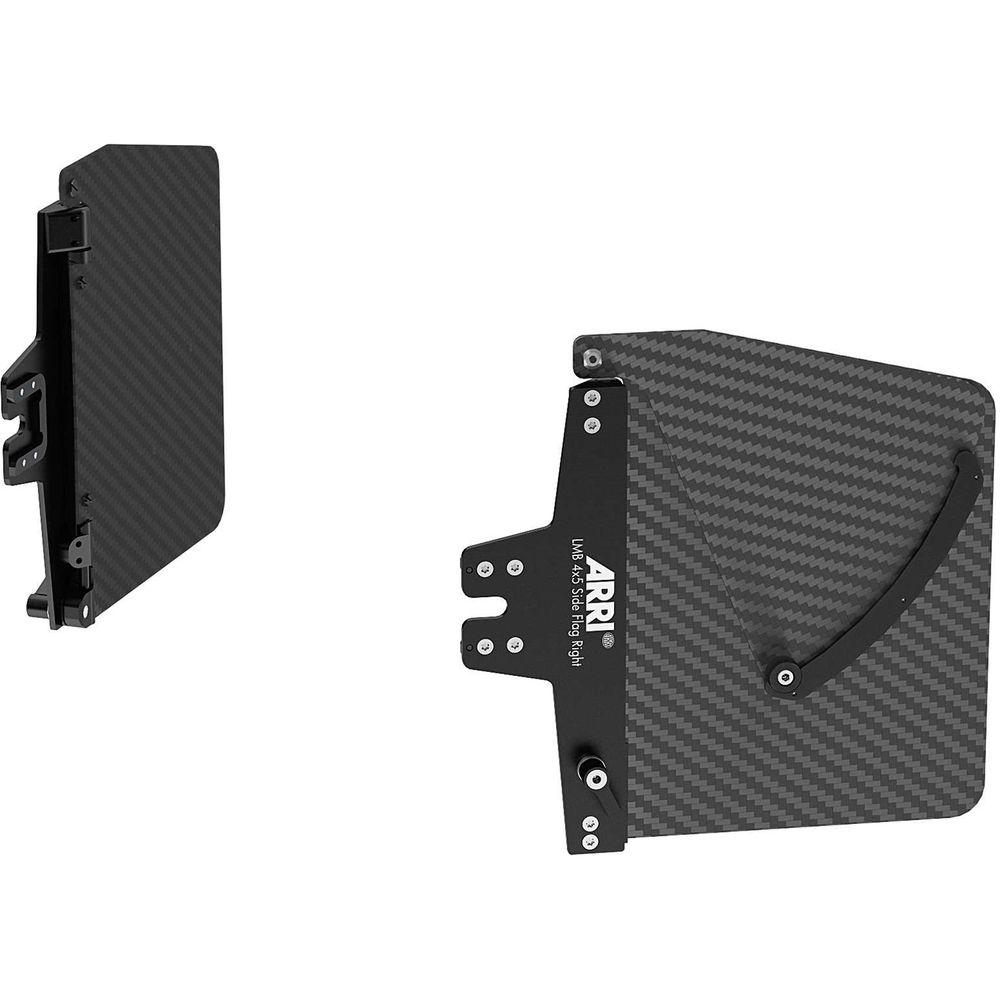

- LMB 4x5 Side Flags These ARRI LMB 4x5 Side Flags are used to provide additional flare control on an LMB 4x5 matte box. Each of these lightweight carbon fiber flags feature an extendable panel for precise shading control.
Features - Left and right side flags for an LMB 4x5 matte box
- Each flag incorporates an extension panel for blocking the maximum amount of light
- Carbon fiber construction is suitable for handheld and other lightweight camera rigs

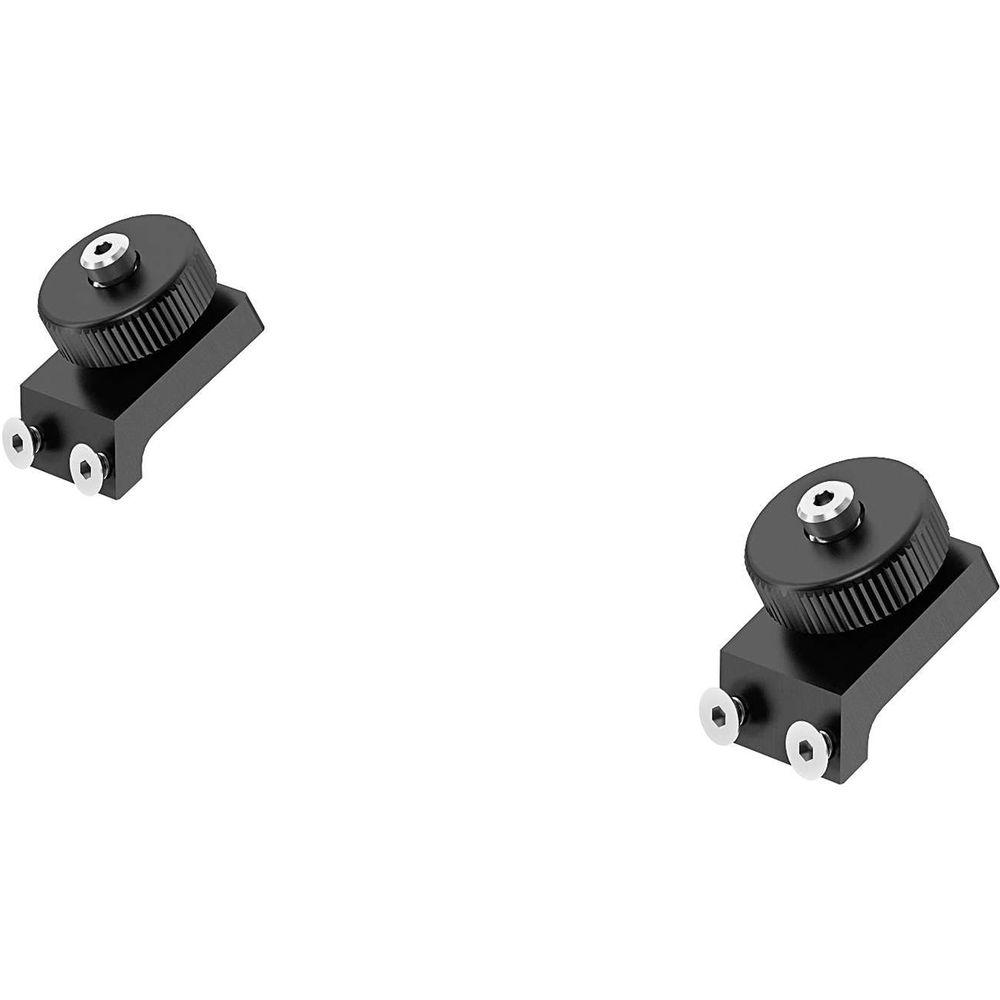

- LMB Flag Holders This pair of ARRI LMB Flag Holders is compatible with the LMB 4x5 and 6x6 lightweight matte boxes. The holders can be attached to the top, bottom, or sides of your matte box.Each holder screws into the matte box and has a captive knurled knob to hold the flag in place.
Features -
- Compatible with ARRI LMB 4x5 and 6x6 lightweight matte boxes
- Mounts on top, bottom, or sides of your matte box
- Captive knurled knob holds the flag in place

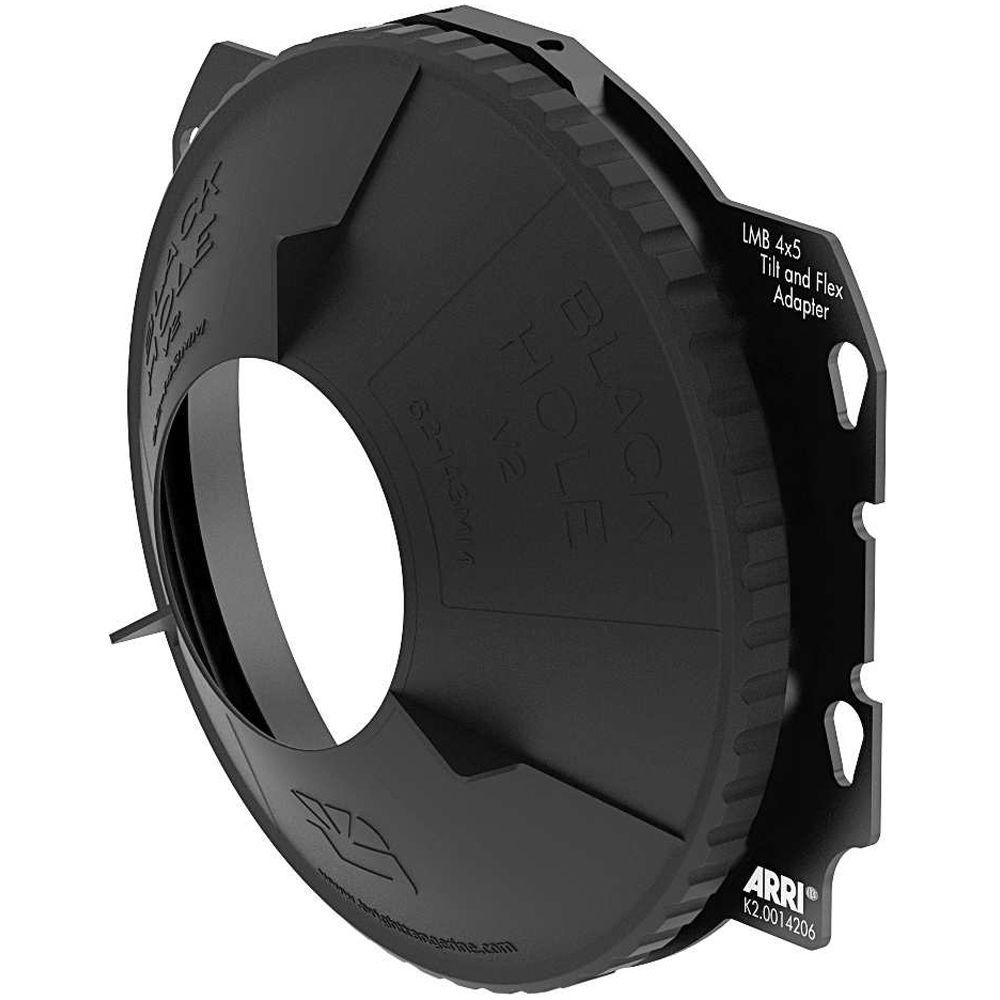

- Tilt/Flex Rubber Donut Adapter for LMB 4x5 Swing-Away Tilt Module Provided by third party: A flexible rubber donut adapter to use with lenses from small to large diameters (62- 143mm), for use with LMB 4x5 swing-away tilt module or with lenses where lens elements are extending. The LMB 4x5 15 mm LWS console can be mounted either on top or at the bottom.

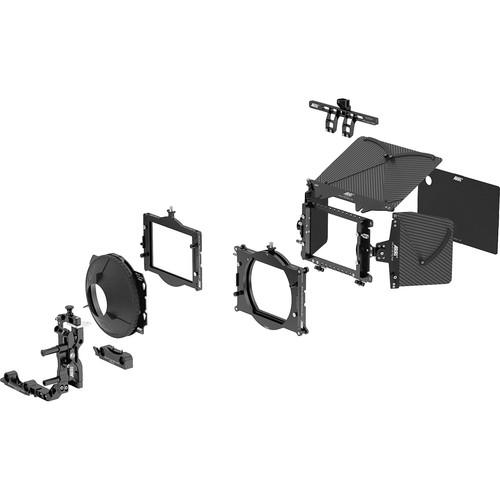

In the Box Bundle Items 15mm LWS Console for LMB 4x5 Clamp and Tilt/Flex Adapters yrbxdexybexuyvx LMB Accessory Adapter LMB 4x5 Rotatable Filter Stage Non-Rotatable Filter Stage for LMB 4x5 Matte Box LMB 4x5 Swing-Away Tilt Module Top/Bottom Flag for LMB 4x5 Matte Box LMB 4x5 Side Flags LMB Flag Holders Tilt/Flex Rubber Donut Adapter for LMB 4x5 Swing-Away Tilt Module yrbxdexybexuyvx
Also Includes - LMB 4 x 5 Back Plate with Filter Guides
- Limited 1-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the ARRI Upgrade Set LMB-25 to LMB 4x5 Pro in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - 15mm LWS Console for LMB 4x5 Clamp and Tilt/Flex Adapters
| | | Accessory Type | Rod bridge | | | | Intended For | Camera rig, matte box, 15 mm rod | | | | Box Dimensions (LxWxH) | 3.9 x 2.0 x 0.5" | - LMB Accessory Adapter
| Dimensions (WxHxD) | 7.9 x 2.8 x 1.6" / 200 x 70 x 40 mm | | Weight | 2.5 oz / 72 g | | | | Box Dimensions (LxWxH) | 9.1 x 2.6 x 1.0" | - LMB 4x5 Rotatable Filter Stage
| Dimensions and Weight | Not specified by manufacturer | | | | Box Dimensions (LxWxH) | 9.1 x 6.3 x 1.2" | - Non-Rotatable Filter Stage for LMB 4x5 Matte Box
| | | Accessory Type | Filter holder | | | | Box Dimensions (LxWxH) | 7.0 x 5.0 x 0.25" | - LMB 4x5 Swing-Away Tilt Module
| Rod Standard | 15 mm LWS | | Tilt Adjustment | 10° up/down | | Dimensions | 8.3 x 7.1 x 3.9" / 210 x 180 x 100 mm | | Weight | 10.9 oz / 308 g | | | | Box Dimensions (LxWxH) | 8.0 x 7.5 x 3.4" | - Top/Bottom Flag for LMB 4x5 Matte Box
| | | Accessory Type | Top/bottom flag | | Width | 9.4 in | | Depth | 7.9 in | | Height | 1.2 in | | Weight | 10.02 oz | | | | Box Dimensions (LxWxH) | 11.2 x 10.45 x 3.05" | - LMB 4x5 Side Flags
| Dimensions and Weight | Not specified by manufacturer | | | | Box Dimensions (LxWxH) | 11.2 x 10.3 x 3.1" | - LMB Flag Holders
| Dimensions and Weight | Not Specified by Manufacturer | | | | Box Dimensions (LxWxH) | 6.0 x 6.0 x 1.5" | - Tilt/Flex Rubber Donut Adapter for LMB 4x5 Swing-Away Tilt Module
| | | Accessory Type | Swing-away tilt module | | | | Box Dimensions (LxWxH) | 6.9 x 5.8 x 0.9" |
