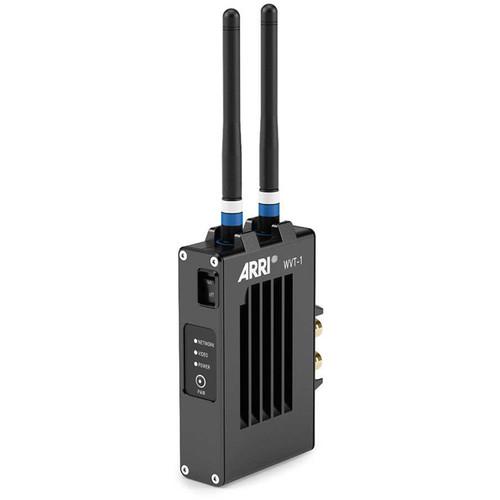

The WVT-1 Transmitter Set from ARRI includes the transmitter, two mounting options, and three cables for powering the unit from an ARRI or third-party camera. The WVT-1 provides real-time, uncompressed wireless transmission for ARRI or third-party cameras up to approximately 2000' with under 1 ms of delay. Pair the WVT-1 with up to four ARRI WVR-1 receivers, or with the Transvideo Starlite ARRI-WFS monitor. Dual-channel audio, timecode, and a REC flag function are included in the 128-bit AES–encrypted signal. The WVT-1's 10-bit output is compatible with HDR monitoring.

Designed for daily use on professional sets, this bundle includes cables for powering the transmitter from ARRI cameras and BeBob splitter boxes, or from a 3-pin Fischer-type or D-tap-equipped third-party camera. The robust WVT-1 Transmitter has an input voltage enabling it to be used with a wide range of batteries. With an inclusive operating temperature of -4 to 113°F, the ARRI wireless video system is suitable for a variety of locations. The WVT-1 Transmitter features a water-resistant and dust-proof aluminum housing with collared antenna and cable ports for increased durability. This set includes both L-bracket and 3/8"-16 threaded mounting options. A short BNC cable (1'), and a USB cable are also included in this WVT-1 set.

Features

  • Up to 2000' uncompressed, real-time transmission with under 1 ms delay
  • Set includes cables for powering from an ARRI camera or splitter box, or from a 3-pin Fischer-type or D-tap-equipped third-party camera
  • Transmitter mounts to the included L-Bracket or 3/8"-16 adapter
  • Capable of multicasting to four WVR-1 receivers or the Transvideo Starlite ARRI-WFS monitor
  • 128-bit AES-encrypted signal with embedded 2-channel audio, timecode, and a REC flag function
  • 10-bit output is compatible with HDR monitoring
  • Rugged water-resistant, dustproof housing with 3/8"-16 threaded adapter
  • Input voltage of 10.5 to 34V is compatible with a wide range of batteries
  • Collared antenna and cable ports for added durability

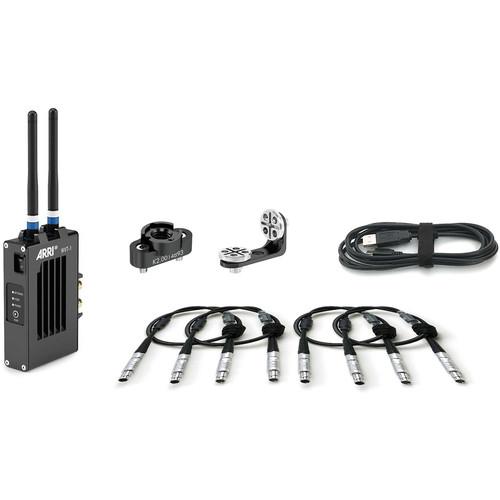

In the Box ARRI WV-1 Wireless Video Transmitter Set
  • 2 x Wireless Video / WiFi / ECS Antenna

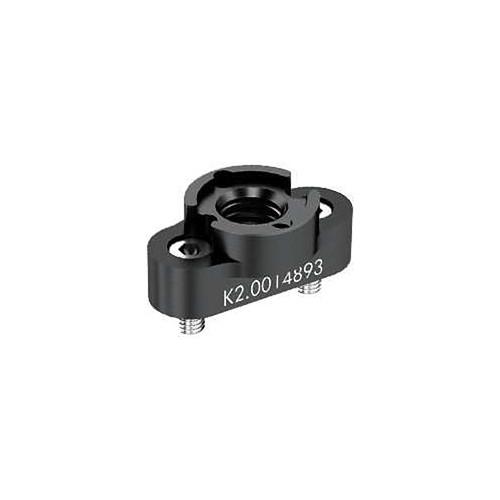

  • 3/8" Thread Adapter for ARRI Wireless Tx or Rx

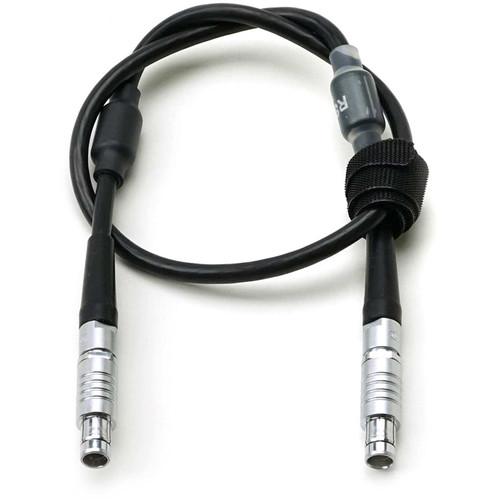

  • 2-Pin LEMO-Type to 3-Pin Fischer Cable (19")
  • UMC-4 RS IN to RS Cable (1.6') rtfuwewqtywaareyyrcsztdbcytuaeqys

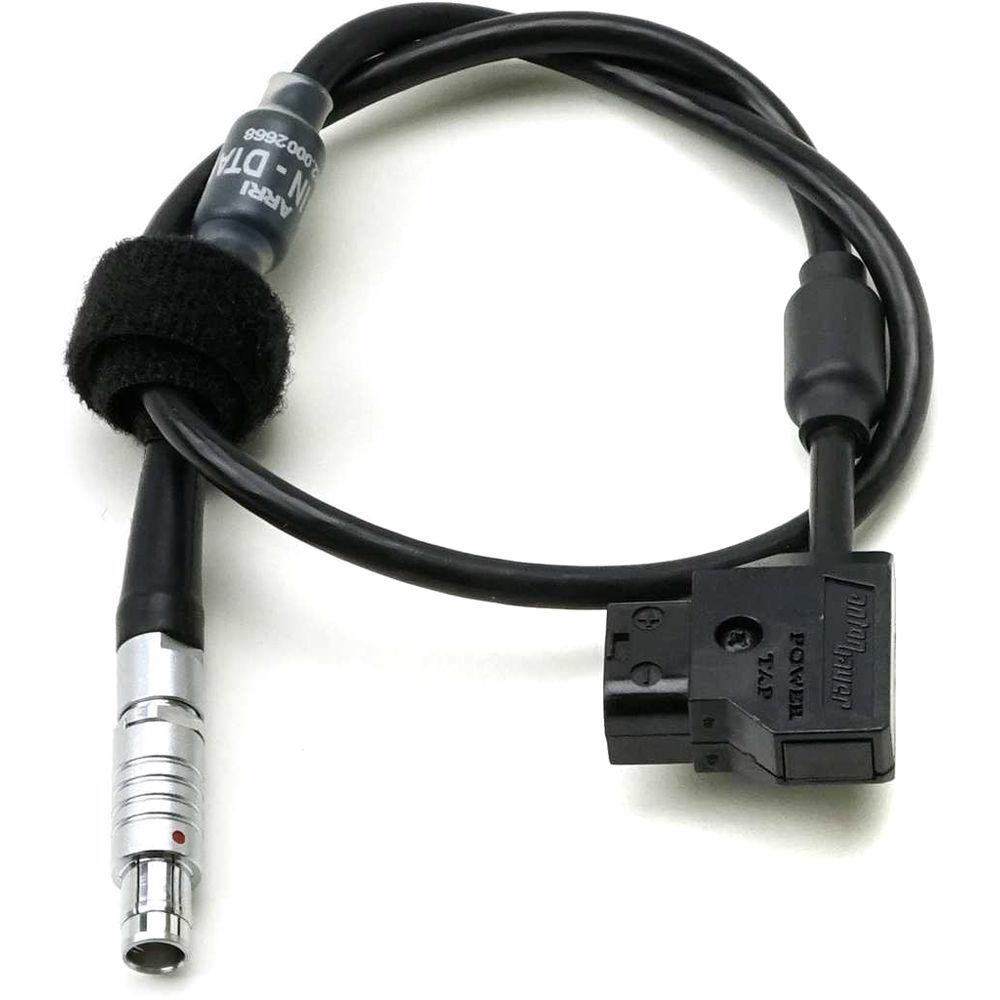

  • UMC-4 RS IN to D-Tap Power Source Cable (1.6')

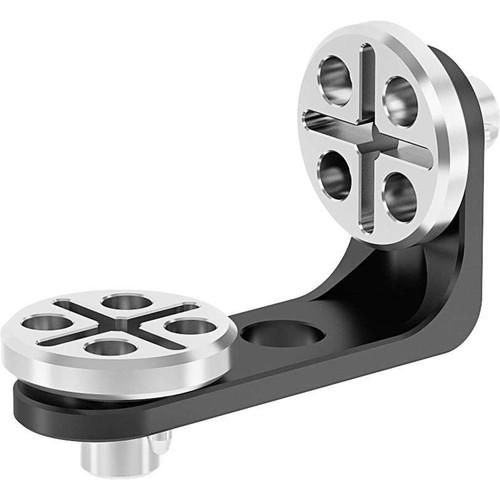

  • L-Bracket for Select Electronic Control Systems

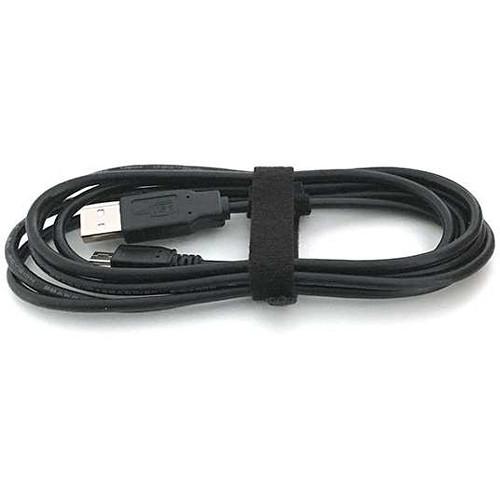

  • WVS USB Cable for Software Updates rtfuwewqtywaareyyrcsztdbcytuaeqys
  • HDTV BNC Cable (12")
  • Limited 1-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the ARRI WV-1 Wireless Video Transmitter Set in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    ARRI WVT-1 Specs

    Material of Construction Aluminum
    Frequency Band 5 GHz
    Transmission Range 1970' (600 m)
    Video Output 10-bit
    Input Voltage Range 10.5 to 34 V
    Operating Temperature Range -4 to 113°F (-20 to 45°C)
    Dimensions and Weight Not specified by manufacturer
    Package Weight 2.38 lb
    Box Dimensions (LxWxH) 14.5 x 11.8 x 2.7"
