User Manual for ARRI WVR-1 Wireless Video Receiver Click to enlarge the picture
Contents of the user manual for the ARRI WVR-1 Wireless Video Receiver
- Product category: Wireless Transmission Systems ARRI
- Brand: ARRI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ARRI Wireless Transmission Systems
 |
User manual for the ARRI WVR-1 Wireless Video Receiver contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ARRI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ARRI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ARRI product will considerably shorten its lifespan!
|

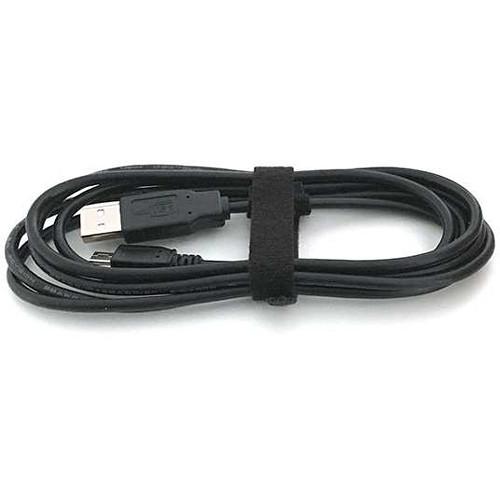

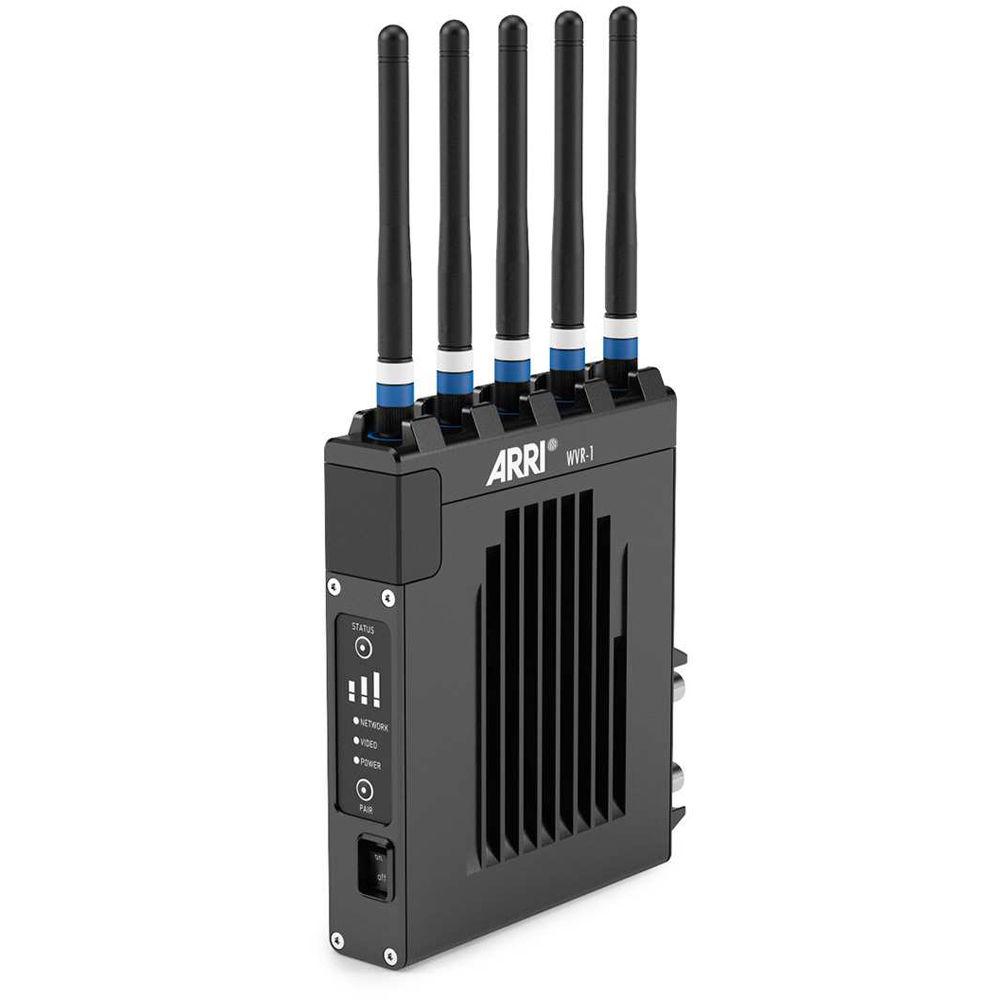

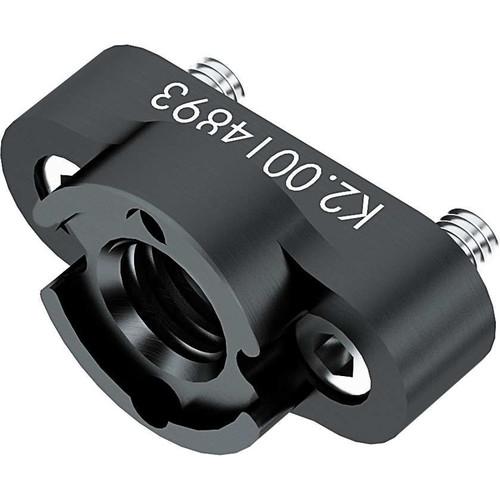

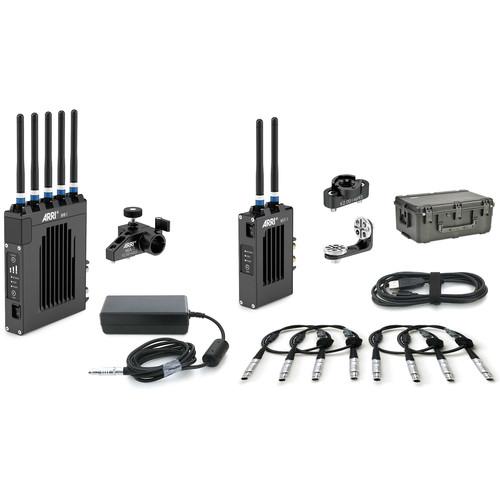

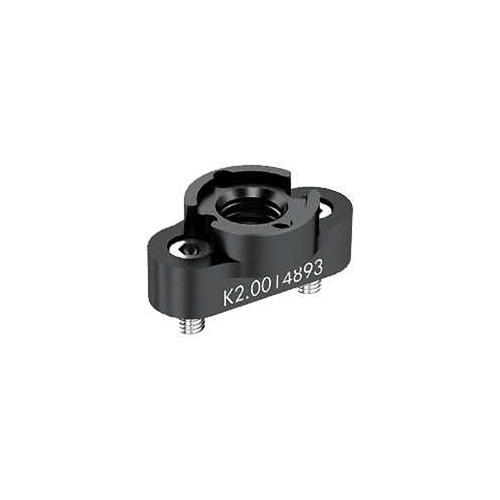

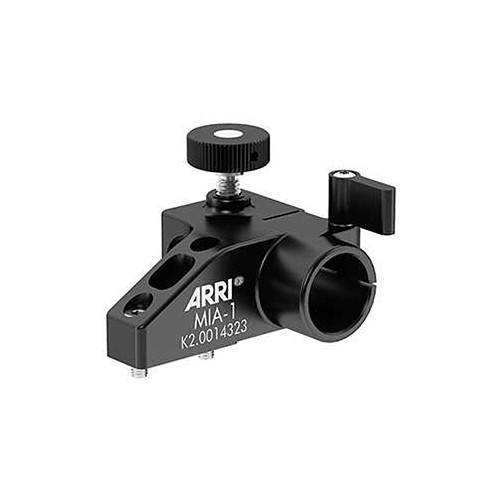

Product description The ARRI WVR-1 Wireless Video Receiver accepts video transmission from the ALEXA SXT W internal transmitter, or from the stand-alone ARRI WVT-1 transmitter. The ARRI wireless video system provides real-time, uncompressed wireless transmission for ARRI or third-party cameras up to approximately 2000' with under 1 ms of delay. Up to four WVR-1 Receivers may be paired with each ALEXA SXT W internal transmitter, or stand-alone WVT-1 transmitter (available separately). Dual-channel audio, timecode, and a REC flag function are included in the 128-bit AES-encrypted signal. The WVR-1's 10-bit output is compatible with HDR monitoring. Designed for daily use on professional sets, the WVR-1 features a rugged, water-resistant and dust-proof design with protective connector collars. This receiver accepts power voltages ranging from 10.5 to 34V, suiting it for use with a wide range of batteries. With an inclusive operating temperature of -4 to 113°F, the ARRI wireless video system is suitable for a variety of locations. Five antennas, an RPS-1 power supply, and a USB cable are included with this receiver. The included MIA-1 interface adapter mounts the WVR-1 to a 19mm rod or to a 5/8" light stud. Compatible battery options include Gold Mount, V-Mount, and Sony L-series (battery plates available separately). Note: Separately available battery-mounting plates are not included In the Box ARRI WVR-1 Wireless Video Receiver 5 x Wireless Video / WiFi / ECS Antenna MIA-1 Multi-Interface Adapter for ARRI Wireless Tx or Rx RPS-1 Receiver Power Supply WVS USB Cable for Software Updates Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ARRI WVR-1 Wireless Video Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersARRI WVR-1 Specs | Material of Construction | Aluminum | | Frequency Band | 5 GHz | | Transmission Range | 1,970' (600 m) | | Video Output | 10-bit | | Input Voltage Range | 10.5 to 34 V | | Operating Temperature Range | -4 to 113°F (-20 to 45°C) | | Dimensions and Weight | Not specified by manufacturer |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 23 owners. Add your rating and experience with the product.
