User Manual for ARRI X-Fly 20 6.5' Friction Pantograph Click to enlarge the picture
Contents of the user manual for the ARRI X-Fly 20 6.5' Friction Pantograph
- Product category: Rail Components ARRI
- Brand: ARRI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ARRI Rail Components
|
User manual for the ARRI X-Fly 20 6.5' Friction Pantograph contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ARRI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ARRI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ARRI product will considerably shorten its lifespan!
|

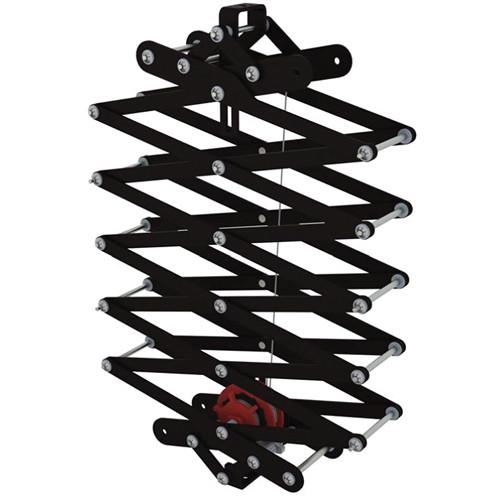

Product description ARRI offers a vast range of suspension equipment for TV studios and theaters, incorporating pantographs, hoists and telescopes, as well as various rail systems, carriages and accessories that free up studio floor space by situating the lighting overhead. This ARRI X-Fly 20 6.5' Friction Pantograph comes completely factory assembled with a choice of optional adapters at the top and bottom. The double scissors mechanism provides the rigidity to stabilize loads of up to 40 lb (18 kg) using optional counter balance springs. Clips to attach a power cord for a lighting circuit are included. The patented built in friction brake with its colored notched ring allows you to adjust the friction to ensure the load will float once set into position, but will move smoothly up and down when necessary. Note: Loads over 8.8 lb (4.0 kg) require separate purchase of counter balance springs. - Designed to meet DIN EN15560-46, BG VC1 standards
- Clips to attach flexible power cord to scissors
- Designed with a safety factor of 10
- 2.0 mm diameter steel cable as load carrier
In the Box ARRI X-Fly 20 6.5' Friction Pantograph Set of Power Cord Clips 1 Year Manufacturer's Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ARRI X-Fly 20 6.5' Friction Pantograph in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersARRI L2.0005317 Specs | Travel | Maximum Extension: 6.5' (2.0 m)
Closed Length: 10.6" (0.27 m) | | Load Capacity | Without optional counter balance springs: 8.8 lb (4.0 kg)
With optional counter balance springs: 40 lb (18 kg) | | Mount | Body Only | | Dimensions | WxD: 15.8 x 4.7" (400 x 120 mm) (w/o electrical cable attached) | | | | Package Weight | 13.5 lb | | Box Dimensions (LxWxH) | 23.6 x 17.6 x 7.0" |
