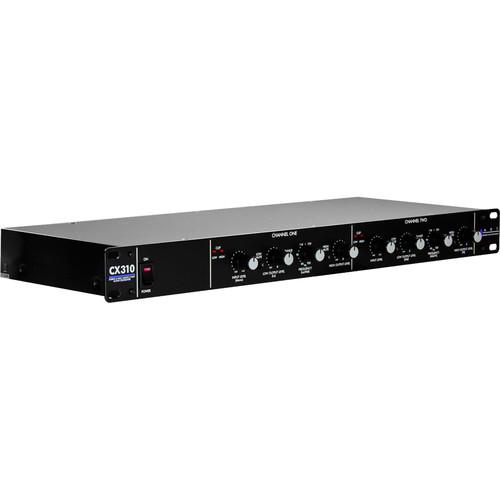

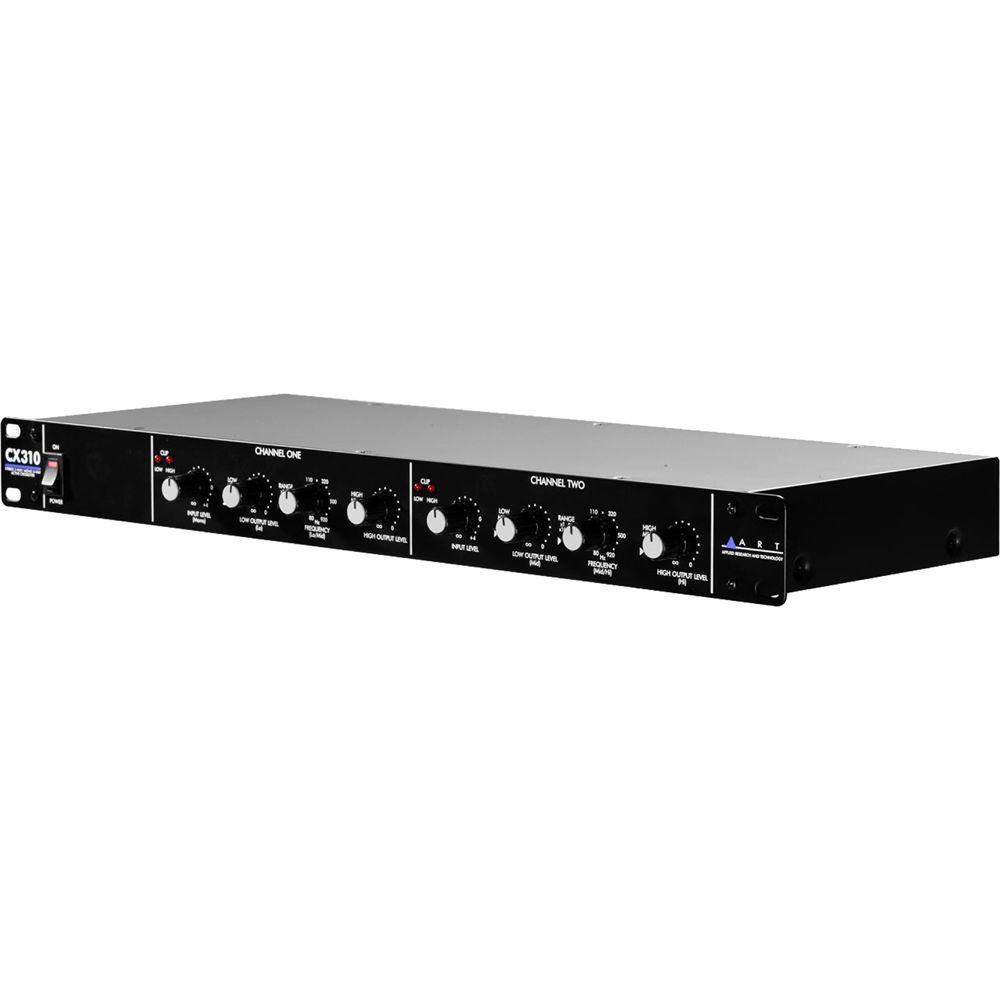

User Manual for ART 310 Stereo 2-Way Mono 3-Way Crossover Click to enlarge the picture
Contents of the user manual for the ART 310 Stereo 2-Way Mono 3-Way
- Product category: Crossovers ART
- Brand: ART
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ART Crossovers
 |
User manual for the ART 310 Stereo 2-Way Mono 3-Way contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ART product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ART user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ART product will considerably shorten its lifespan!
|

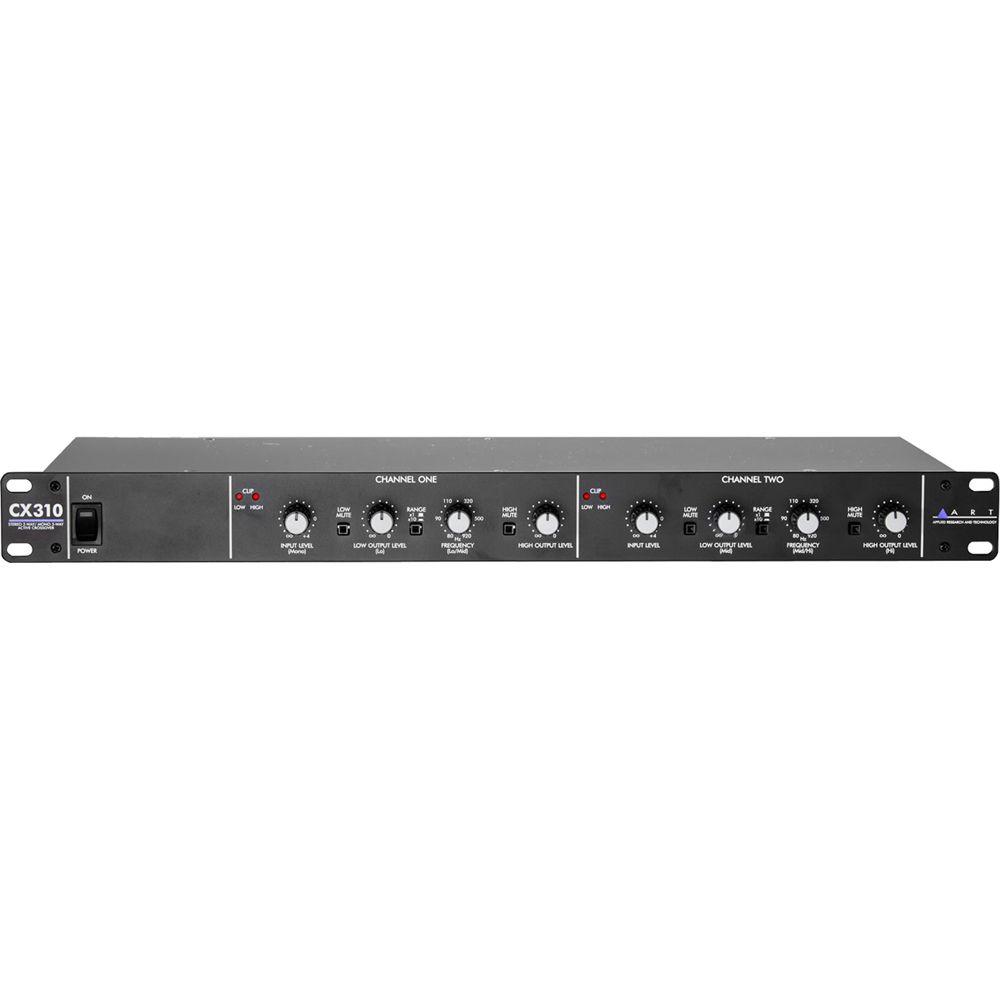

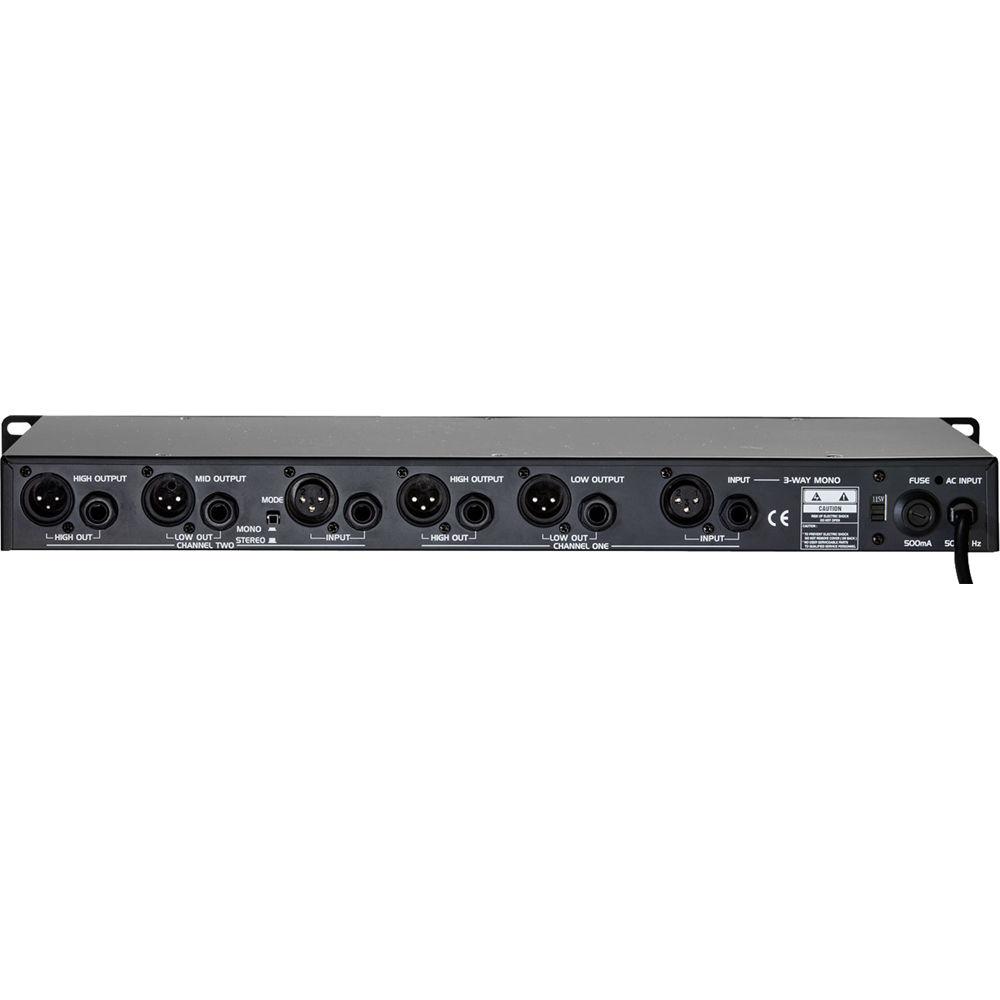

Product description ART's 310 precision crossover is designed for PA and fixed-installation applications and can be used as a stereo 2-way crossover network or as a mono 3-way crossover network. The crossover employs 24dB/octave state-variable, fourth-order, Linkwitz-Riley filters. Fourth-order Linkwitz-Riley filters guarantee in-phase outputs at all frequencies which is mandatory for the proper acoustic summing of common signals from adjacent drivers in the crossover region. Each channel features input level, high and low output level and crossover frequency rotary controls. A frequency "x10" switch is provided for varying the crossover frequency from the standard 80Hz - 920Hz to 800Hz - 9200Hz. Front panel output mute switches are provided for each individual output to ease system setup. The rear panel features XLR and active balanced 1/4" TRS input and output connectors as well as a 2-way/ 3-way mode selector switch. The 310 has an internal power supply. - Stereo two-way or mono three-way configurations
- Fourth-order Linkwitz-Riley filters
- Individual output muting switches
- x10 frequency range adjusting switch
- Clipping indicators on all outputs
- Rugged all-steel construction
UPC: 840402019176 In the Box ART 310 Stereo 2-Way/Mono 3-Way Crossover AC Power Cable One (1) Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ART 310 Stereo 2-Way Mono 3-Way Crossover in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersART CX310 Specs | Filter Type | Fourth-order Linkwitz-Riley | | Operating Modes | Stereo 2-way, switchable to mono 3-way | | Crossover Frequencies | 800Hz to 9.2kHz, 80Hz to 920Hz using divide-by-10-range switch | | Gain Range | Input level: Off to +4dB | | Front Panel Switches | Low mute
High mute
Mode | | Inputs | 2 x XLR, 2 x 1/4" TS phono | | Outputs | 4 x XLR, 4 x 1/4" TS phono | | Maximum Input Level | +13dB | | Maximum Output Level | +21dBu | | Frequency Response | 10Hz to 20kHz, +0/-1.5dB | | Dynamic Range | >85dB | | Noise | SNR: 118dB | | Dimensions (WxDxH) | 19" x 8 1/2" x 1 3/4" | | Weight | 5 lbs | | Specialties | Separate high and low clip indicators are provided for each frequency band | | | | Package Weight | 7.35 lb | | Box Dimensions (LxWxH) | 20.8 x 11.1 x 3.4" |
