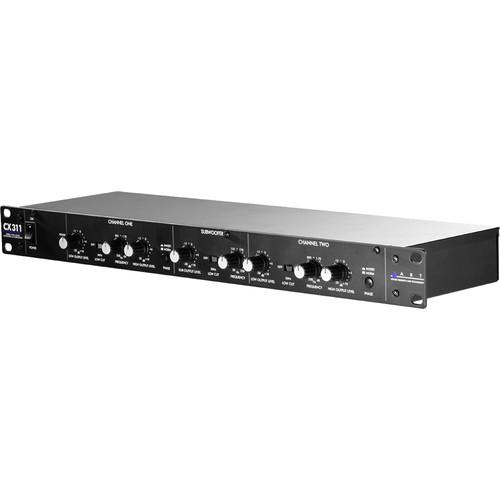

User Manual for ART 311 2-Way Crossover with Subwoofer Output Click to enlarge the picture
Contents of the user manual for the ART 311 2-Way Crossover with Subwoofer
- Product category: Crossovers ART
- Brand: ART
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ART Crossovers
 |
User manual for the ART 311 2-Way Crossover with Subwoofer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ART product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ART user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ART product will considerably shorten its lifespan!
|

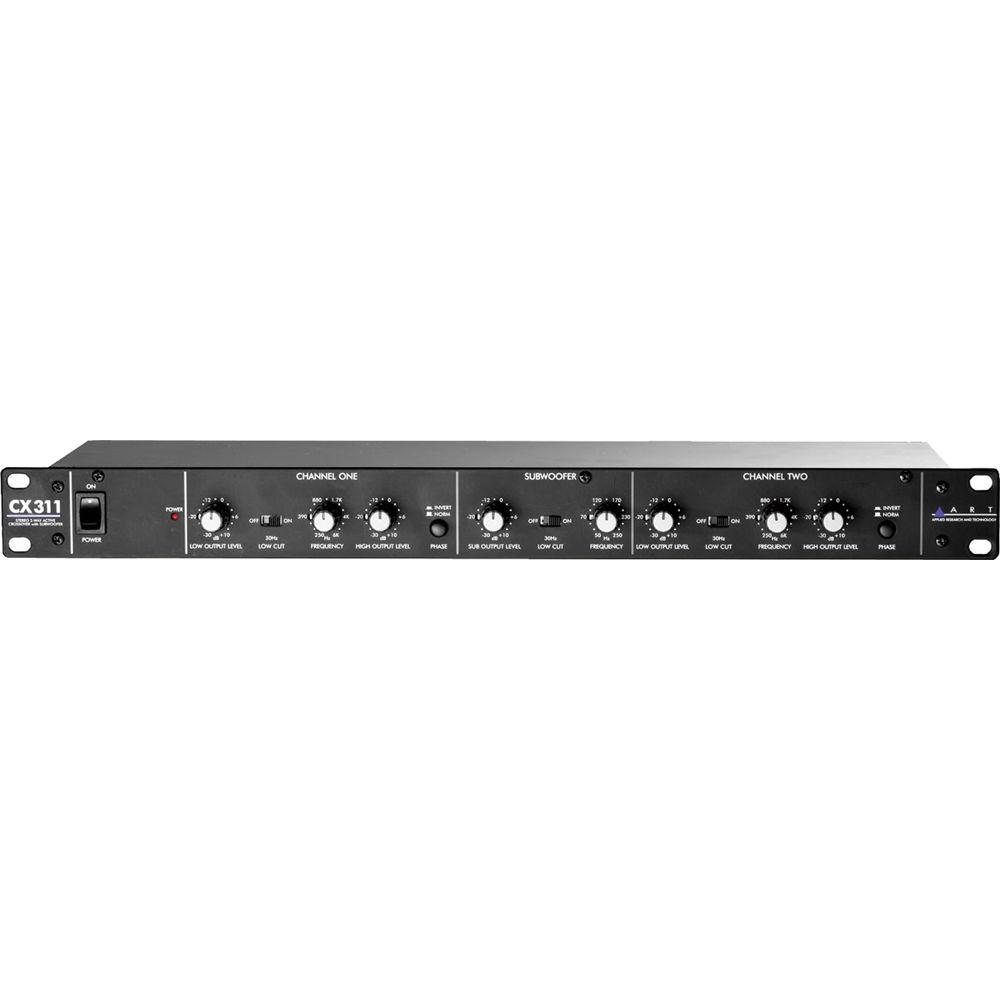

Product description The 311 crossover from ART may be used as a stereo 2-way crossover network and has the addition of the subwoofer output for low-end frequency reinforcement. It employs 24dB/octave state-variable, Fourth-order Linkwitz-Riley filters that guarantee properly phased outputs at all frequencies. Each channel features independent high and low output level controls and a crossover frequency rotary control which covers a wide range of 250Hz to 6kHz. All three outputs have a 30 cycle low cut switch to eliminate low-end rumble. The subwoofer features an independent output level and rotary control for frequencies in the 50Hz to 250Hz range. - Stereo 2-way crossover with subwoofer output
- 24dB/octave state-variable Fourth-order Linkwitz-Riley filters
- Independent high and low output level controls
- Independent subwoofer output level and rotary control (50Hz to 250Hz)
- Crossover frequency rotary control
UPC: 840402011477 In the Box ART 311 2-Way Crossover with Subwoofer Output AC Power Cable One (1) Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ART 311 2-Way Crossover with Subwoofer Output in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersART CX311 Specs | Filter Type | Fourth-order Linkwitz-Riley, 24dB/octave, state-variable
Subwoofer: Two-pole Butterworth, 12dB/octave | | Operating Modes | Stereo 2-way | | Crossover Frequencies | 250Hz to 6kHz | | Gain Range | -30dB to +10dB | | Front Panel Switches | 30Hz Low Cut

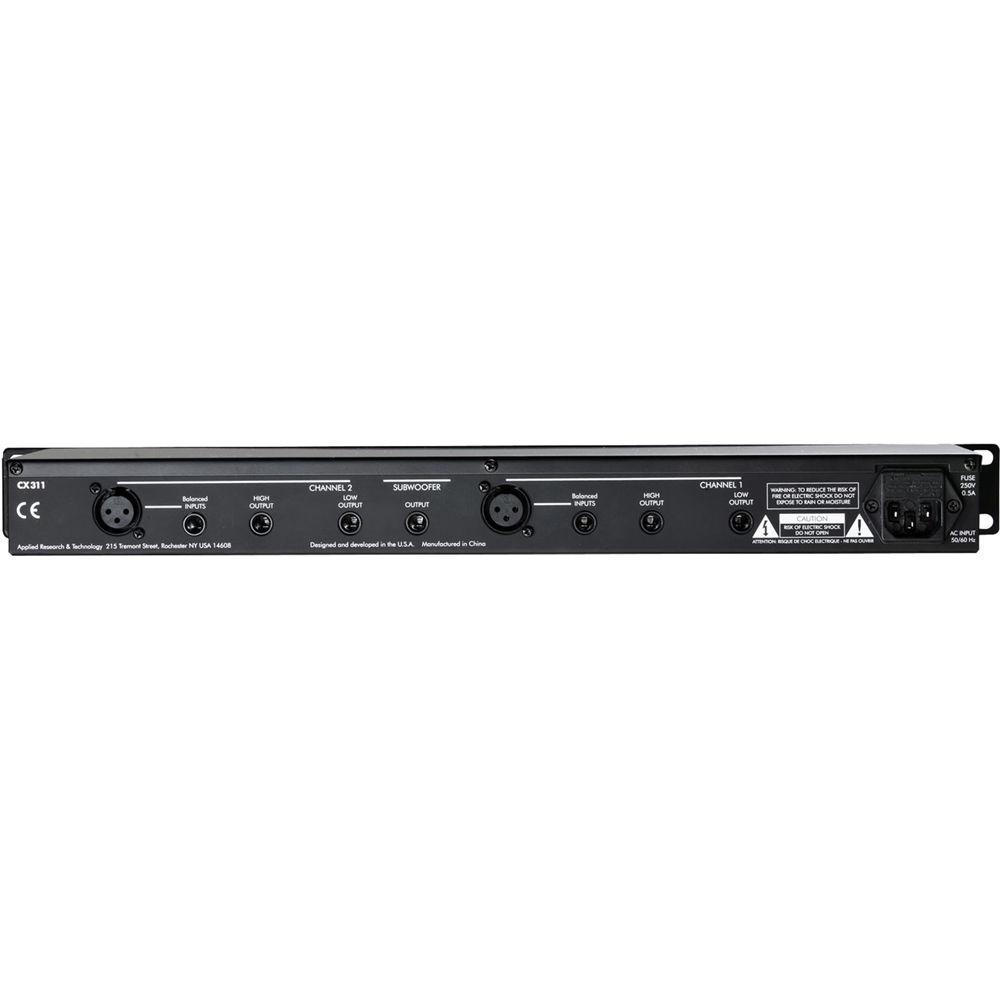

Phase Invert | | Inputs | 2 x XLR
2 x 1/4" TRS phone | | Outputs | 5 x 1/4" TS phone | | Maximum Input Level | +21dBu | | Maximum Output Level | +21dBu | | Frequency Response | 10Hz to 40kHz, +/-0.5dB | | Dynamic Range | >114dB | | Noise | >95dB, reference 0dBu, 20Hz to 20kHz, unweighted | | Dimensions (WxDxH) | 19" x 5 1/2" x 1 3/4" | | Weight | 4.9 lbs | | Specialties | 30 cycle low cut switch | | | | Package Weight | 5.82 lb | | Box Dimensions (LxWxH) | 21.1 x 11.0 x 3.6" |
