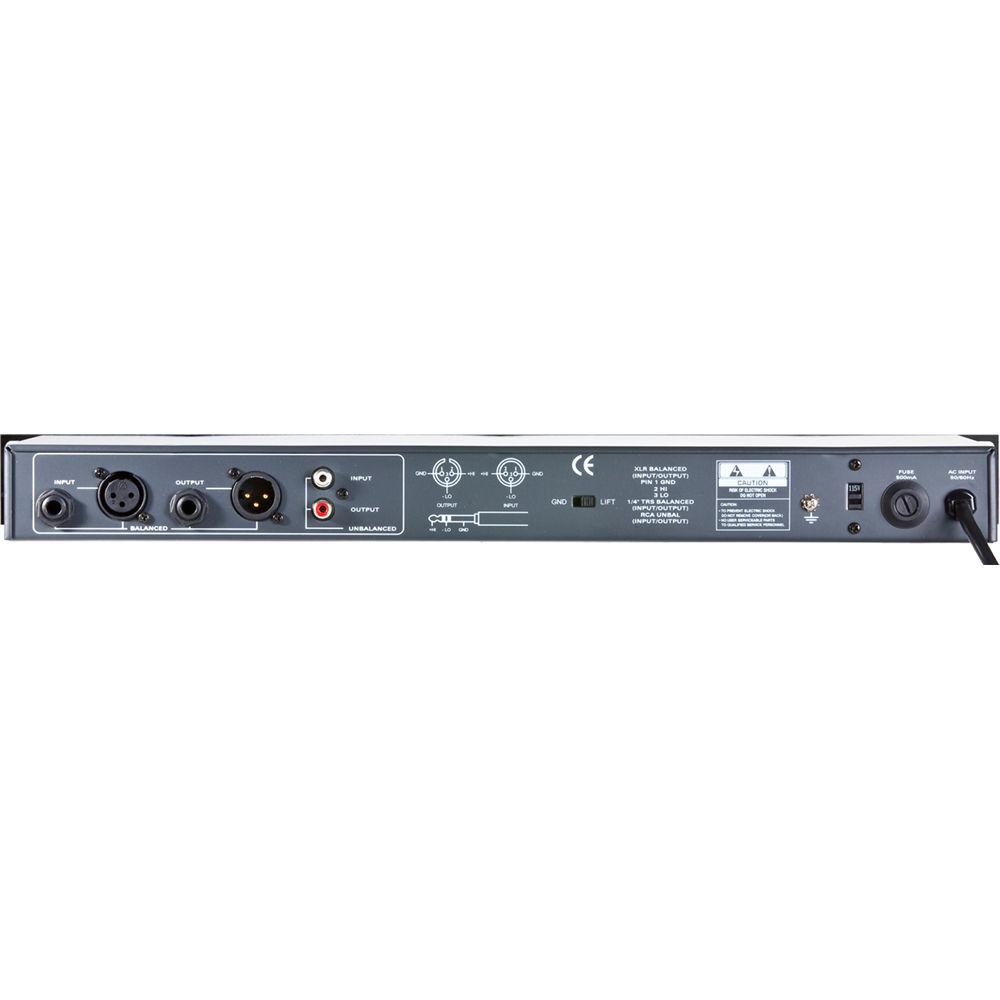

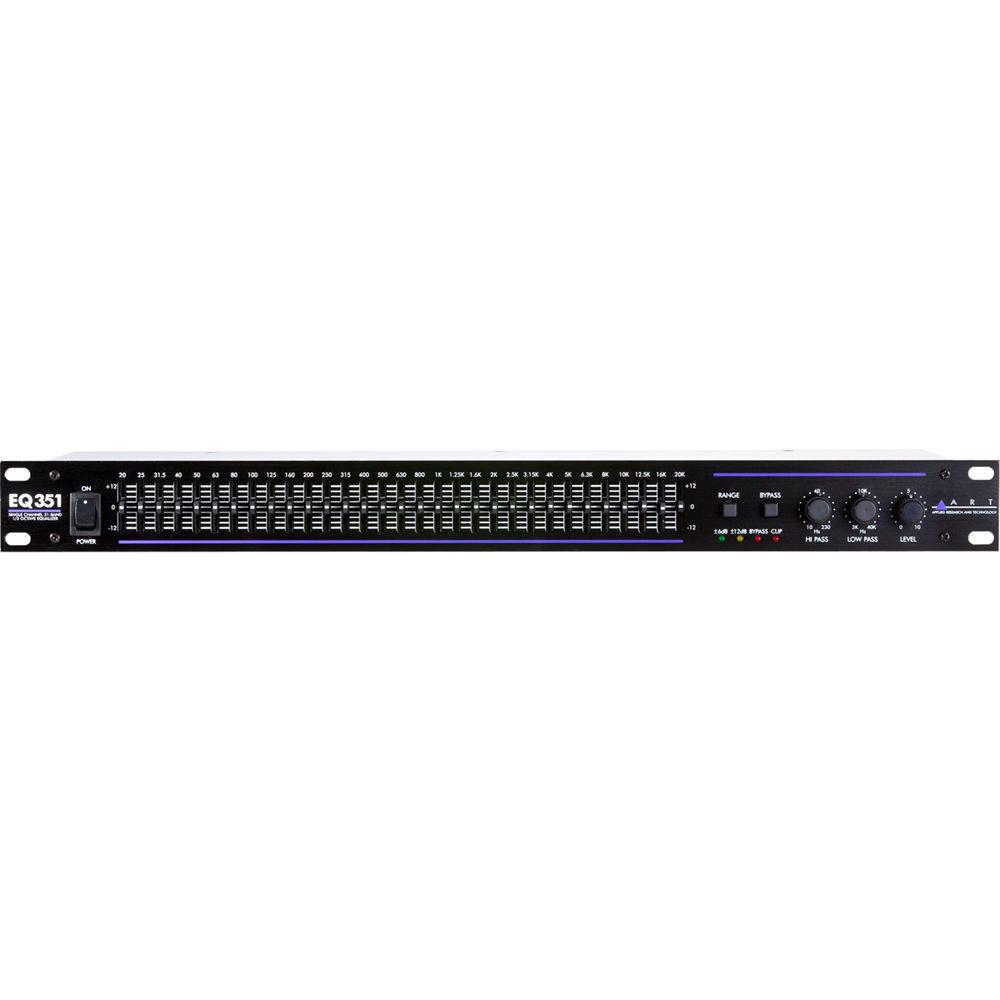

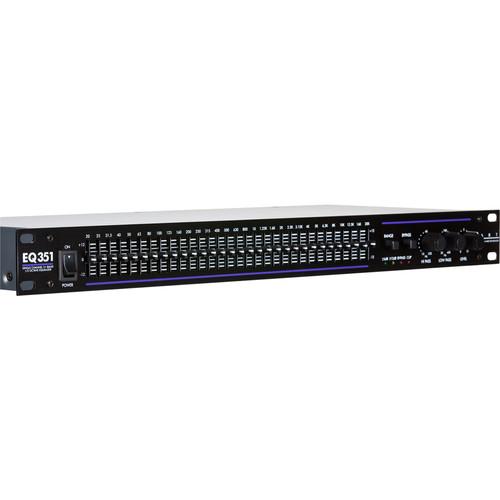

Product description The 351 single channel, 31 band 1/3 octave graphic equalizer features constant Q circuitry, with a 3% center frequency accuracy. The sliders are 20mm center detent with a selectable boost/cut range, and the unit provides active balanced and unbalanced input and output connections, adjustable high pass and low pass filters, variable input level control, clip level indicators, ground lift switch, internal power supply with selectable line voltage switch. The 351 has a bypass switch with LED indicator, is housed in a rugged, all-steel constructed chassis which occupies 1U rack space, and is intended for installation in standard 19" equipment racks. Multiple input and output configurations are provided for ease of use and incorporate paralleled connections. The XLR and 1/4" TRS connectors use active balanced, low noise circuitry. Both the XLR and 1/4" connectors may be used in an unbalanced configuration. The RCA jacks are unbalanced. The unit is designed to work with a variety of signal levels. The input level control covers a wide range and can easily accommodate -10 and +4 signal levels. The 351 may be used in a variety of applications such as live sound, recording studios, instrument racks, as well as any conventional fixed installation environment. - Single channel 31 band 1/3 octave graphic equalizer
- 20mm center detent sliders
- Selectable boost/cut range of 6dB or 12dB
- Variable high-pass and low-pass filters
- Variable input level control
- Active balanced and unbalanced input and output connections
UPC: 840402011514 In the Box ART 351 - Single Channel 31-Band 1/3 Octave Graphic Equalizer Power Cable One Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ART 351 - Single Channel 31-Band 1 3 Octave Graphic Equalizer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersART EQ351 Specs | Filter Type | Graphic, constant Q - 3% center accuracy | | Number of Channels | 1 | | Inputs | 1 x XLR, 1 x 1/4" TRS phono, 1 x RCA coaxial | | Output | 1 x XLR, 1 x 1/4" TRS phono, 1 x RCA coaxial | | Maximum Input Level | +22dBm | | Frequency Bands | 31, ISO spacing | | Bandwidth | 1/3 octave | | Range (Boost/Cut) | +/-6dB or +/-12dB selectable | | Maximum Output Level | +18dBm @ +4db | | Frequency Response | 20Hz to 20kHz | | Dynamic Range | Not specified by manufacturer | | Noise | -94dB | | Dimensions | 1U rack, 8 1/2" deep | | Specialties | Ground lift switch
Selectable line voltage switch | | | | Package Weight | 6.9 lb | | Box Dimensions (LxWxH) | 21.2 x 10.5 x 3.6" |
