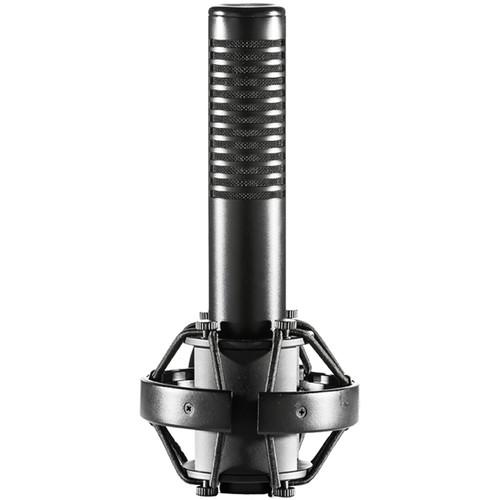

User Manual for ART AR5 Active Ribbon Microphone Click to enlarge the picture
Contents of the user manual for the ART AR5 Active Ribbon Microphone
- Product category: Ribbon Microphones ART
- Brand: ART
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ART Ribbon Microphones
|
User manual for the ART AR5 Active Ribbon Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ART product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ART user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ART product will considerably shorten its lifespan!
|
Product description The AR5 Active Ribbon Microphone from ART features an active preamp module, a figure-8 pickup pattern, and is powered by 48V phantom power. It delivers the classic ribbon tone with an increased output, a more stable frequency, and a better dynamic response that can be used with various differing-input channel strips or preamps for live stage, recording studios, and more. The AR5 can handle high sound-pressure levels approaching a 150 db range. The low-tension 2-micron aluminum ribbons offer audio reproduction with smooth, natural, extended low- and high-frequency responses. It is built with a precision-tooled body and dent-resistant, stainless-steel wire-mesh windscreen that offers long-term reliability. Furthermore, the included shockmount virtually eliminates vibration and handling noise, while at the same time safely secures the microphone in any position needed during the recording process. An aluminum carry case is also included. UPC: 840402040521 In the Box ART AR5 Active Ribbon Microphone Shockmount Aluminum Carry Case Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ART AR5 Active Ribbon Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersART AR5 Specs | | | Sound Field | Mono | | Operating Principle | Pressure Gradient | | Transducer | Ribbon | | Polar Pattern | Figure-8 | | Frequency Range | 20 Hz to 18 kHz | | Signal to Noise Ratio | 69 dB A-Weighted | | Maximum SPL | 150 dB SPL RMS | | THD | 1% | | Impedance | 100 Ohms | | Load Impedance | 1000 Ohms | | Sensitivity | -42 dB at 1 | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Voltage | 48 V | | Length | 6.9" / 175.26 mm | | Diameter | 1.1" / 27.94 mm | | | | Package Weight | 2.8 lb | | Box Dimensions (LxWxH) | 9.8 x 8.0 x 4.0" |
