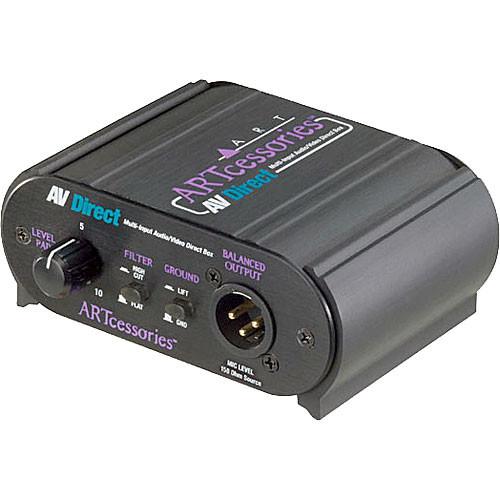

User Manual for ART AV Direct - Multi-Input Audio Video Direct Box Click to enlarge the picture
Contents of the user manual for the ART AV Direct - Multi-Input Audio
- Product category: Direct Boxes ART
- Brand: ART
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ART Direct Boxes
|
User manual for the ART AV Direct - Multi-Input Audio contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ART product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ART user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ART product will considerably shorten its lifespan!
|
Product description The AV Direct from ART is a direct box with a very specific purpose. It is the ideal solution for any situation where stereo iPods, notebook computers, consumer DVD players HiFi equipment or video machines have to be connected to a single XLR microphone level input. Unlike standard "gender bender" cables or DI boxes, the AV Direct can accept virtually any input connection and output level (including amplified speaker outputs) and offers remote level control, ideal for setting the volume of a component at the source, rather than in an AV room, audio closet or installation rack. The AV Direct has stereo RCA, 1/8-inch and 1/4-inch TRS line level inputs, as well as a 1/4-inch and bare wire pressure clip speaker level inputs. A switchable high-cut filter and ground lift allow the AV Direct to effectively filter out any extraneous noise. The speaker level inputs are heavily padded and transformer isolated from the XLR output, allowing amplified speaker level (up to 100 watts @ 8Ω) to be tapped off, and sent to a microphone level input. A 20Hz to 20kHz frequency response ensures the AV Direct will function seamlessly with any high quality audio source. - Multi-input audio/video passive direct box
- Transformer isolated XLR microphone level output
- Stereo RCA, 1/8" and 1/4" TRS line level inputs
- Mono 1/4" and pressure clip speaker level inputs
- Switchable low-pass filter
UPC: 840402018193 In the Box ART AV Direct - Multi-Input Audio/Video Direct Box Ninety (90) Day Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ART AV Direct - Multi-Input Audio Video Direct Box in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersART AVDIBOX Specs | Type | Passive | | Input Connections | 2 x RCA phono
1 x 1/4" TRS phone
1 x 1/8" stereo mini
1 x 1/4" TS phone Speaker Level
2 x Pressure Clip Speaker Level | | Output Connectors | 1 x XLR | | Input Level | Not specified by manufacturer | | Output Level | Not specified by manufacturer | | Controls | 1 x Rotary Control Level Pad
1 x Ground Lift Switch
1 x Filter I/O | | Frequency Response | 20Hz to 20kHz | | Noise | Not specified by manufacturer | | Power | Not applicable | | Dimensions (WxDxH) | 4.6 x 4.7 x 1.75" (117 x 119 x 45mm) | | Weight | 1.3 lbs (0.6 kg) | | Specialties | Switchable 4.8kHz high-cut filter | | | | Package Weight | 0.945 lb | | Box Dimensions (LxWxH) | 6.8 x 5.05 x 2.85" |
Rating96% users recommend this product to others. And what about you?
This product has already been rated by 77 owners. Add your rating and experience with the product.
