User Manual for ART C3 Multi-Pattern FET Condenser Microphone Click to enlarge the picture
Contents of the user manual for the ART C3 Multi-Pattern FET Condenser Microphone
- Product category: Large Diaphragm Condenser ART
- Brand: ART
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ART Large Diaphragm Condenser
 |
User manual for the ART C3 Multi-Pattern FET Condenser Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ART product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ART user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ART product will considerably shorten its lifespan!
|

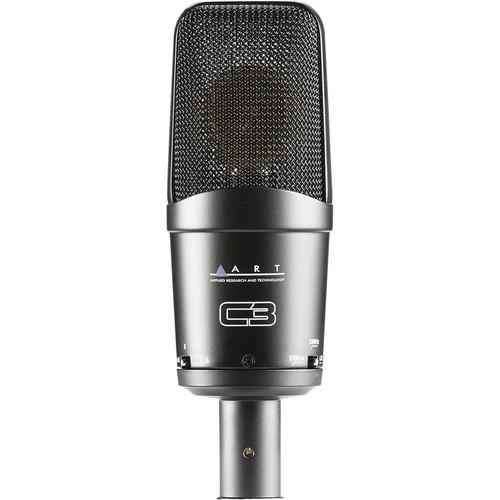

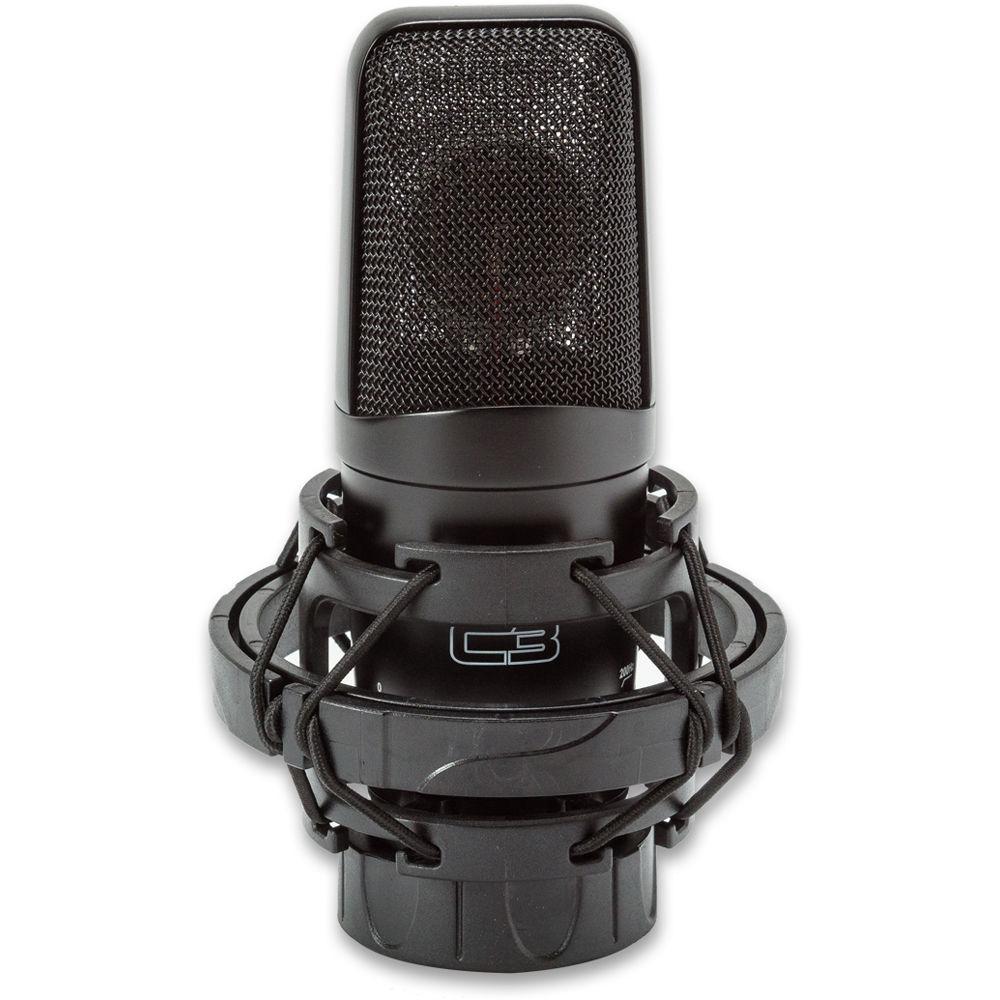

Product description The ART C3 Multi-Pattern FET Condenser Microphone features three selectable polar patterns, a three-position low-frequency roll-off, and a three-position pad switch, all of which ensure the C3 can easily be applied to virtually any recording or live application.The C3 is the microphone of choice for recording critical tracks including solo vocals, saxophones, flutes, brass or woodwinds, acoustic guitars, or acoustic bass. Due to its rugged construction and ability to handle high SPL, the C3 is a suitable choice for live sound reinforcement or live recording applications. It can handle the levels you'd see on an overhead mic for drum kits or in front of guitar or bass cabinets.Controls on the microphone itself include a -6 dB & -12dB pad switch, allowing distortion-free reproduction of extremely loud at-source signals, and a -12 dB/octave low-frequency roll-off switchable between 100 Hz & 200 Hz that reduces unnecessary low-end ‘boominess' and low-frequency interference.The included heavy-duty shockmount suspension virtually eliminates vibration and handling noise, while at the same time safely securing the microphone in any position needed during the recording process.The C3 offers three polar patterns, with the cardioid pattern offering full-frequency response from the front side of the microphone. The cardioid pattern is ideal for single-instrument or vocal use. The pattern picks up sound directly in front of the mic, rejecting much of the sound from the back and sides. In live sound applications and remote recording, the ART C3's cardioid pattern offers excellent feedback rejection and better isolation than the other patterns, and will give you the best results on most vocal applications and a wide range of solo instruments, including background brass and woodwinds, acoustic stringed instruments (violin, viola and cello), drums, and percussion.The omnidirectional pattern picks up sound equally from all around the microphone and is useful for recording ambient sounds or picking up the room sound in studios and other acousitcally exceptional places—in both vocal and instrument recording. It's also a good choice for picking up audience interaction in live settings.The bi-directional pattern, or figure-8, picks up sound from the front and the back of the mic for solo vocal or instrument recording with some studio ambience and limited proximity effect. It's also an excellent choice for duet and harmony vocal recordings featuring two singers.As a condenser microphone, the ART C3 requires phantom power to operate. The microphone's precision-tooled body and dent-resistant stainless-steel wire-mesh windscreen protect the internal electronics and capsule, ensuring unmatched long-term reliability. The C3 comes equipped with an extremely secure custom shockmount. An aluminum carry case is also included. - Exceptionally warm-sounding FET design
- Smooth frequency response

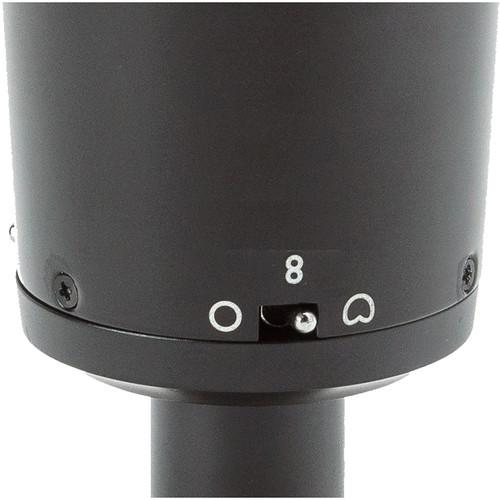

- Cardioid, omnidirectional, and figure-8 polar patterns

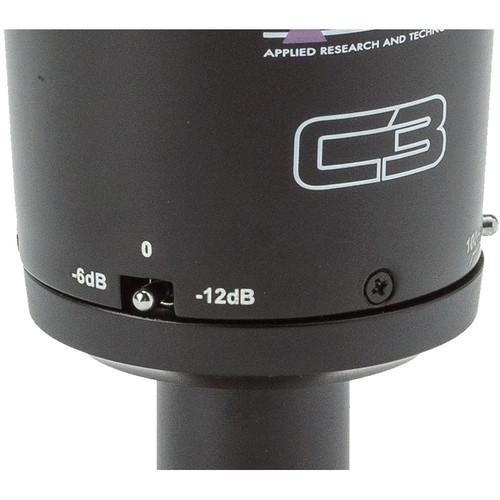

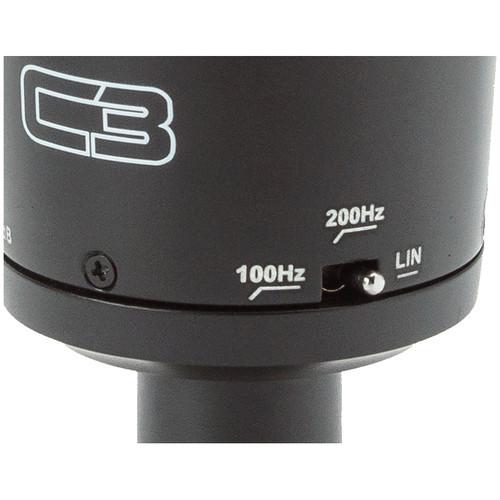

- Three-position pad (Off, -6 dB, -12 dB) & high-pass filter (Off, 100 Hz, 200 Hz)
- 34mm gold-sputtered diaphragm
- Wide dynamic range with low noise floor
- Secure cradle mount and hard case included

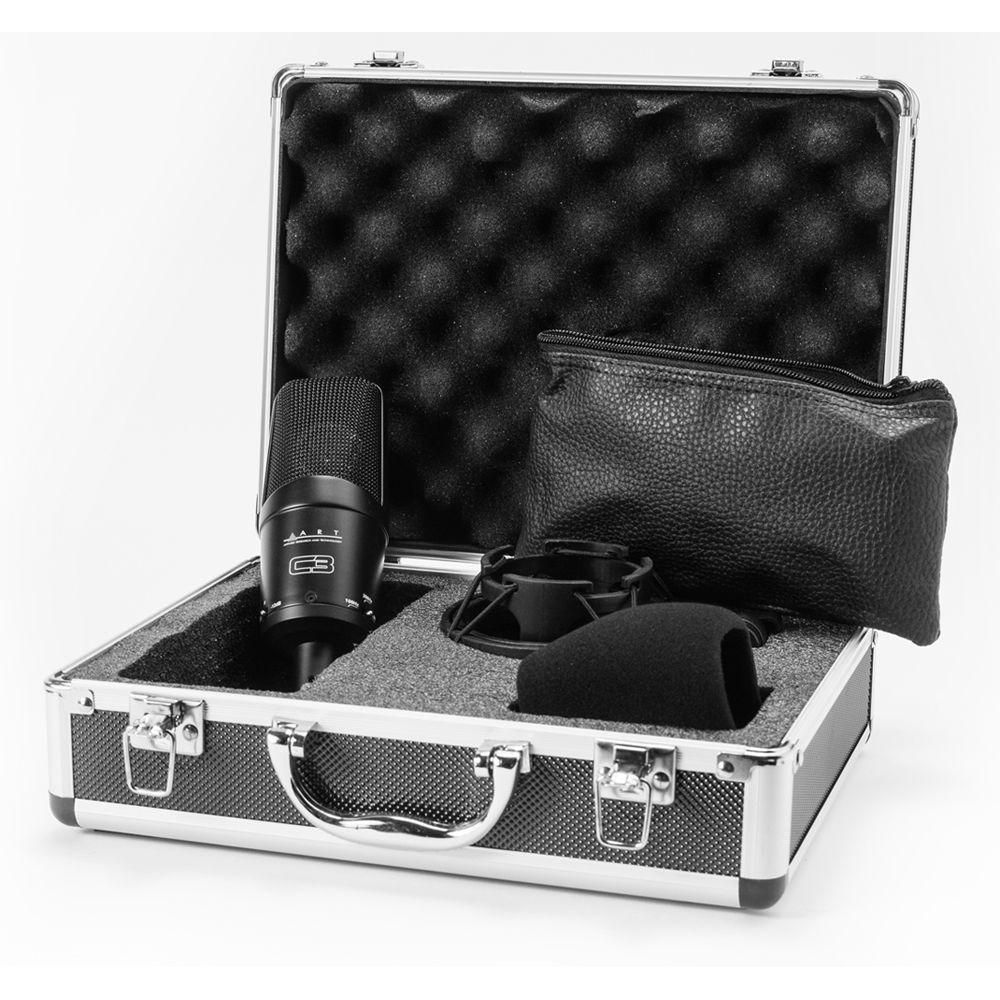

UPC: 840402040507 In the Box ART C3 Multi-Pattern FET Condenser Microphone Limited 3-Year Warranty Shockmount Hard Case Table of Contents
|
Upload User Manual
Have you got an user manual for the ART C3 Multi-Pattern FET Condenser Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersART C3 Specs | | | Sound Field | Mono | | Transducer | Condenser | | Diaphragm | 1.34" / 34 mm | | Polar Pattern | Cardioid, Figure-8, Omnidirectional | | Pattern Selection | Switched | | Frequency Range | 20 Hz to 20 kHz | | Signal to Noise Ratio | Cardioid: 78 dB | | Equivalent Noise Level | Cardioid: 16 dB | | Maximum SPL | Cardioid: 132 dB SPL | | Pad | -6 dB
-12 dB | | Impedance | Cardioid: 150 Ohms | | Load Impedance | 1000 Ohms | | Sensitivity | Cardioid: -37 dB | | Low-Cut Filter | 12 dB/Octave @ 100 Hz
12 dB/Octave @ 200 Hz | | | | Operating Voltage | 48 V | | Length | 6.6" / 167.64 mm | | Diameter | 2.2" / 55.88 mm | | | | Package Weight | 3.9 lb | | Box Dimensions (LxWxH) | 12.5 x 10.2 x 4.2" |
