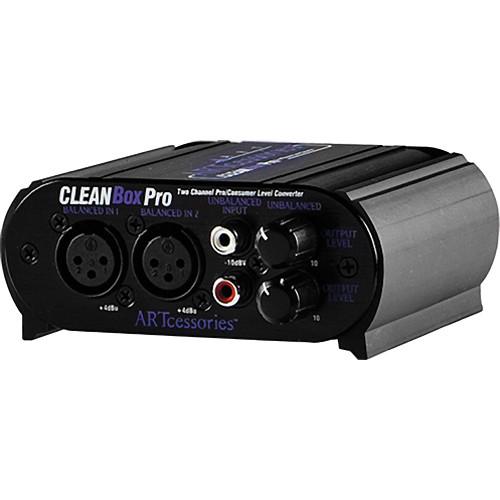

User Manual for ART CLEANBOX Bi-Directional Level Matching Stereo Converter Box - XLR and RCA I O Connectors Click to enlarge the picture
Contents of the user manual for the ART CLEANBOX Bi-Directional Level Matching Stereo
- Product category: Level Matching Transformers ART
- Brand: ART
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ART Level Matching Transformers
 |
User manual for the ART CLEANBOX Bi-Directional Level Matching Stereo contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ART product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ART user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ART product will considerably shorten its lifespan!
|
Product description The ART CLEANBoxPro provides two channels of unbalanced to balanced level conversion and two channels of balanced to unbalanced level conversion in a rugged, compact, and portable unit. Balanced lines offer increased immunity to external electrical noise, such as hum. Since a balanced system minimizes induced noise, it is the preferred method of connecting audio gear, especially when long lengths of cable are used.
One section of the CLEANBoxPro converts two channels of consumer-level unbalanced input signals into two channels of pro line-level balanced output signals. It has two RCA jack inputs and a stereo mini-phone jack input connected in parallel. The balanced output feeds two XLR male jacks.
The other section of the CLEANBoxPro converts two channels of line-level balanced input signals into two channels of consumer unbalanced output signals. It has two XLR female input jacks. The unbalanced output feeds two RCA jacks and a stereo mini-phone jack connected in parallel. Each section has stereo level controls to optimize signal levels. An LED indicator lights when power is applied.
The CLEANBoxPro can be used in application areas including, but not limited to home or professional recording studios, live sound, PA, permanent installs, DJ, AV, consumer HiFi, podcasting and broadcasting. The CLEANBoxPro can be used with: mixers, audio processors, laptop computers, computer sound cards, CD/DVD players, video gaming machines, MP3 player/recorders, powered monitors and digital audio workstations. -
- XLR connectors for balanced inputs and outputs
- RCA phono jacks and stereo 1/8" mini-phone jacks for unbalanced inputs and outputs
- Unbalanced output level control
- Balanced output level control
- Rugged extruded aluminum case
- Lighted On/Off switch
- Comes with external power supply for operation with AC mains
- Low noise, low distortion circuitry
UPC: 840402014102 In the Box ART CLEANBOX Bi-Directional Level Matching Stereo Converter Box - XLR and RCA I/O Connectors Power Adapter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ART CLEANBOX Bi-Directional Level Matching Stereo Converter Box - XLR and RCA I O Connectors in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersART CLEANBoxPro Specs | Signal to Noise Ratio | > 90 dB | | Frequency Response | 20 Hz to 20 kHz, +/-1 dB | | Input Impedance | Balanced - 100 ohms
Unbalanced - 300 ohms | | Maximum Gain | Balanced to Unbalanced: -6 dB
Unbalanced to Balanced: +21 dB | | Maximum Input Level | +21 dBu | | Maximum Output Level | Balanced: +21 dBu
Unbalanced: +15 dBu | | Output Impedance | Balanced: 100 ohms
Unbalanced: 300 ohms | | Power Requirements | 7.5 - 12 V AC/DC, < 150 mA | | Total Harmonic Distortion | < 0.1% @ 1 kHz | | Dimensions | 1.85 x 4.60 x 4.30" (47.00 x 117.00 x 109.00 mm) | | Weight | 1.10 lb (0.50 kg) | | | | Package Weight | 1.45 lb | | Box Dimensions (LxWxH) | 10.0 x 5.0 x 2.5" |
