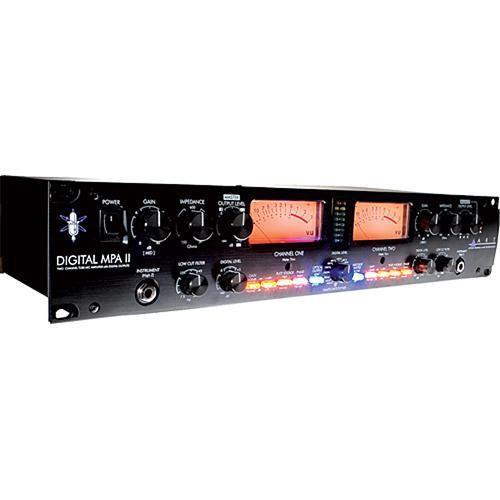

User Manual for ART Digital MPA II - Microphone Preamplifier Click to enlarge the picture
Contents of the user manual for the ART Digital MPA II - Microphone
- Product category: Microphone Preamps ART
- Brand: ART
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ART Microphone Preamps
 |
User manual for the ART Digital MPA II - Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ART product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ART user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ART product will considerably shorten its lifespan!
|

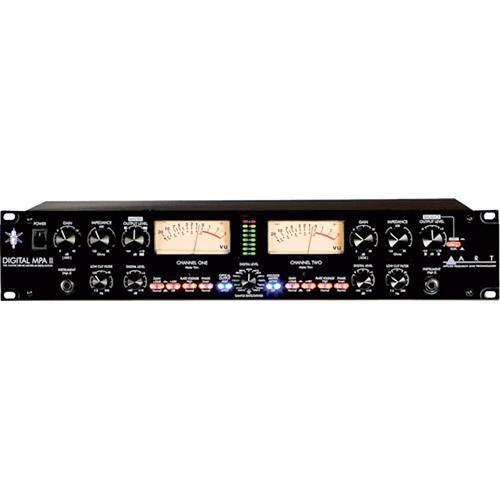

Product description The Digital MPA II from ART is a 2-channel microphone preamplifier that delivers a total of 70dB of gain, and can operate in either stereo or dual-mono mode. Based on the same circuitry as the ProMPA II, the microphone preamp is perfect for any sized studio, production facility, or live sound environment where digital output is required. The unit outputs all 3 major digital standards with Wordclock input and output also included. The signal path of the DIGITAL MPA II consists of a discrete class-A microphone pre-amp followed by a variable low-cut filter, a tube circuit with a 20dB gain switch and then a phase switch. At this point the signal passes to both the analog output and a pair of insert jacks. The insert jacks allow processing of the signal before it is passed on to the analog to digital converter. Simply inserting a signal into this insert point provides access to the A/D converters, allowing the converter to be used independent of the preamp's analog functions.The preamp provides variable input impedance, and the dual-tube gain stage has selectable plate voltages (high or normal). The unit has the ability to process a mid/side microphone set-up, and can also function as a dual-channel DI box using the 2 front panel instrument inputs. Two backlit VU meters display output level, while multi-colored LED arrays provide a visual reference of tube gain for each channel. The Digital MPA II is rack mountable and housed in a sturdy, 2U steel chassis. - 2-channel, variable input impedance microphone preamplifier
- Tube based gain stage with selectable plate voltages
- Instrument input on front panel with automatic input selection
- Analog to digital converter supporting ADAT Lightpipe, coaxial S/PDIF and AES/EBU digital output
- Selectable sample rates up to 192kHz with optional 16-bit dithering of the 24-bit converter
- Wordclock input and output, along with ADAT input, allows for working with different synchronization requirements
- Dual insert points provide access to the signal for added processing just prior to the analog-to-digital converter, or for providing external access to the converter
- Selectable Stereo/Dual operation of output controls
- Variable low-cut filter per channel
- Switchable +48V phantom power per channel
- Supports Mid/Side miking technique
- Large, dual, back-lit VU meters
- Phase reverse per channel
- Switchable for either +4dBu or -10dBV output
UPC: 840402018353 In the Box ART Digital MPA II - Microphone Preamplifier AC Power Cable Three (3) Year Warranty User Manual PDF 401.5kb Table of Contents
|
Upload User Manual
Have you got an user manual for the ART Digital MPA II - Microphone Preamplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

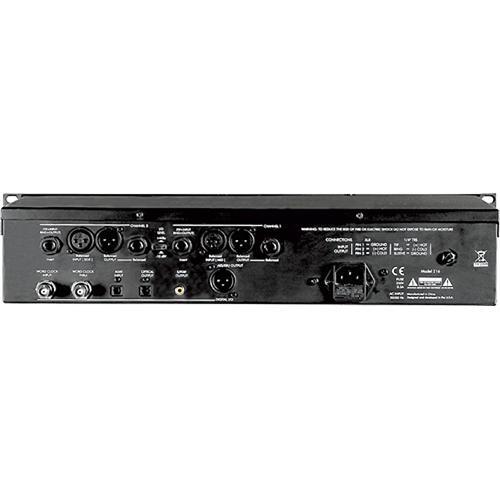

Technical parametersART DIGITAL MPA II Specs | Number of Channels | 2 | | Inputs | 2 x XLR
2 x 1/4" TS phone Instrument (front panel)
1 x 1/4" TRS phone Insert
1 x TOSLink ADAT Lightpipe
1 x BNC Wordclock | | Output | 2 x XLR Line
2 x 1/4" TRS phone Line
1 x TOSLink ADAT Lightpipe
1 x RCA coaxial S/PDIF
1 x XLR AES/EBU
1 x BNC Wordclock | | Phantom Power | +48VDC, individually switchable | | Multi Function | 2-channel analog to digital converter:44.1, 48, 88.2, 96, 176.4 and 192kHz internal sampling rates
24/16-bit switchable dithering | | Gain Range | 70dB | | Maximum Output Level | +27dBu | | Frequency Response | 15Hz to 48kHz, +0/-1dB @ normal plate voltage
15Hz to 120kHz, +0/-1dB @ high plate voltage | | Noise | EIN: -129dBu, A-weighted | | Power Requirements | 105~125VAC, 60Hz | | Dimensions (WxDxH) | 19 x 8.75 x 3.5" (483 x 222 x 89mm) | | Weight | 10.5 lbs (4.7kg) | | Specialties | Microphone impedance variable from 150Ω to 3kΩ
Supports Mid/Side microphone recording | | | | Package Weight | 13.35 lb | | Box Dimensions (LxWxH) | 22.0 x 11.2 x 5.4" |
Rating96% users recommend this product to others. And what about you?
This product has already been rated by 86 owners. Add your rating and experience with the product.
