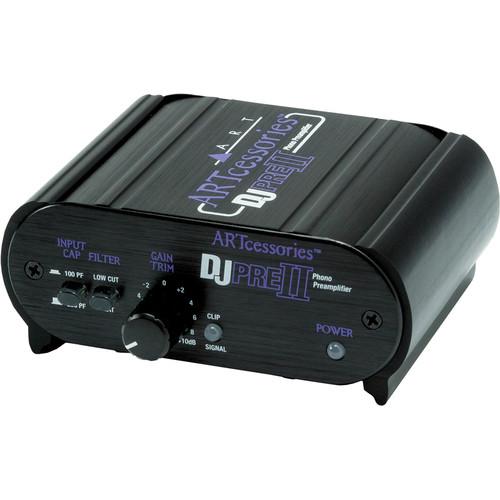

Product description Designed to amplify and EQ your vinyl records, the DJ PRE II from ART allows you to play and record into a variety of sources including your digital audio workstation, sound card, home stereo, or main monitor system.
The DJ PRE II features a switched (100pF / 200pF) analog capacitance to optimize your phono cartridge response. A low cut filter removes turntable rumble, while leaving the audio pristine. The front gain control and signal/clip LED allow you to optimize the preamp's gain for a wide range of input sources.
The built-in low-noise circuitry is highly accurate and precisely conforms to the RIAA standard, while the low impedance line output can be used with any sound card. The DJ PRE II is housed in an all-aluminum black anodized chassis and ships with a power supply. -
- High accuracy/low noise preamp
- Switchable low cut rumble filter
- Variable preamp gain
- Signal present/clip indicator
- Selectable cartridge loading
- RCA preamp outputs
- Heavy duty extruded chassis
UPC: 840402016472 In the Box ART DJ Pre II Turntable Phono Preamplifier with RIAA EQ Power Adapter 3-year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ART DJ Pre II Phono Preamplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersART DJ PRE II Specs | Frequency Response | 10 Hz to 50 kHz (±.5 dB) | | EQ RIAA Characteristic | Phono EQ Standard: Conforms to RIAA Curve | | THD | Total Harmonic Distortion: .01% typical @ 1 kHz | | Hum & Noise | > 90dB below clipping | | Input Impedance | 47 kOhms in parallel with either 100 pF or 200 pF | | Maximum Input Level | 40 mVrms @ 1 kHz | | Maximum Gain | 45 dB @ 1 kHz | | In/Out Connections | RCA | | Maximum Output Level | + 6 dBu (1.4 Vrms) | | Filter Type | Filter Type/Response: Switchable, low cut, -3 dB @ 22 Hz | | Power Requirements | 7-12 VDC or 9-12 VAC @ 150 mA | | Dimensions (H x W x D) | 1.9 x 4.6 x 4.5" / 47.0 x 116.8 x 114.3 mm | | Weight | 1.3 lb / 0.6 kg | | | | Package Weight | 1.54 lb | | Box Dimensions (LxWxH) | 9.95 x 5.25 x 2.8" |
