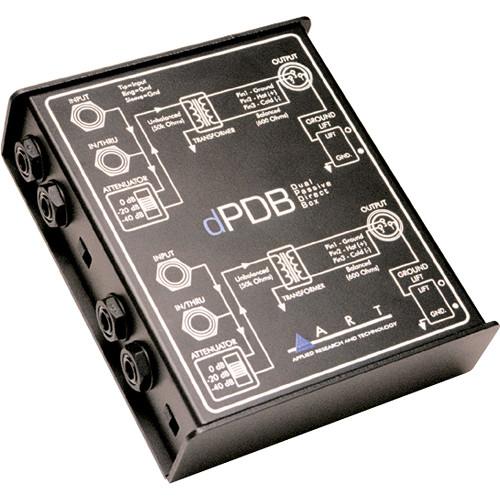

User Manual for ART dPDB Dual Channel Passive Direct Injection Box Click to enlarge the picture
Contents of the user manual for the ART dPDB Dual Channel Passive Direct
- Product category: Direct Boxes ART
- Brand: ART
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ART Direct Boxes
|
User manual for the ART dPDB Dual Channel Passive Direct contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ART product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ART user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ART product will considerably shorten its lifespan!
|
Product description The dPDB passive direct box from ART features two high-quality direct boxes in one portable enclosure. It is a roadworthy DI for connection of the outputs of electronic musical instruments (or other audio sources) to the balanced inputs of mixer consoles and other balanced inputs. It also allows for connection of a music source to an instrument amplifier while simultaneously patching it to a mixer. The unit features switchable input attenuation, a 50k Ω instrument input, 50k Ω parallel link jack, a 600 Ω XLR output jack and a switchable ground lift. It excels at impedance matching and improving the sound of any instrument plugged into it. Enclosed in a rugged steel chassis, it is designed and manufactured to the highest standards to provide years of quiet, reliable performance. Electric Guitar and Bass - The high impedance signal from a guitar or bass guitar pickup is translated by the unit into a low impedance balanced signal required by mixing consoles.
Keyboards and Line Level Signals - Automatically balances and matches the line level outputs of modern electronic keyboards. If using a multiple keyboard setup and the keyboards are all plugged into a single instrument amplifier, the dPDB can be used to replace individual direct boxes by simply sending the output of the instrument amplifier to the dPDB and then to the console.
DJ Console Output Signals - DJ mixers often supply only an unbalanced -10dB signal. The dPDB converts this signal to a balanced line level signal before it reaches the console, while providing a convenient method of connector transition with the capability to run long cables.
Speaker Level Signals - By accepting speaker level inputs from a power amplifier's output, the DI allows post-amplifier, post EQ and effects signals to be fed directly to the console. In this manner, a particular effect or amplifier sound can be sent directly to the mix.
UPC: 840402011354 In the Box ART dPDB Dual Channel Passive Direct Injection Box Ninety (90) Day Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ART dPDB Dual Channel Passive Direct Injection Box in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersART DPDB Specs | Input Connections | 4 x 1/4" TRS phone | | Output Connectors | 2 x XLR | | Input Level | 0, -20 and -40dB switchable input attenuation | | Output Level | Not specified by manufacturer | | Controls | Ground lift switch | | Frequency Response | 10Hz to 50kHz +/-0.5dB @ +4dBu | | Noise | Not specified by manufacturer | | Power | Passive | | Dimensions (WxDxH) | 5 3/4" x 5" x 2" | | Weight | Not specified by manufacturer | | Specialties | Switchable input attenuation | | | | Package Weight | 2.54 lb | | Box Dimensions (LxWxH) | 6.2 x 5.4 x 2.2" |
Rating88% users recommend this product to others. And what about you?
This product has already been rated by 45 owners. Add your rating and experience with the product.
