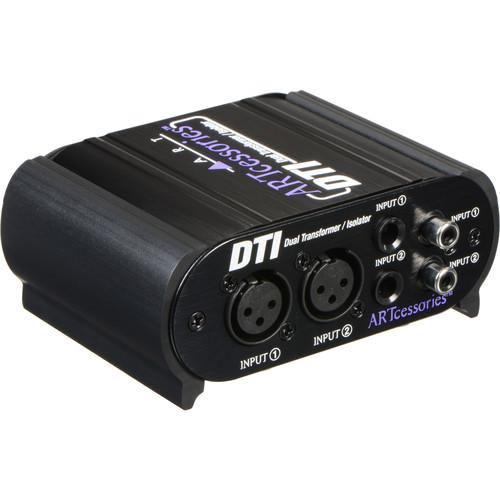

User Manual for ART DTI - Dual Input Inline Transformer Isolator Box with Balanced and Unbalanced Connectors Click to enlarge the picture
Contents of the user manual for the ART DTI - Dual Input Inline
- Product category: Hum Eliminators ART
- Brand: ART
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ART Hum Eliminators
|
User manual for the ART DTI - Dual Input Inline contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ART product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ART user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ART product will considerably shorten its lifespan!
|
Product description The DTI (Dual Transformer/Isolater) from ART is a high quality, totally passive audio interface that uses a pair of high performance transformers to totally separate input and output signal grounds, thereby isolating two systems and reducing hum and ground-loop noise. The unit's audio transformers have an extremely flat and wide frequency response and can handle high signal levels while maintaining an isolated balanced output. This gives the DTI a very clean and neutral sound with a wide variety of signal sources. The transformers are wound for 1:1 unity gain and are designed to be used with impedances from 600 Ω to 100k Ω. Versatility - Useful for making a "clean" interface between a computer based audio workstation and a speaker system, isolation on long cable runs in a fixed installation, isolation of a signal source from any recording equipment, or in many cases, just a safer connection between two audio systems.
Connectivity - Provides XLR, 1/4" phone and RCA type phono connections on all inputs and outputs. This allows the unit to easily fit into virtually any audio system and be the clean patch point between all types of systems.
Construction - A compact black anodized, all aluminum case and passive design allow the DTI to provide years of trouble free service in Live Sound, Permanent/Fixed Install, D.J. and virtually any PA application.
UPC: 840402016380 In the Box ART DTI - Dual Input Inline Transformer/Isolator Box with Balanced and Unbalanced Connectors Ninety (90) Day Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ART DTI - Dual Input Inline Transformer Isolator Box with Balanced and Unbalanced Connectors in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersART DTI Specs | Inputs | 2 x XLR
2 x 1/4" TS phone
2 x RCA phono | | Outputs | 2 x XLR
2 x 1/4" TS phone
2 x RCA phono | | Frequency Response | 10Hz to 50kHz, +/-0.5dB @ +4dBu | | Dimensions (WxDxH) | 4 1/4" x 3 1/2" x 1 3/4" | | Weight | 0.75 lbs | | Specialties | Passive design | | | | Package Weight | 0.9 lb | | Box Dimensions (LxWxH) | 13.3 x 6.6 x 0.3" |
Rating78% users recommend this product to others. And what about you?
This product has already been rated by 08 owners. Add your rating and experience with the product.
