ART Dual Limiter Two-Channel PWM Compressor

Search your instruction manual in PDF to download

User Manual for ART Dual Limiter Two-Channel PWM Compressor Limiter

Click to enlarge the picture
ART Dual Limiter Two-Channel PWM Compressor Limiter Contents of the user manual for the ART Dual Limiter Two-Channel PWM Compressor
  • Product category: Dynamics Processors ART
  • Brand: ART
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for ART Dynamics Processors

ART Dual Limiter Two-Channel PWM Compressor Limiter ART Dual Limiter Two-Channel PWM Compressor Limiter
User manual for the ART Dual Limiter Two-Channel PWM Compressor contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any ART product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official ART user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a ART product will considerably shorten its lifespan!



Product description

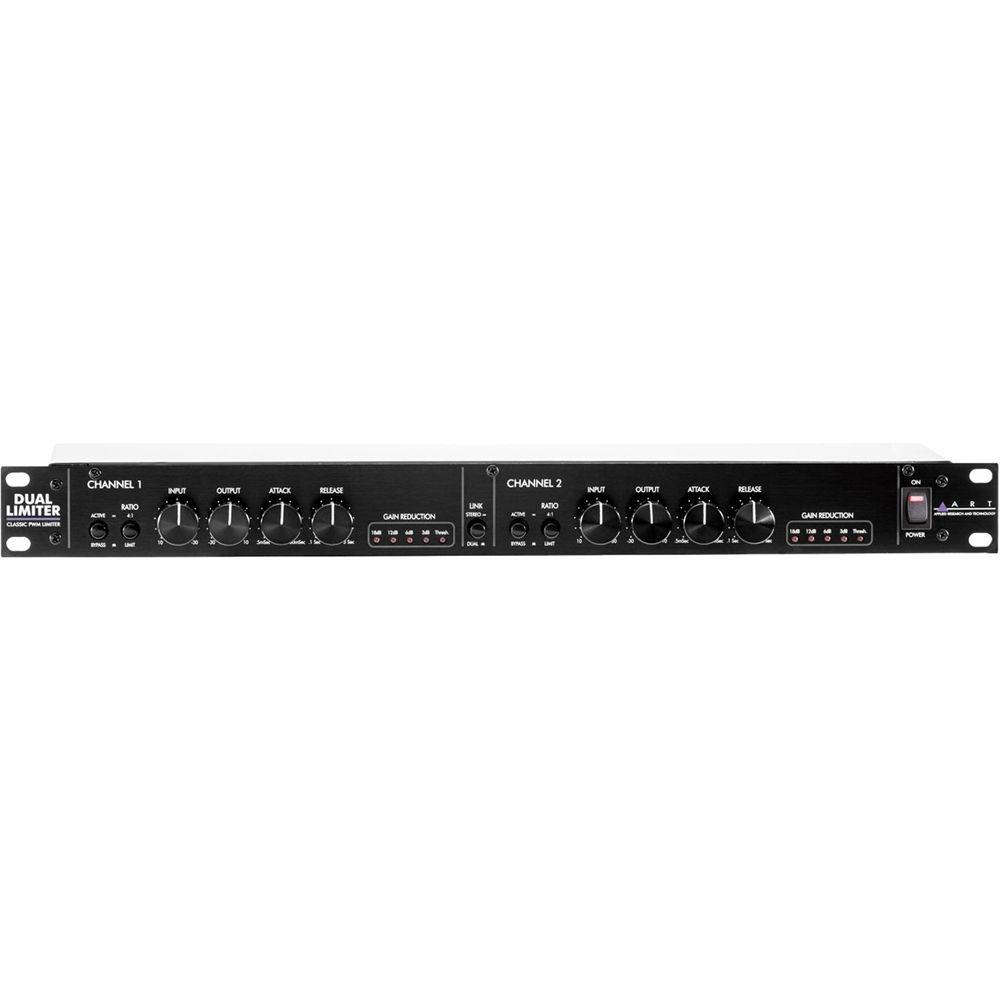

The ART Dual Limiter is a 1 RU rack-mountable, two-channel PWM compressor/limiter designed to deliver dynamics processing with low noise and distortion for musicians and audio engineers in recording studios and live stage applications. Its linkable channels allow stereo or dual-mono operation and can be independently bypassed. Each channel features a selectable ratio and adjustable input, output, attack, and release. XLR and 1/4" balanced inputs and outputs enable proper connectivity with audio interfaces and mixing consoles. Use the 1/4" detector loops to insert outboard gear before each channel's sidechain. Five-segment LEDs provide easy metering of gain reduction. The Dual Limiter's internal power supply eliminates the need for a bulky wall wart power adapter.
  • Two channels of dynamics processing
  • PWM (pulse width modulation) gain control circuit
  • Low noise and distortion characteristics
  • Selectable stereo linking

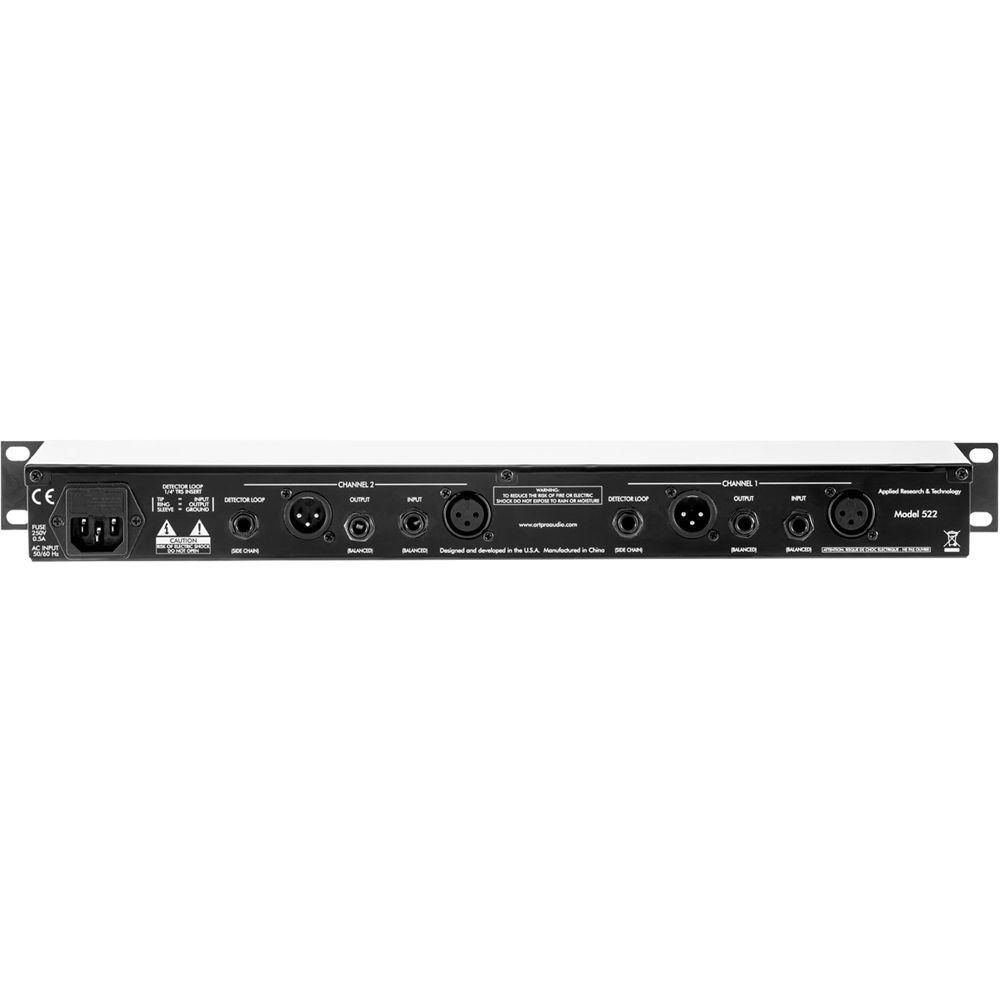

  • XLR and 1/4" balanced inputs and outputs
  • Per-channel 1/4" detector loops allow insertion of outboard gear before the sidechain
  • Variable input and output levels per channel
  • Variable attack and release controls per channel
  • Hardwire bypass
  • Five-segment gain reduction LED meters
  • Internal power supply
  • Occupies 1 RU of rack space
UPC: 840402043799 In the Box ART Dual Limiter Two-Channel PWM Compressor/Limiter
  • IEC Power Cable
  • Limited 3-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the ART Dual Limiter Two-Channel PWM Compressor Limiter in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    ART Dual Limiter Specs

    Function Compressor/limiter
    Number of Channels 2
    Inputs 2 x XLR 3-pin balanced
    2 x 1/4" / 6.3 mm TRS balanced
    Outputs 2 x XLR 3-pin balanced
    2 x 1/4" / 6.3 mm TRS balanced
    Inserts 2 x 1/4" / 6.3 mm TRS unbalanced (between input and detector stages)
    Input Impedance 20 kOhms
    Output Impedance 150 Ohms
    Maximum Input Level +20 dBu
    Compression Threshold Fixed
    Compression Ratio 4:1 or >20:1 (2:1 or 1.5:1 when patching output to detector loop input)
    Attack Time 0.5 to 50 ms
    Release Time 100 ms to 3 sec
    Maximum Output Level +20 dBu
    Overall Gain 40 dB (-30 to +10 dB)
    Frequency Response 10 Hz to 30 kHz (
