User Manual for ART Dual RDB - Dual Re-Amping Direct Box Click to enlarge the picture
Contents of the user manual for the ART Dual RDB - Dual Re-Amping
- Product category: Direct Boxes ART
- Brand: ART
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ART Direct Boxes
 |
User manual for the ART Dual RDB - Dual Re-Amping contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ART product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ART user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ART product will considerably shorten its lifespan!
|

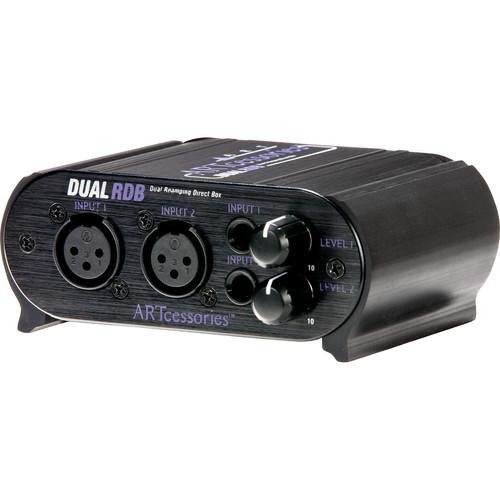

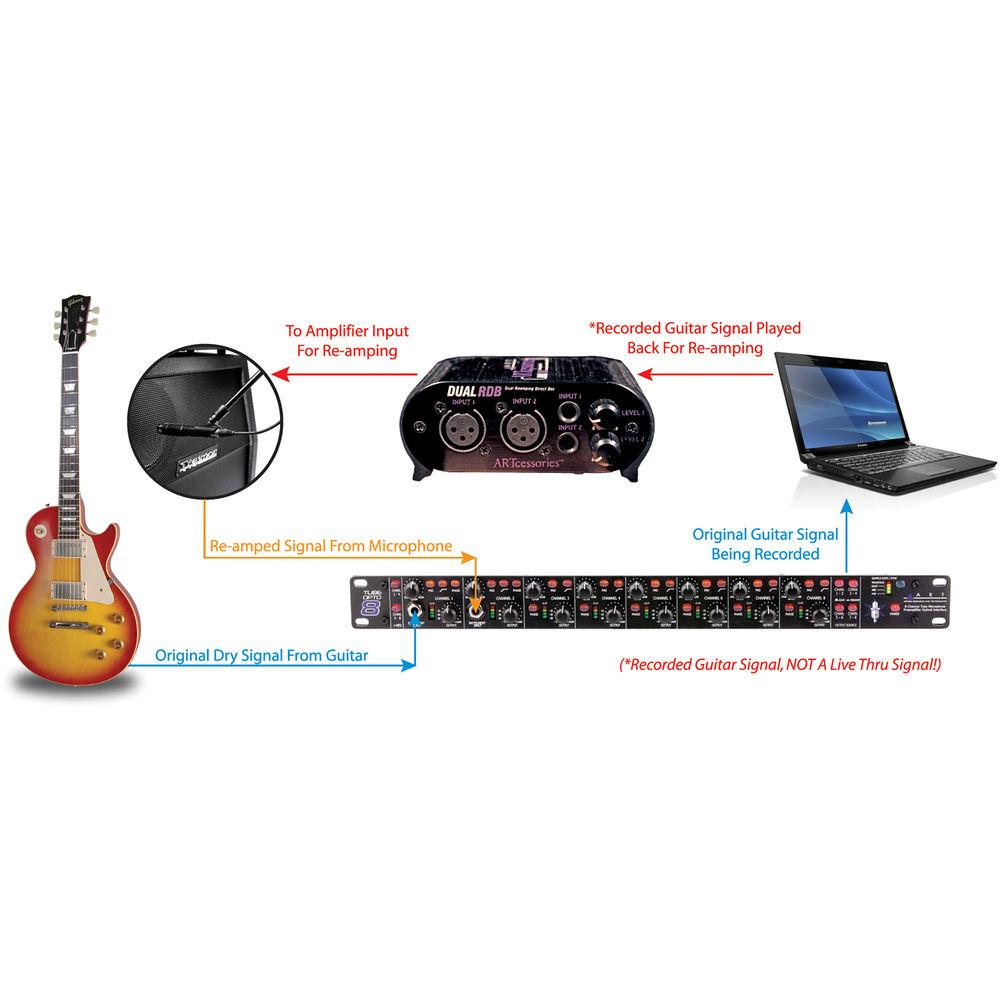

Product description The Dual RDB from ART is a dual re-amping direct box that is an ideal solution for any application where stereo or dual line level signals from recording interfaces, computers, mixers, iPods, consumer audio or video machines need to be connected to XLR microphone or 1/4" instrument level inputs. The interface functions transparently with any high quality audio source.

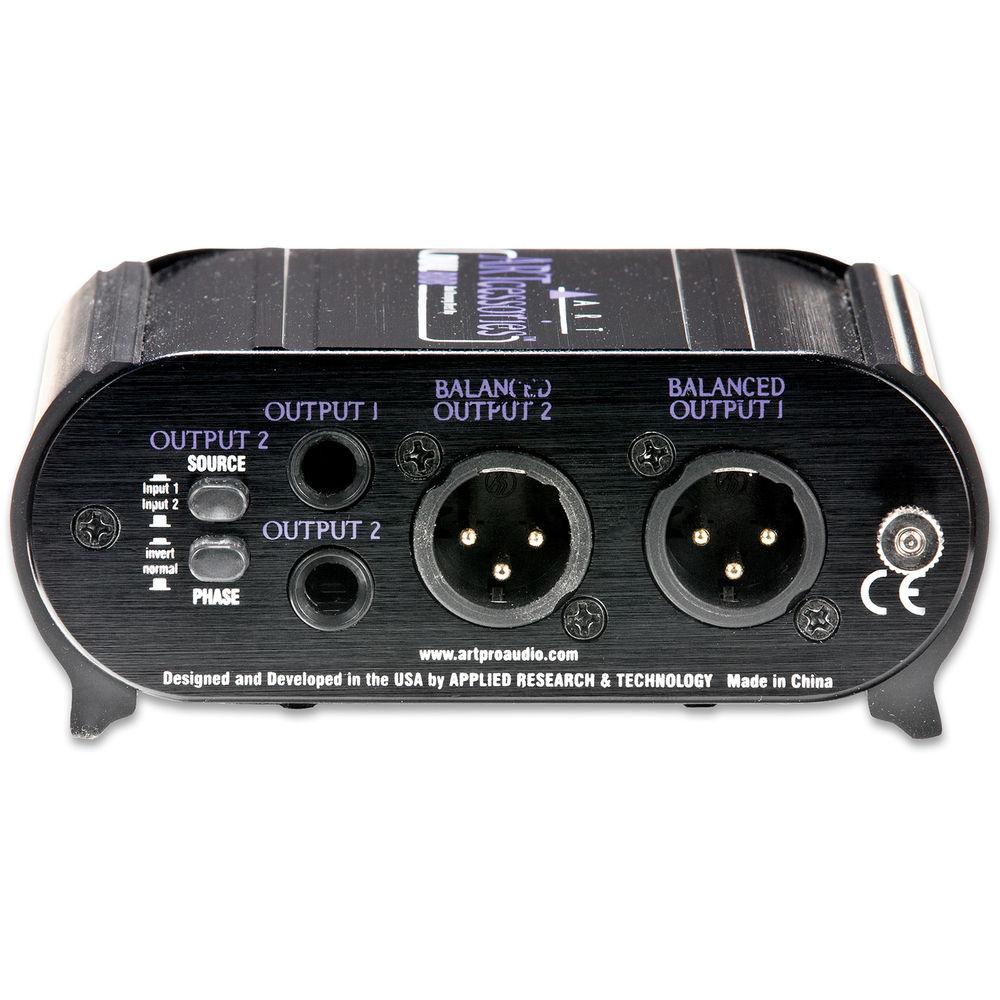

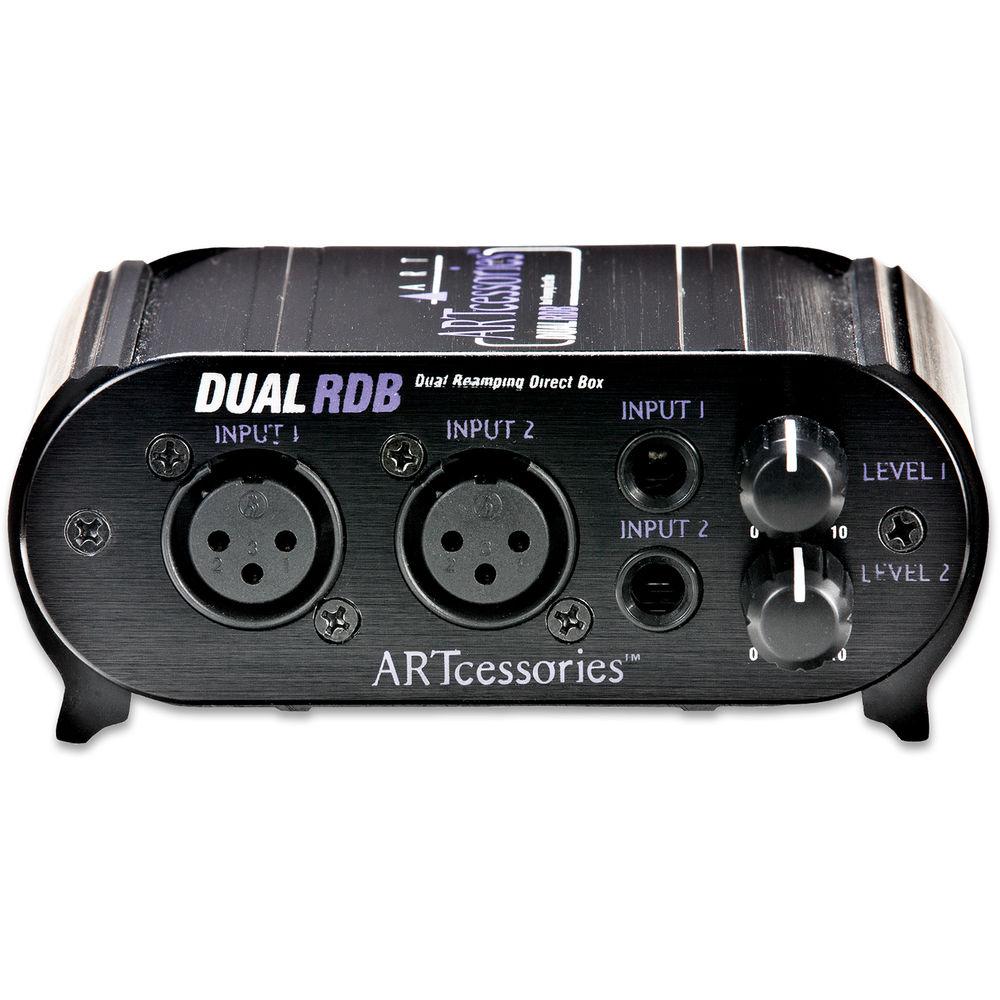

The unit features both 1/4" TRS phone and XLR inputs, and outputs microphone or instrument levels. Two variable input level controls allow for proper level staging at the source rather than anywhere else in the signal chain. Two high-quality isolation transformers prevent ground loops from occurring when connecting various systems together. - Dual 1/4" TRS and XLR balanced line level inputs
- Transformer isolated XLR balanced microphone level outputs
- Transformer isolated 1/4" TRS balanced instrument level outputs
- 20Hz to 20kHz frequency response
- Variable level controls with mute
- Channel 2 source-selectable between Channel 1 or Channel 2 input
- Channel 2 output phase switch
UPC: 840402019534 In the Box ART Dual RDB - Dual Re-Amping Direct Box Three (3) Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ART Dual RDB - Dual Re-Amping Direct Box in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersART DUAL RDB Specs | Type | Passive | | Input Connections | 2 XLR
2 x 1/4" TRS phone | | Output Connectors | 2 XLR
2 x 1/4" TRS phone | | Controls | 2 x Variable Input Pad knobs | | Frequency Response | 20Hz to 20kHz, +/-0.5dB @ +4dBu | | THD | 0.01% typical @ 1kHz, +18dBu
<0.05% @ 100Hz, +18dBu | | Crosstalk | > 80dB (typical) | | Power | Not applicable | | Dimensions (WxDxH) | 4.6 x 3.9 x 1.85" (117 x 99 x 47mm) | | Weight | 0.88 lb (0.4kg) | | Specialties | Insertion Loss
-20dB @100K load
-25dB @60Ω load | | | | Package Weight | 1.15 lb | | Box Dimensions (LxWxH) | 13.4 x 6.6 x 0.4" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 38 owners. Add your rating and experience with the product.
