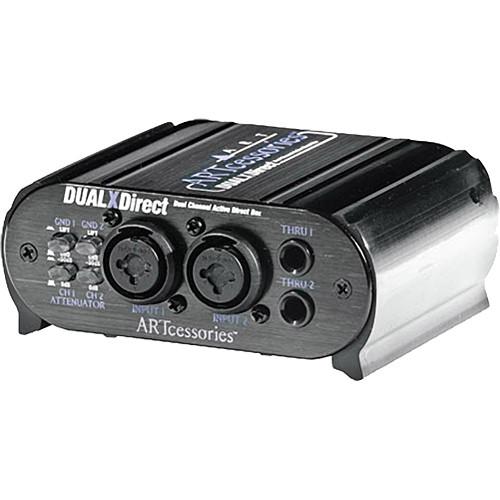

Product description The ART DUALXDirect is a 2-channel, active direct box. It converts instrument-, line-, or speaker-level sources into isolated, balanced, low-impedance signals for connection to mixers, audio interfaces, and other devices with balanced inputs. The DUALXDirect can handle high input levels, and offers a flat and wide frequency response. It performs well in a variety of situations, including when used over long cable runs in high-noise environments.
The inputs are on 1/4"/XLR combo jacks, and the outputs on balanced XLR connectors. Each channel has a ground lift switch for reducing hum and ground-loop noise, and an input attenuator switch that pads the signal coming in by 30 dB. A pair of 1/4" Thru jacks let you simultaneously pass your source signal through to an amp or other device.
The DUALXDirect runs on the phantom power of the device connected to its output. If those aren't available, a 9V battery (included) supplies the juice. - Phantom voltage or 9V battery powered
- Converts high-impedance balanced/unbalanced inputs into 600Ω balanced outputs
- Switchable input attenuation (0, -30 dB)
- 1/4" TRS / XLR combo connector inputs
- Balanced outputs on XLR connectors
- Rugged extruded aluminum case
UPC: 840402019145 In the Box ART DUALXDirect - Professional Active Direct Box Manual 9 V Battery Three (3) Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ART DUALXDirect - Professional Active Direct Box in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersART DUALXDirect Specs | Type | Active Dual | | Inputs | 2 x 1/4" TRS / XLR Combo (balanced/unbalanced) 470kΩ | | Output Connectors | 2 x XLR male 600Ω
2 x 1/4" TRS phone (pass-through) | | Dynamic Range | > 100 dB (typical) | | Channel Separation | > 80 dB (typical) | | Maximum Input Level | +4, +34 dBu | | Maximum Output Level | +6 dBu (battery powered), +14 dBu (phantom powered) | | Output Impedance | 600Ω | | Frequency Response | 10 Hz - 100 kHz, ± 0.5 dB @ +0 dBu | | THD | <.05%(typical) | | Channel Separation | > 80 dB (typical) | | Controls | 2 x Low-Pass Filter (switchable); -3 dB @ 30 kHz
2 x Input Attenuation (switchable); (0, -30 dB)
2 x Phase Invert (switchable)
2 x Ground Lift (switchable) | | Power Requirements | 9V @ 7.5 mA (battery, alkaline recommended), 18 - 48V DC @ 6.4 mA (phantom power per channel) | | Dimensions (WxDxH) | 4.6 x 3.9 x 1.85" (117 x 99 x 47 mm) | | Weight | 0.84 lbs (0.38 kg) | | | | Package Weight | 1.2 lb | | Box Dimensions (LxWxH) | 13.3 x 6.6 x 0.4" |
