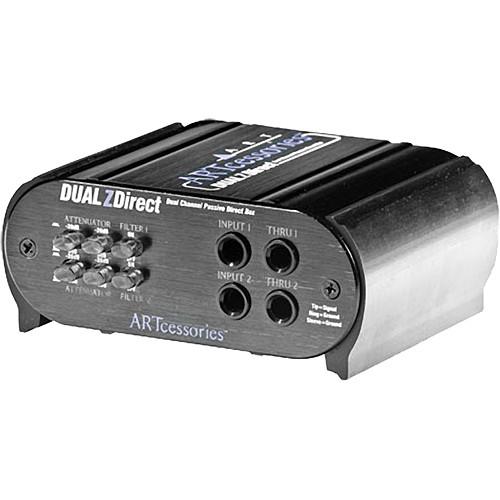

Product description The DUALZDirect is a professional, two-channel, passive direct box that converts instrument, line, and speaker-level sources, via transformer, into signals compatible with balanced, low-impedance devices such as mixers and audio interfaces.
Both channels are totally independent and have identical features. These include attenuator switches that pad the inputs by -20 or -40 dB, and ground-lift switches that fully isolate each input from the chassis and the output to help eliminate hum and ground-loop noise.
You also get phase invert switches, 1/4" pass-through jacks, and switchable low-pass filters. The latter attenuate -3 dB at 30 kHz, and are designed to reduce radio-frequency interference (RFI) and digital computer noise. Combine all that functionality with a solid, black-anodized aluminum case, and you've got a handy and road-worthy direct box. - Fully passive, high-performance transformer design; no battery required
- Converts 50kΩ inputs into 600Ω balanced outputs
- Switchable input attenuation (0, -20, -40 dB) helps you keep from overloading the inputs
- Switchable low-pass filters (-3 dB @ 30 kHz) reduce RF interference and computer noise
- Phase invert switches let you switch signal polarity at the source
- Ground-lift switches help eliminate hum, and fully isolate the inputs from the chassis and outputs
- Balanced XLR outputs for connection to mixers, audio interfaces, and other low-impedance devices
- Low-pass filters help eliminate RF interference and digital computer noise
- Rugged and compact extruded-aluminum case
UPC: 840402019138 In the Box ART DUALZDirect - Professional Dual-Channel Passive Direct Box User Guide Three (3) Year Warranty User Manual PDF 45.9kb Table of Contents
|
Upload User Manual
Have you got an user manual for the ART DUALZDirect - Professional Dual-Channel Passive Direct Box in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersART DUALZDirect Specs | Type | Passive, Dual | | Input Connections | 2 x 1/4" TRS phone (unbalanced); 50kΩ | | Output Connectors | 2 x XLR male; 600Ω
2 x 1/4" TRS phone (pass through) | | Frequency Response | 10 Hz - 50 kHz, ± 0.5 dB @ +4 dBu | | THD | 0.01% typical @ 1 kHz, +18 dBu / <.05% @ 100 Hz, +18 dBu | | Channel Separation | > 80 dB (typical) | | Controls | 2 x Low-Pass Filter (switchable); -3 dB @ 30 kHz
2 x Input Attenuation (switchable); (0, -20, -40 dB)
2 x Phase Invert (switchable)
2 x Ground Lift (switchable) | | Dimensions (WxDxH) | 4.6 x 3.9 x 1.85" (117 x 99 x 47 mm) | | Weight | 0.88 lbs (0.40 kg) | | | | Package Weight | 1.15 lb | | Box Dimensions (LxWxH) | 13.1 x 6.5 x 2.2" |
