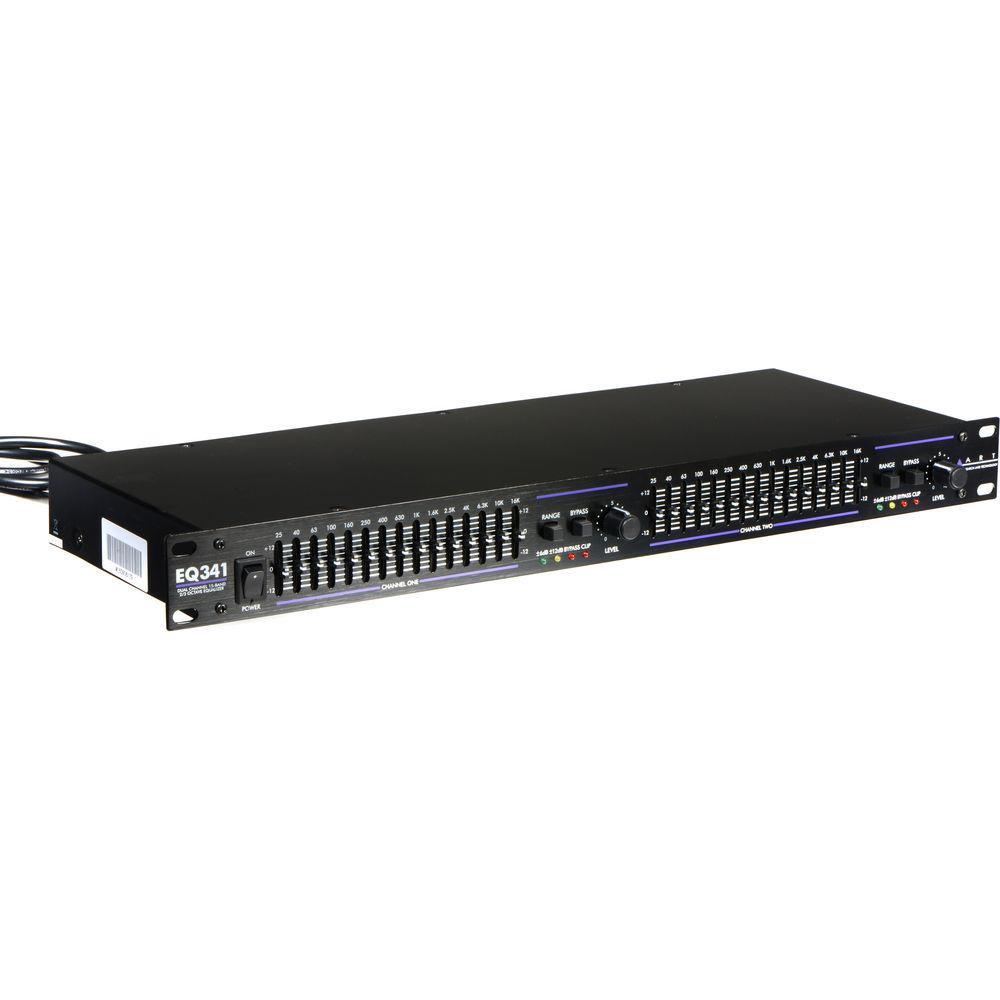

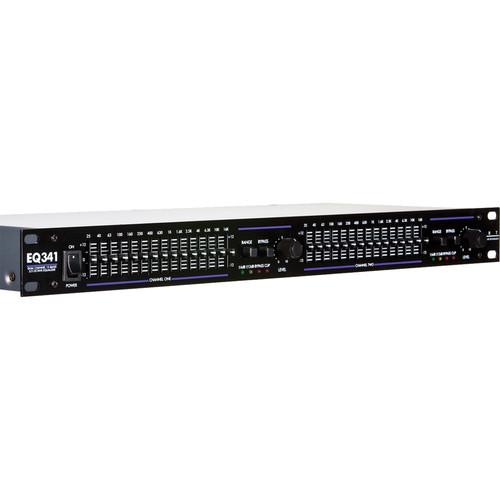

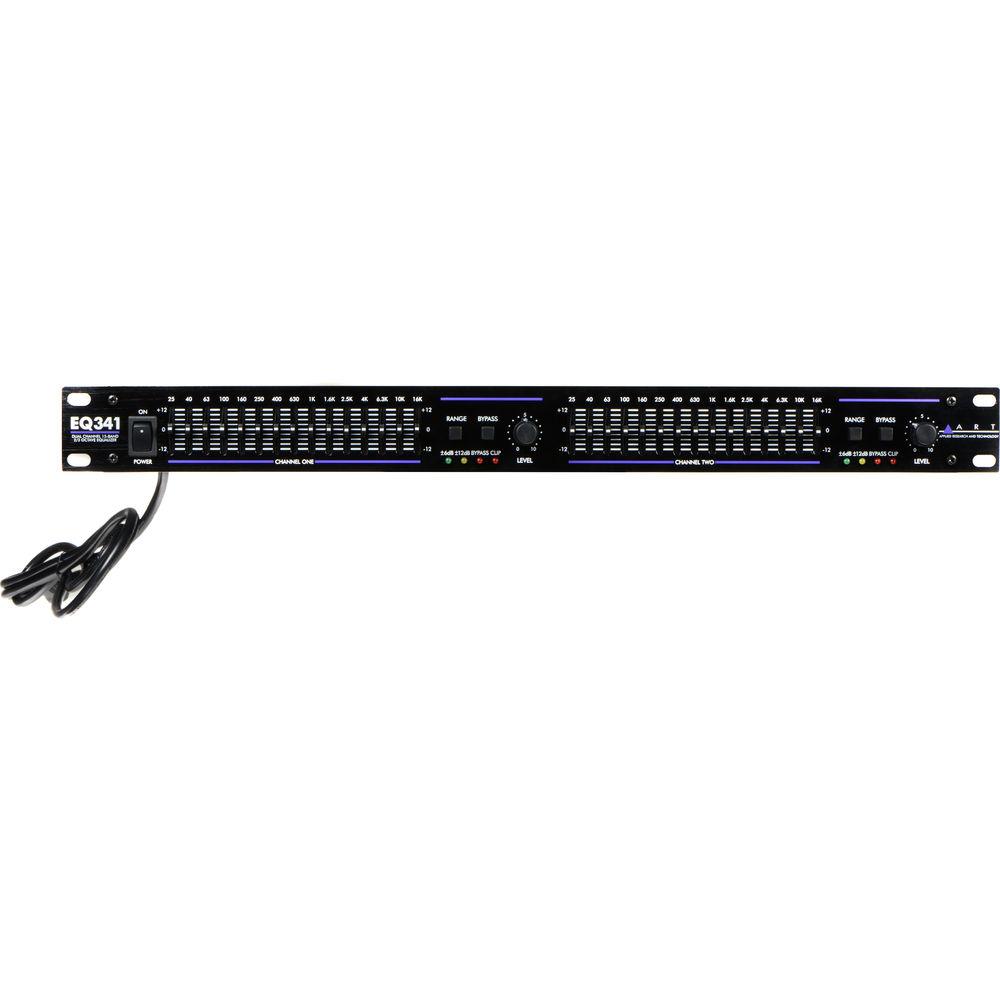

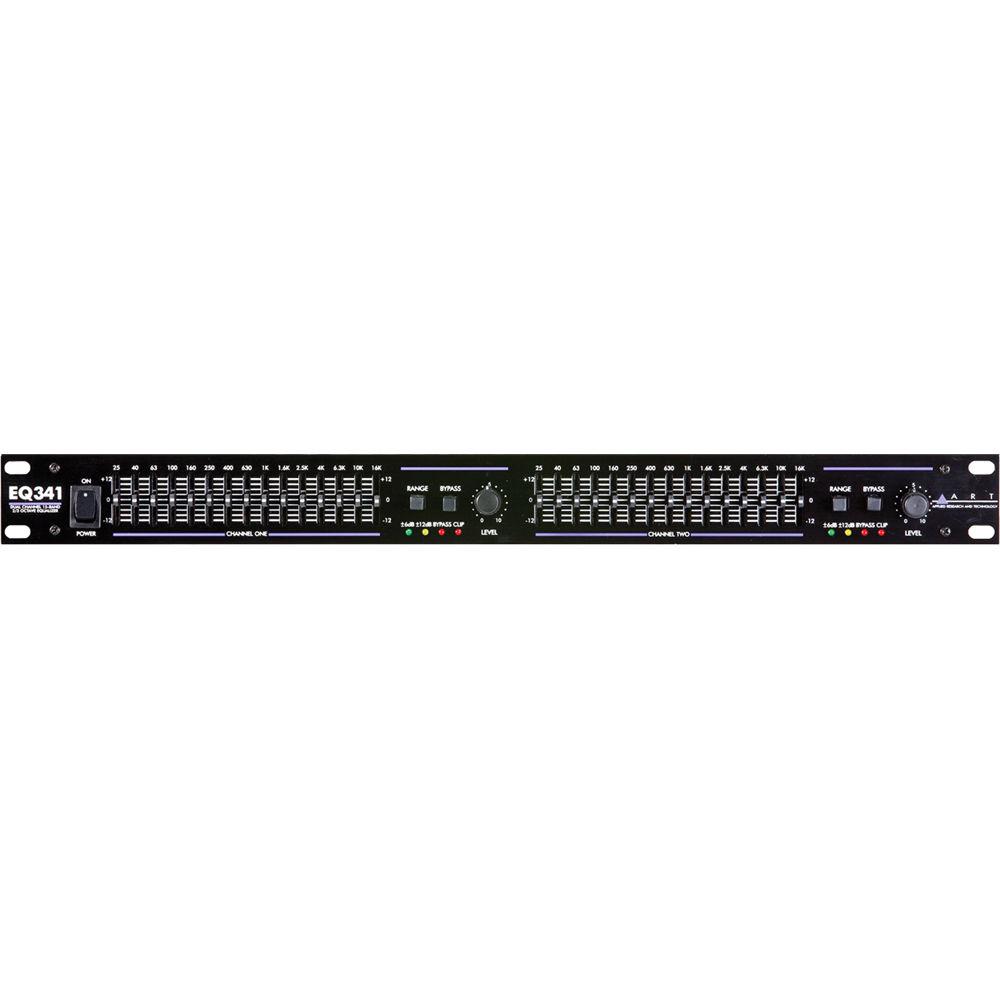

User Manual for ART EQ-341 - Dual-Channel 15-Band 2 3 Octave Graphic Equalizer Click to enlarge the picture
Contents of the user manual for the ART EQ-341 - Dual-Channel 15-Band 2
- Product category: Equalizers ART
- Brand: ART
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ART Equalizers
 |
User manual for the ART EQ-341 - Dual-Channel 15-Band 2 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ART product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ART user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ART product will considerably shorten its lifespan!
|

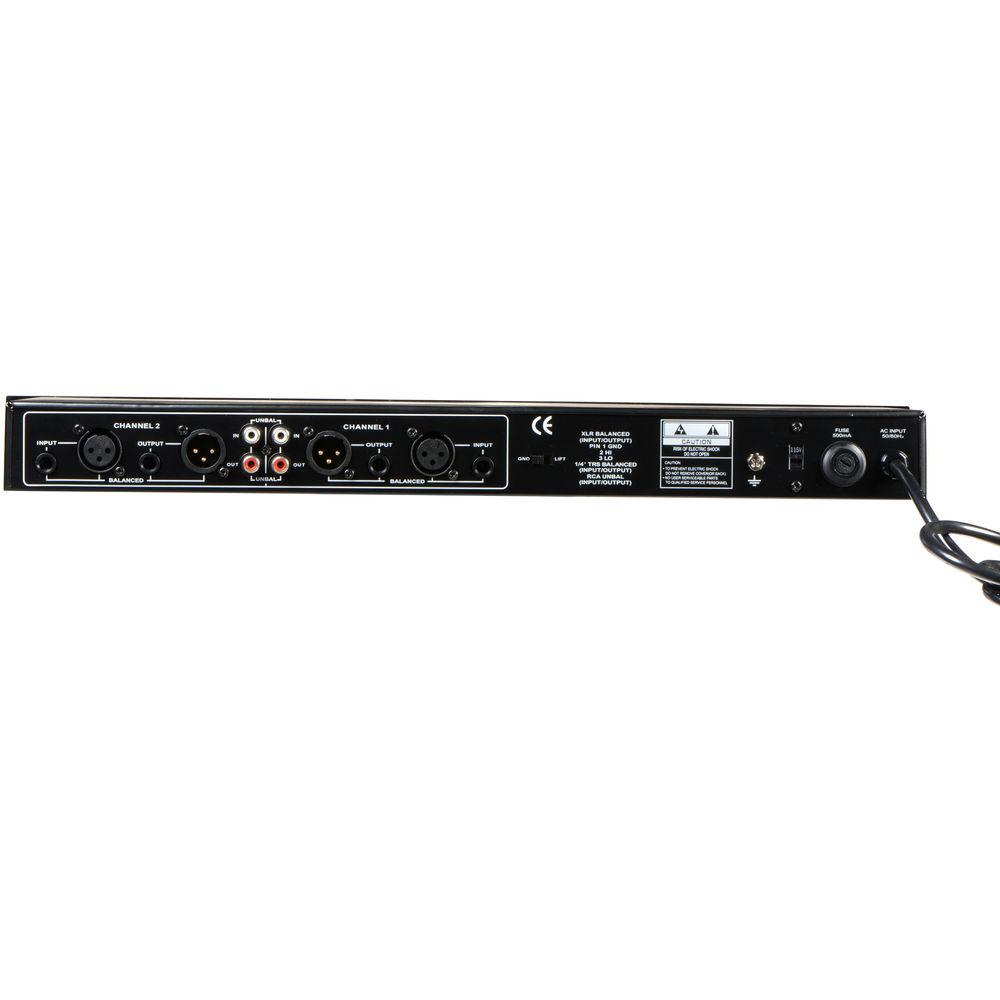

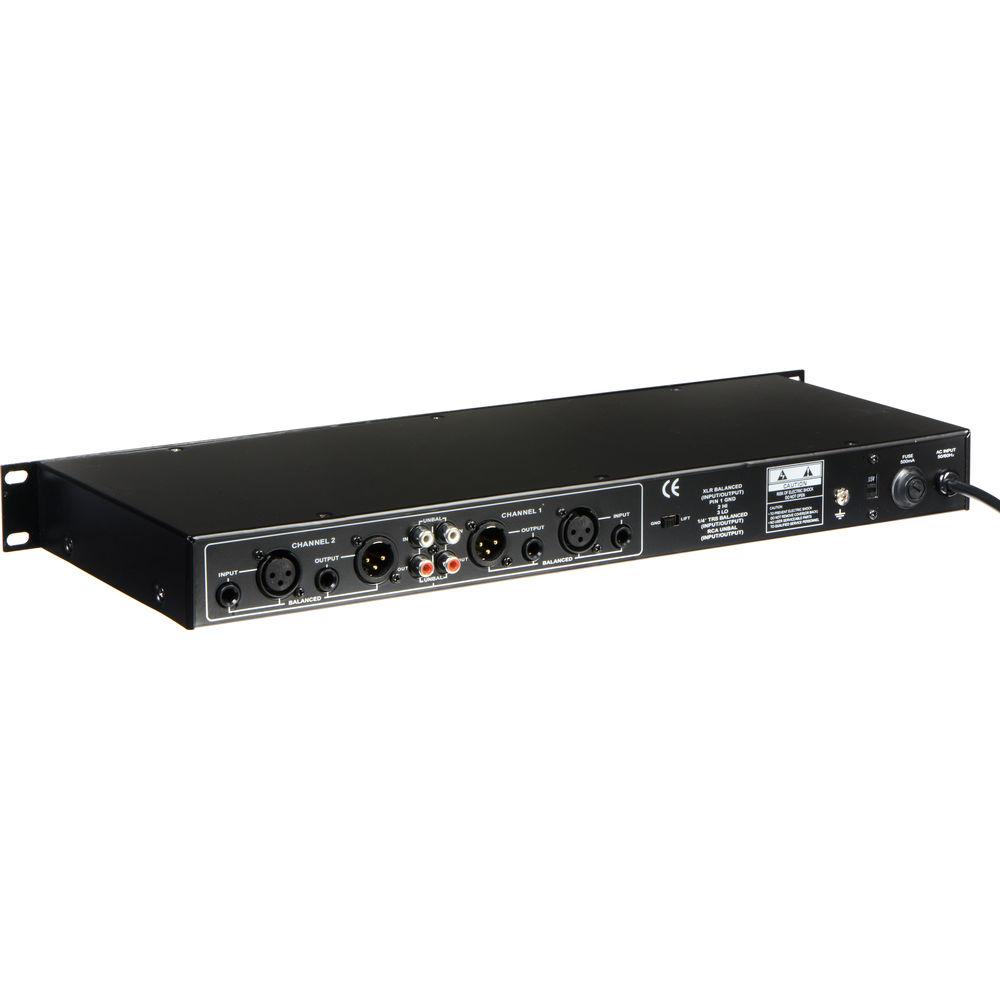

Product description The EQ341 Dual-Channel 15-Band Graphic Equalizer features 2/3-octave frequency bands and constant-Q circuitry with a 3% center frequency accuracy. The sliders are 20mm center detented with a selectable boost/cut range. The unit provides active balanced and unbalanced input and output connections, variable input level control, clip level indicators, ground lift switch, internal power supply with selectable line voltage switch.Each channel of the 341 has its own bypass switch with LED indicator, is housed in a rugged, all-steel constructed chassis which occupies 1U rack space, and is intended for installation in standard 19" equipment racks. Multiple input and output configurations are provided for ease of use and incorporate paralleled connections. The XLR and 1/4" TRS connectors use active balanced, low noise circuitry. Both the XLR and 1/4" connectors may be used in an unbalanced configuration. The RCA jacks are unbalanced. The unit is designed to work with a variety of signal levels. The input level control covers a wide range and can easily accommodate -10 and +4 signal levels. A clip LED will light when a signal level of 5dB before clipping occurs.The 341 may be used in a variety of applications such as live sound, recording studios, instrument racks, as well as any conventional fixed installation environment. - Dual-channel 15-band 2/3-octave graphic equalizer
- 20mm center-detented sliders
- Selectable boost/cut range of 6 dB or 12 dB
- Variable input level control
- Active balanced & unbalanced input & output connections
UPC: 840402011484 In the Box ART EQ-341 - Dual-Channel 15-Band 2/3 Octave Graphic Equalizer Power Cable 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ART EQ-341 - Dual-Channel 15-Band 2 3 Octave Graphic Equalizer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersART EQ341 Specs | Filter Type | Graphic, constant Q - 3% center accuracy | | Number of Channels | 2 | | Inputs | 2 x XLR, 2 x 1/4" TRS phono, 2 x RCA coaxial | | Output | 2 x XLR, 2 x 1/4" TRS phono, 2 x RCA coaxial | | Maximum Input Level | +22 dBm | | Frequency Bands | 15 x 2, ISO spacing | | Bandwidth | 2/3 octave | | Range (Boost/Cut) | +/-6 dB or +/-12 dB selectable | | Maximum Output Level | +18 dBm @ +4 db | | Frequency Response | 20 Hz to 20 kHz | | Dynamic Range | Not specified by manufacturer | | Noise | -94 dB | | Dimensions | 1U rack, 8 1/2" deep | | Specialties | Ground lift switch
Selectable line voltage switch | | | | Package Weight | 6.55 lb | | Box Dimensions (LxWxH) | 21.5 x 10.5 x 3.5" |
