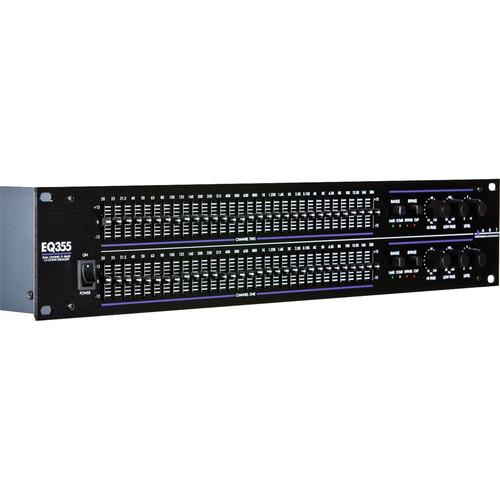

User Manual for ART EQ-355 - Dual Channel 31-Band Graphic Equalizer with Constant Q Filtering, XLR and 1 4" Balanced and RCA Unbalanced Connectors Click to enlarge the picture
Contents of the user manual for the ART EQ-355 - Dual Channel 31-Band
- Product category: Equalizers ART
- Brand: ART
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ART Equalizers
 |
User manual for the ART EQ-355 - Dual Channel 31-Band contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ART product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ART user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ART product will considerably shorten its lifespan!
|

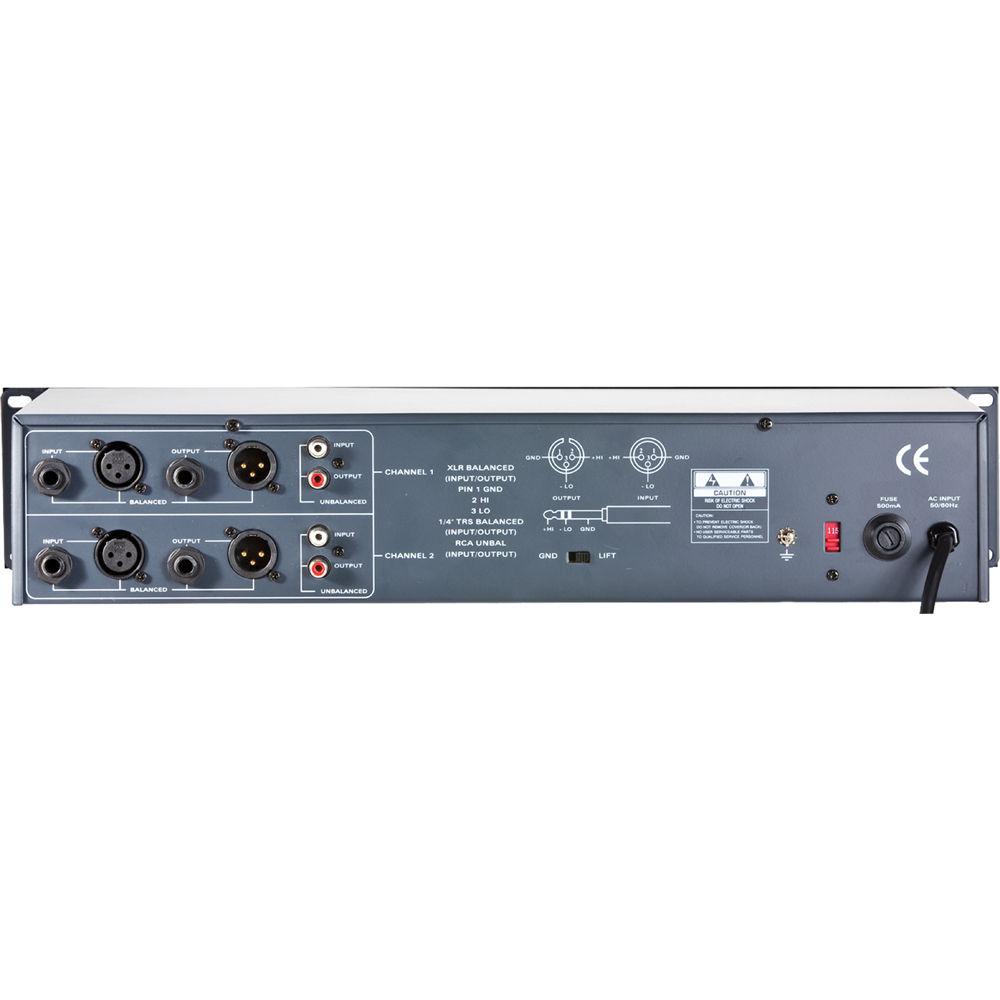

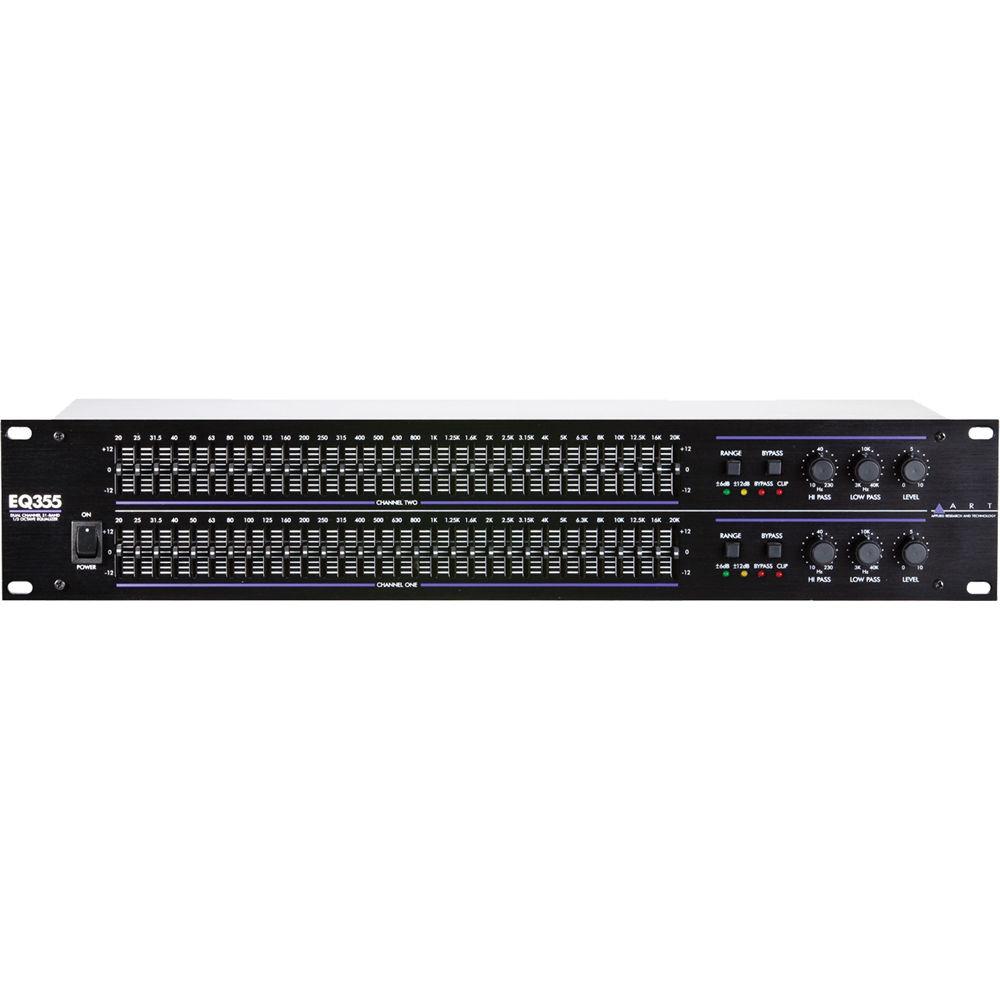

Product description The 355 dual channel, 31 band 1/3 octave graphic equalizer features constant Q circuitry, with a 3% center frequency accuracy. The sliders are 20mm center detent with a selectable boost/cut range, and the unit provides active balanced and unbalanced input and output connections, adjustable high pass and low pass filters, variable input level control, clip level indicators, ground lift switch, internal power supply with selectable line voltage switch. Each channel of the 355 has its own bypass switch with LED indicator, is housed in a rugged, all-steel constructed chassis which occupies 2U rack space, and is intended for installation in standard 19" equipment racks. Multiple input and output configurations are provided for ease of use and incorporate paralleled connections. The XLR and 1/4" TRS connectors use active balanced, low noise circuitry. Both the XLR and 1/4" connectors may be used in an unbalanced configuration. The RCA jacks are unbalanced. The unit is designed to work with a variety of signal levels. The input level control covers a wide range and can easily accommodate -10 and +4 signal levels. The 355 may be used in a variety of applications such as live sound, recording studios, instrument racks, as well as any conventional fixed installation environment. - Dual Channel 31 band 1/3 octave graphic equalizer
- 20mm center detent sliders
- Selectable boost/cut range of 6dB or 12dB
- Variable high-pass and low-pass filters
- Variable input level control
- Active balanced and unbalanced input and output connections
UPC: 840402011545 In the Box ART EQ-355 - Dual Channel 31-Band Graphic Equalizer with Constant Q Filtering, XLR and 1/4" Balanced and RCA Unbalanced Connectors Power Cable One Year Warranty User Manual PDF 419.8kb Table of Contents
|
Upload User Manual
Have you got an user manual for the ART EQ-355 - Dual Channel 31-Band Graphic Equalizer with Constant Q Filtering, XLR and 1 4" Balanced and RCA Unbalanced Connectors in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersART EQ-355 Specs | Filter Type | Graphic, constant Q - 3% center accuracy | | Number of Channels | 2 | | Inputs | 2 x XLR, 2 x 1/4" TRS phono, 2 x RCA coaxial | | Output | 2 x XLR, 2 x 1/4" TRS phono, 2 x RCA coaxial | | Maximum Input Level | +22dBm | | Frequency Bands | 31 x 2, ISO spacing | | Bandwidth | 1/3 octave | | Range (Boost/Cut) | +/-6dB or +/-12dB selectable | | Maximum Output Level | +18dBm @ +4db | | Frequency Response | 20Hz to 20kHz | | Dynamic Range | Not specified by manufacturer | | Noise | -94dB | | Dimensions | 2U rack, 8 1/2" deep | | Specialties | Ground lift switch
Selectable line voltage switch | | | | Package Weight | 10.3 lb | | Box Dimensions (LxWxH) | 20.0 x 10.5 x 6.0" |
