User Manual for ART HeadAmp6 Rackmount 6-Channel Stereo Headphone Amplifier Click to enlarge the picture
Contents of the user manual for the ART HeadAmp6 Rackmount 6-Channel Stereo Headphone
- Product category: Headphone Amplifiers ART
- Brand: ART
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ART Headphone Amplifiers
 |
User manual for the ART HeadAmp6 Rackmount 6-Channel Stereo Headphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ART product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ART user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ART product will considerably shorten its lifespan!
|

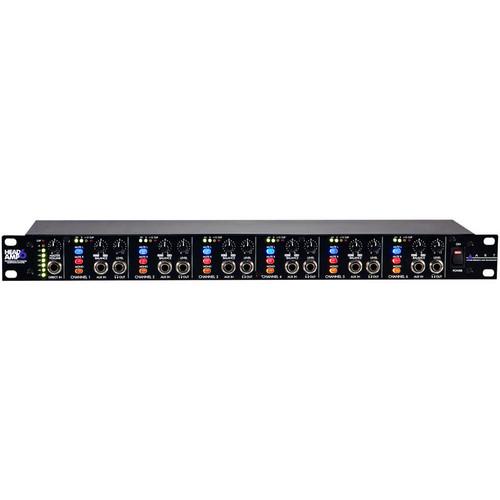

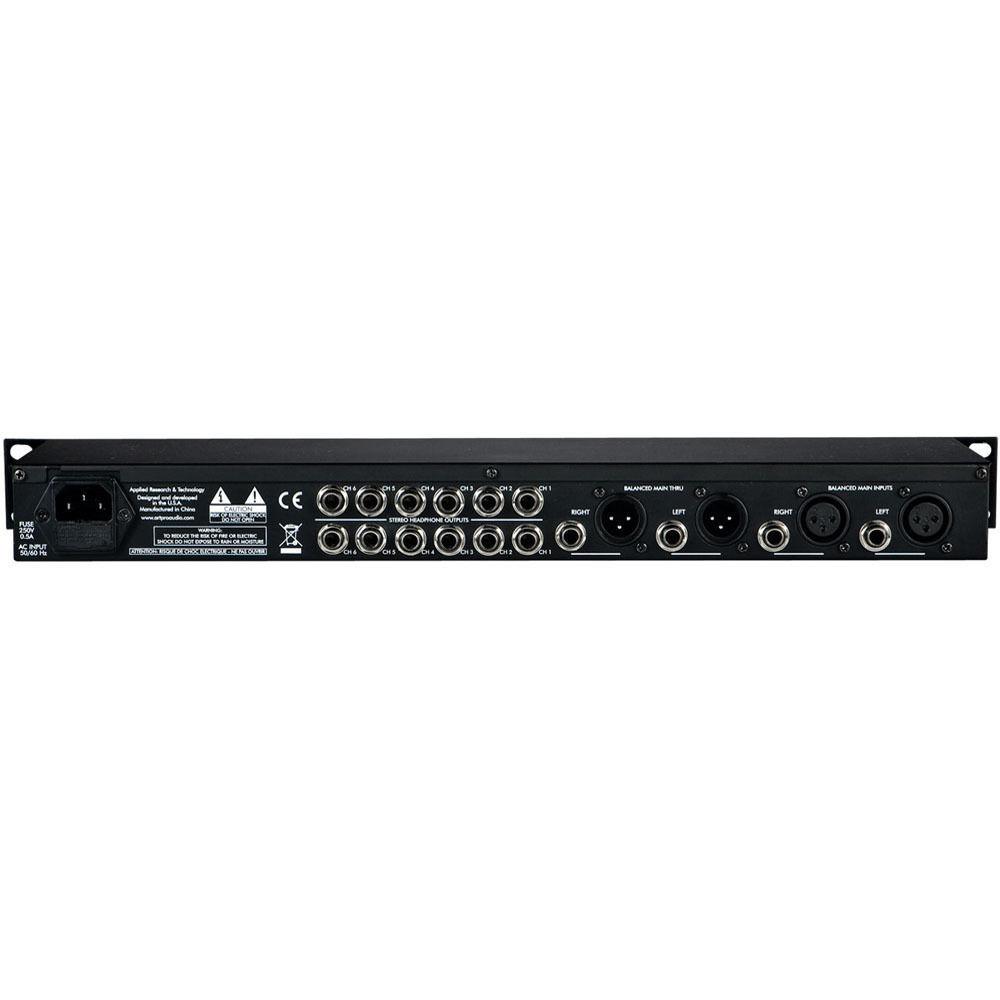

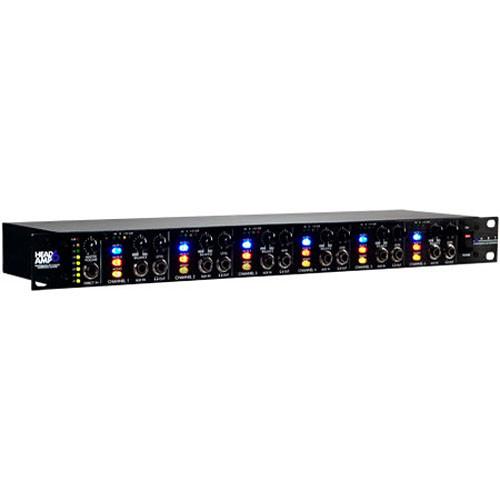

Product description The HeadAmp6 from ART Pro Audio is a 6-channel stereo headphone amplifier designed for installed applications. The amp includes front and rear output jacks via 1/4" TRS connectors for flexible connectivity. Input is via XLR and 1/4" TRS jacks, with matching Thru jacks for bridging multiple amps. A front-panel 1/4" jack allows quick patch override of the rear inputs.
The amp also include a 6-channel Aux input section, which can be used to provide the often-requested "more me" function on a headphone mix. Each output channel features a dual-function balance control, which can pan between the left and right sides of the main signal, or vary the mix between the main and Aux inputs for that channel.
Front-panel Mono select buttons on each channel allow you to switch between 4 different operating modes; Stereo, Mono Left, Mono Right, and Mono Both for versatile monitoring options. An 8-segment LED level meter provides visual feedback of the main signal bus, while 4-segment meters are provided for each output channel. - Professional rackmount 6-channel stereo headphone amplifier can drive up to 18 sets of headphones simultaneously
- Stereo XLR and 1/4" TRS inputs
- Thru jacks for bridging additional amplifiers
- Front and rear panel 1/4" main outputs can be used simultaneously
- Front-panel 1/4" Aux input for quick input override
- Mix and balance controls for each channel
- Choose from 4 operating modes; Stereo, Mono Left, Mono Right, or Mono Both
- LED 8-segment level meter for the main bus and 4-segment meters for each output channel
UPC: 840402019107 In the Box ART HeadAmp6 Rackmount 6-Channel Stereo Headphone Amplifier Power Cable 3-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ART HeadAmp6 Rackmount 6-Channel Stereo Headphone Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersART HeadAmp6 Specs | Number of Channels | 6 | | Input Connectors | 2 x Balanced XLR Female
9 x Balanced 1/4" Inputs 1 x Power Input | | Output Connectors | 2 x Balanced XLR Male
2 x Balanced 1/4" Outputs
18 x 1/4" Stereo Headphone Jacks | | Maximum Input Level | +21 dBu | | Maximum Output Level | 150 mW (8 or 600 Ohm Headphones)
500 mW (32 Ohm Headphones) | | Input Impedance | Main: 40 kOhms
Direct: 10 kOhms
Aux: 15 kOhms | | Output Impedance | < 12 Ohms | | Gain | 22 dB | | Signal to Noise Ratio | > 90 dB | | THD + N | < 0.1% | | Dynamic Range | > 101 dB | | CMRR | > 40 dB | | Phase Shift | < 10° | | Power | Input: 105 to 125 VAC, 60 Hz
Power Consumption: 60 W maximum, 18 W idle | | Dimensions (HxWxD) | 1.75 x 19 x 7.5" (45 x 483 x 190 mm) | | Weight | 5.3 lbs (2.4 kg) | | | | Package Weight | 6.7 lb | | Box Dimensions (LxWxH) | 21.1 x 10.5 x 3.6" |
