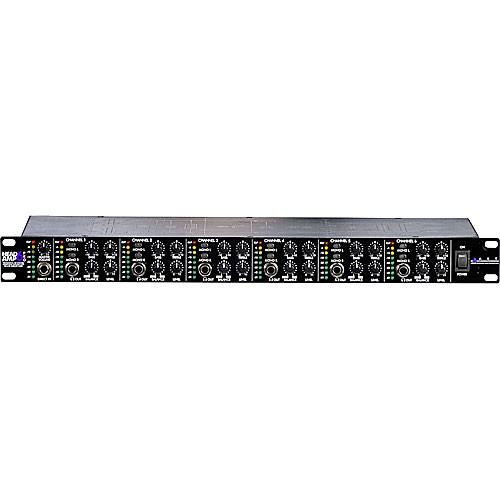

User Manual for ART HeadAmp6PRO Rack-Mount 6-Channel Stereo Headphone Amplifier Click to enlarge the picture
Contents of the user manual for the ART HeadAmp6PRO Rack-Mount 6-Channel Stereo Headphone
- Product category: Headphone Amplifiers ART
- Brand: ART
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ART Headphone Amplifiers
 |
User manual for the ART HeadAmp6PRO Rack-Mount 6-Channel Stereo Headphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ART product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ART user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ART product will considerably shorten its lifespan!
|

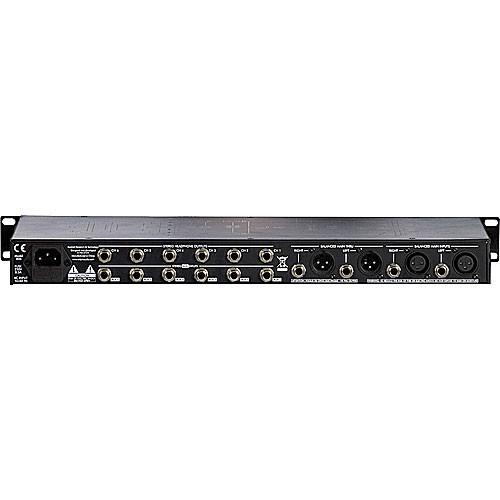

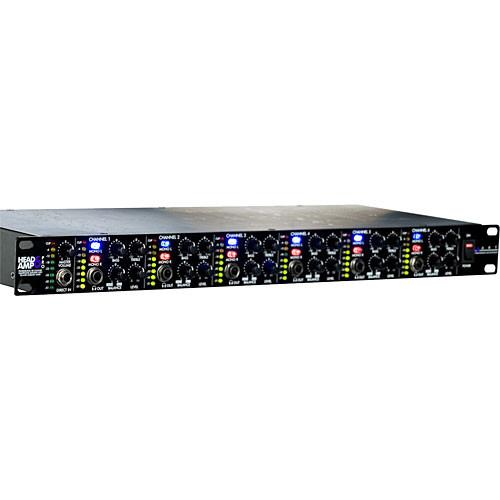

Product description The HeadAmp6PRO from ART Pro Audio is a 6-channel stereo headphone amplifier designed for installed applications. The amp includes front and rear output jacks via 1/4" TRS connectors for flexible connectivity. Input is via XLR and 1/4" TRS jacks, with matching Thru jacks for bridging multiple amps. A front-panel 1/4" jack allows quick patch override of the rear inputs.
The amp also include a 6-channel Aux input section, which can be used to provide the often-requested "more me" function on a headphone mix. Each output channel features individual bass and treble controls, as well as a dual-function balance control, which can pan between the left and right sides of the main signal, or vary the mix between the main and Aux inputs for that channel.
Front-panel Mono select buttons on each channel allow you to switch between 4 different operating modes; Stereo, Mono Left, Mono Right, and Mono Both for versatile monitoring options. An 8-segment LED level meter provides visual feedback of the signal level on all channels and the main signal bus. - Professional rack-mount 6-channel stereo headphone amplifier
- Stereo XLR and 1/4" TRS inputs
- Thru jacks for bridging additional amplifiers
- Front and rear panel 1/4" main outputs can be used simultaneously
- Front-panel 1/4" Aux input for quick input override
- Individual tone, mix, and balance controls for each channel
- Choose from 4 operating modes; Stereo, Mono Left, Mono Right, or Mono Both
- LED 8-segment level meter
UPC: 840402018070 In the Box ART HeadAmp6PRO Rack-Mount 6-Channel Stereo Headphone Amplifier Power Cable 1-Year Limited Warranty User Manual PDF 437.5kbyztctqfsxtbyrvdvez Table of Contents
|
Upload User Manual
Have you got an user manual for the ART HeadAmp6PRO Rack-Mount 6-Channel Stereo Headphone Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersART HeadAmp6PRO Specs | Number of Channels | 6 | | Input Connectors | 1 x Stereo XLR Input (2 Jacks, L/R)
1 x Stereo 1/4" Input (2 Jacks, L/R)
6 x Stereo 1/4" Aux Inputs
1 x Stereo 1/4" Aux Input (Front Panel)
1 x Power Input | | Output Connectors | 6 x Front-Panel 1/4" Stereo Outputs
6 x Rear-Panel 1/4" Stereo Outputs
1 x Stereo XLR Thru (2 Jacks, L/R)
1 x Stereo 1/4" Thru (2 Jacks, L/R) | | Maximum Output Level | 150mW (8 or 600 Ohm Headphones)
500mW (32 Ohm Headphones) | | Frequency Response | 20Hz - 50kHz | | THD + N | Not Specified by Manufacturer | | Noise | Not Specified by Manufacturer | | Display | 8-Segment LED Level Meter | | Dimensions (HxWxD) | 1.75 x 19 x 7.55" (45 x 483 x 191mm) | | Weight | 6.8 lbs (3.1kg) | | | | Package Weight | 8.15 lb | | Box Dimensions (LxWxH) | 21.0 x 10.5 x 3.4" |
Rating88% users recommend this product to others. And what about you?
This product has already been rated by 24 owners. Add your rating and experience with the product.
