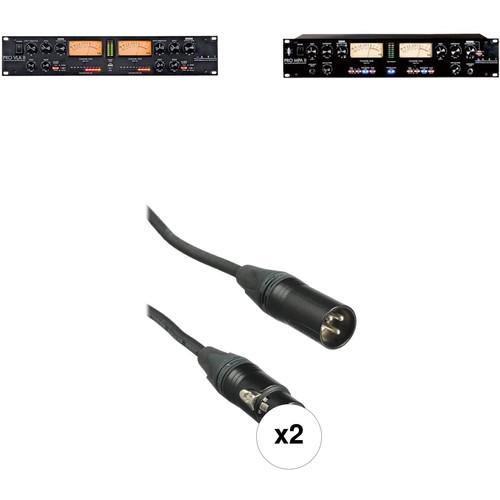

User Manual for ART High Performance Dual-Input Microphone Preamp Compressor Package

• Product category: Dynamics Processors ART
• Brand: ART
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for ART Dynamics Processors

Product description

• ART Pro VLA II - Compressor/Leveler
  • Leveling Amplifier
  The Pro VLA II from ART is a dual-channel compressor/leveler that uses an opto-electrical design to provide smooth and musical dynamic range control. The unit features a mastering-quality audio signal path and a tube-based gain stage. Variable ratios that range from 2:1 to 20:1 allow the unit to work both as a compressor or a limiter. Metal rotary controls with detents provide for the adjustment of threshold and output level, along with variable and separate attack and release speeds. The front panel features large analog VU meters for each channel, while ten-segment, multi-colored LED arrays provide information on gain reduction. Back-lit push switches set whether either VU meter reflects input or output levels; select a straight wire bypass; and engage a link function, appropriate for stereo mastering. When the channels are linked, channel one controls act globally and the channel two output knob acts as a balance control. XLR and 1/4" TRS balanced input and output jacks are provided, along with a level selector to set the unit operating levels and metering to match either +4dBu or -10dBV systems. The unit is housed in a 2U space, rack-mountable steel chassis with a CNC routed, black anodized aluminum face panel. The Pro VLA II uses two hand-selected 12AT7 tubes and is designed for years of reliable operation in the studio and on the road.
  • Two-channel, opto-isolator tube-based leveling amplifier
  • Non-VCA design provides transparent, classic sound
  • Hand selected 12AT7 tubes in the output section
  • Stereo linking of channels with master volume and balance control in Link Mode
  • XLR balanced inputs and outputs along with 1/4" TRS phone active balanced inputs and outputs
  • Variable Threshold and Ratio controls
  • Variable Attack and Release controls
  • Variable Output Level rotary controls
  • VU metering of input and output levels
  • LED metering of output level with peak-hold function
  • Ten-segment Gain Reduction LED array
  • Low noise circuitry with a healthy dynamic range
  • Rack-mountable, all-steel enclosure
  UPC: 840402018254
• ART PRO MPA II - Microphone Preamplifier
  • Leveling Amplifier
  The Pro MPA II from ART is a 2-channel microphone preamplifier that delivers a total of 70dB of gain, and can operate in either stereo or dual-mono mode. Perfect for any sized studio, production facility, or live sound environment, the preamp provides variable input impedance, and a dual-tube gain stage with selectable plate voltages (high or normal). The unit has the ability to process a mid/side microphone set-up, and can also function as a dual-channel DI box using the 2 front panel instrument inputs. Two backlit VU meters display output level, while multi-colored LED arrays provide a visual reference of tube gain for each channel. The Pro MPA II is rack mountable and housed in a sturdy, 2U steel chassis.
  • 2-channel, variable input impedance microphone preamplifier
  • Tube based gain stage with selectable plate voltages
  • Instrument input on front panel with automatic input selection
  • Selectable Stereo/Dual operation of output controls
  • Variable low-cut filter per channel
  • Switchable +48V phantom power per channel
  • Supports Mid/Side miking technique
  • Large, dual, back-lit VU meters
  • Phase reverse per channel
  • Switchable for either +4dBu or -10dBV output
  UPC: 840402018360
• 2 x Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 1.5' (0.45 m), Black
  • Leveling Amplifier
  The black Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable (1.5') is designed to be an extremely quiet and flexible cable that is ideal for the most demanding live sound and performance applications. The cable is engineered to be durable and to provide protection against EMI, RFI, and static noise. While the cable's color-coding affords the ability to quickly differentiate between multiple connections on stage, it provides a pleasant aesthetic quality at the same time.

  Premium Performance 3000 Series cables are made from 24-AWG OFC copper wire that's wrapped with PE insulation and a conductive PVC inner shield. A cotton-yarn inner layer helps reduce electrostatic and microphonic noise. 95% dual-spiral shielding makes the cable resistant to EMI and RFI noise. The Neutrik XX silver connectors provide a high level of connectivity, and all the solder connections are shrink-wrapped for protection.
  • 95% dual-spiral shielding offers protection from EMI and RFI noise
  • Twin conductive PVC inner shielding provides 100% coverage of the core conductor. It helps keep the cable's signal from radiating and affecting nearby cables, and also helps prevent external EMI from penetrating to the cable's core
  • 24-AWG oxygen-free stranded copper inner core provides the best possible conductivity
  • Cotton yarn reduces electrostatic and microphonic noise
  • All solder points shrink-wrapped for protection
  • Neutrik XX silver connectors offer high conductivity
  • Caged type contact and improved ground contact
  UPC: 847628558212

• Pro VLA II - Compressor/Leveler cbbfccuqwruzaewrte
• AC Power Cable
• Five (5) Year Warranty

• PRO MPA II - Microphone Preamplifier

• 2 x Kopul - Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 1.5' (0.45 m), Black

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• ART Pro VLA II - Compressor/Leveler

  Function	Compressor/leveler
  Number of Channels	2
  Inputs	2 x XLR 2 x 1/4" TRS phone (balanced or unbalanced)
  Outputs	2 x XLR 2 x 1/4" TRS phone (balanced or unbalanced)
  Maximum Input Level	+20dBu
  Compression Threshold	-30 to +20dB
  Compression Ratio	2:1 to 20:1
  Attack Time	0.25 ms to 50 ms, variable
  Release Time	0.15 s to 3 s, variable
  Gate Threshold	Not applicable
  Gate Rate	Not applicable
  Maximum Output Level	+20dBu (10kΩ, 0.1% THD)
  Make-up Gain	+20dB
  Frequency Response	10Hz to 100kHz (+/- 0.5dB)
  Dynamic Range	>100dB (20Hz to 20kHz)
  Noise	EIN: -99dBu, A-weighted (+4dBu mode) -107dBu, A-weighted (-10dBV mode)
  Power Requirements	105~125 VAC, 60 Hz
  Dimensions (WxDxH)	19 x 9.2 x 3.5" (483 x 234 x 89 mm)
  Weight	10.5 lb (4.8 kg)
  Specialties	Internal power supply

  Box Dimensions (LxWxH)	21.3 x 12.0 x 5.6"

• ART PRO MPA II - Microphone Preamplifier

  Number of Channels	2
  Inputs	2 x XLR 2 x 1/4" TS phone Instrument (front panel)
  Output	2 x XLR 2 x 1/4" TRS phone
  Phantom Power	+48VDC, individually switchable
  Multi Function	No
  Gain Range	70dB
  Maximum Output Level	+27dBu
  Frequency Response	15Hz to 48kHz, +0/-1dB @ normal plate voltage 15Hz to 120kHz, +0/-1dB @ high plate voltage
  Noise	EIN: -129dBu, A-weighted
  Power Requirements	105~125VAC, 60Hz
  Dimensions (WxDxH)	19 x 8.75 x 3.5" (483 x 222 x 89mm)
  Weight	10.5 lbs (4.7kg)
  Specialties	Microphone impedance variable from 150Ω to 3kΩ Supports Mid/Side microphone recording

  Box Dimensions (LxWxH)	21.8 x 11.0 x 5.3"

• 2 x Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 1.5' (0.45 m), Black

  Connector 1	3-Pin XLR Male
  Connector 2	3-Pin XLR Female
  Cable Length	1.5' / 0.45 m
  Shielding	95% Spiral
  Wire Gauge	24 AWG
  Contact Plating	Silver

  Box Dimensions (LxWxH)	8.7 x 5.5 x 0.9"
