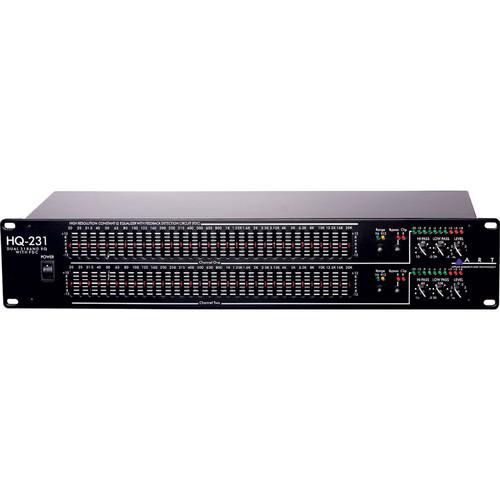

User Manual for ART HQ231 - Dual Channel 31-Band Equalizer with 20mm Faders, Feedback Detection Circuitry, LED Energy Indicators, XLR, 1 4" TRS Balanced and RCA Unbalanced Inputs Outputs Click to enlarge the picture
Contents of the user manual for the ART HQ231 - Dual Channel 31-Band
- Product category: Equalizers ART
- Brand: ART
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ART Equalizers
|
User manual for the ART HQ231 - Dual Channel 31-Band contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ART product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ART user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ART product will considerably shorten its lifespan!
|
Product description The HQ231 from ART is a dual channel, 31 band graphic equalizer that features FDC (Feedback Detection Circuitry.) The unit also features constant Q circuitry, 45mm center detent sliders with selectable boost or cut range of 6dB or 12dB and connectivity includes XLR, 1/4" and unbalanced RCA input and output connections. The ART proprietary FDC differs from similar systems in that it is extremely fast and utilizes a set of indicators that show which of the many EQ bands has the greatest energy. Although it illuminates the band with the greatest energy with the brightest LED, it doesn't fully discriminate between bands and will not get "stuck" on one band when there is no signal. The function can also act as a simple spectrum viewer. The rugged, all-steel chassis occupies 2U rack spaces and is intended for installation into standard 19" equipment racks. Applications for the HQ231 include live sound systems/PA, permanent or fixed installations, church, club and practice PA systems, DJ sound systems, home and project recording systems, and monitor systems. - Dual channel, 31-band graphic equalizer
- FDC Feedback Detection Circuit
- Individual high and low pass filters on each channel
- Center-detented, 20mm frequency band sliders with selectable range
- Independent level and bypass controls on each channel
- Relay bypass - in the event of power loss to the equalizer, signal will still pass
- Signal clip level indicators
- Internal power supply with selectable line voltage
UPC: 840402011637 In the Box ART HQ231 - Dual Channel 31-Band Equalizer with 20mm Faders, Feedback Detection Circuitry, LED Energy Indicators, XLR, 1/4" TRS Balanced and RCA Unbalanced Inputs/Outputs AC Power Cable Three (3) Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ART HQ231 - Dual Channel 31-Band Equalizer with 20mm Faders, Feedback Detection Circuitry, LED Energy Indicators, XLR, 1 4" TRS Balanced and RCA Unbalanced Inputs Outputs in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersART HQ-231 Specs | Filter Type | Constant - 3% center accuracy | | Number of Channels | Two | | Inputs | 2 x XLR
2 x 1/4" TRS phone
2 x RCA phono | | Outputs | 2 x XLR
2 x 1/4" TRS phone
2 x RCA phono | | Maximum Input Level | +22dBm | | Frequency Bands | 2 x 31 | | Bandwidth | 1/3 octave, ISO spacing | | Range (Boost/Cut) | +/-6dB o+/-12dB, selectable | | Maximum Output Level | +22dBm | | Frequency Response | 20Hz to 20kHz, +/-0.5dB | | Dynamic Range | Not specified by manufacturer | | Noise | -94dBm, unweighted | | Dimensions (WxDxH) | 19" x 7 1/2" x 3 1/2" | | Weight | 12 lbs | | Specialties | FDC (Feedback Detection Circuitry) instantly illuminates the EQ band with the greatest signal. | | | | Package Weight | 13.75 lb | | Box Dimensions (LxWxH) | 20.0 x 11.0 x 6.0" |
Rating98% users recommend this product to others. And what about you?
This product has already been rated by 17 owners. Add your rating and experience with the product.
