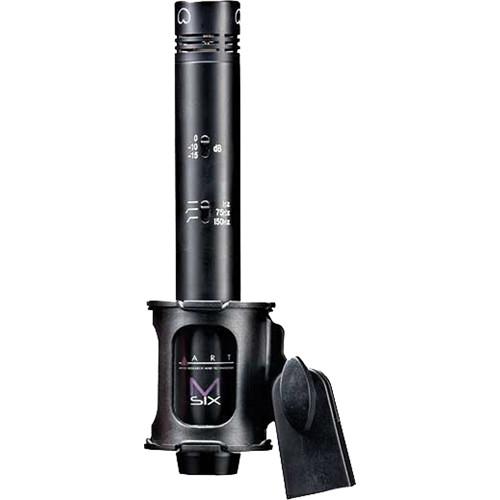

User Manual for ART M-Six Stereo Pencil Condenser Microphone Click to enlarge the picture
Contents of the user manual for the ART M-Six Stereo Pencil Condenser Microphone
- Product category: Small Diaphragm Condenser ART
- Brand: ART
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ART Small Diaphragm Condenser
 |
User manual for the ART M-Six Stereo Pencil Condenser Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ART product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ART user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ART product will considerably shorten its lifespan!
|

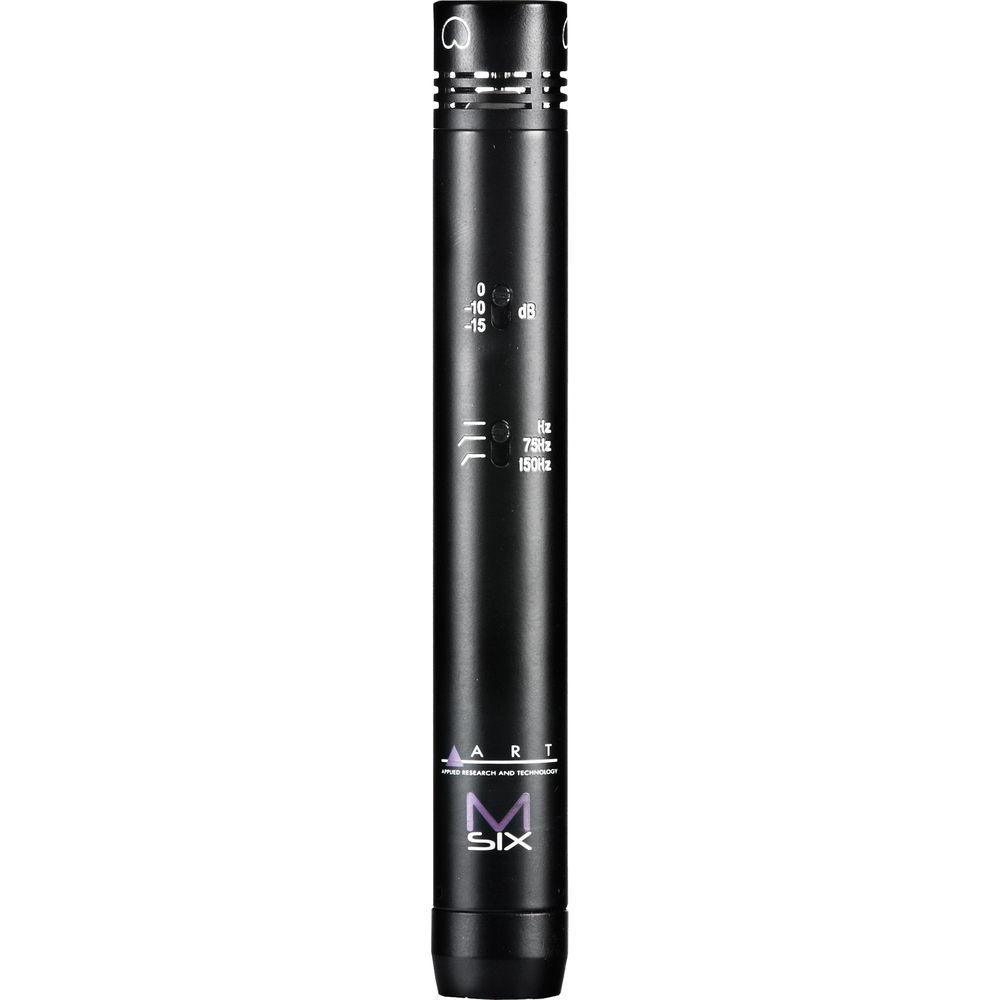

Product description The matched pair of M-Six Stereo Pencil Condenser Microphones from ART is designed for studio, broadcast, and live sound recording applications. They require +48V of phantom power and utilize 22mm gold sputtered diaphragms to deliver a frequency response of 20 Hz to 20 kHz. The microphones, each feature a cardioid pickup pattern with a sensitivity of -37 dB (±2 dB) and offer a three position pad (at 0, -10, and -15 dB) which allows a maximum SPL of 134 dB when set to 0 dB pad and 147 dB when set to -15 dB. They also each feature a three position -12 dB/octave high pass filter (flat, 75 Hz, 150 Hz) for rolling off unwanted low frequency information. The package includes two custom shockmounts to provide each microphone with isolation from handling noise as well as a rugged aluminum carrying case. - Matched microphones for stereo imaging
- Can be used for recording critical instrument tracks
- Wide dynamic range with low distortion characteristics
- Smooth frequency response with controlled presence
- A switchable pad provides 0, -10, and -15 dB of signal attenuation when recording loud sources
- Switchable high pass filter offers rolls of low frequency content at 20, 75, and 150 Hz with a -12 dB/octave slope
- Low susceptibility to RFI and electromagnetic interference
- Flat, black low-reflectivity powdercoated finish

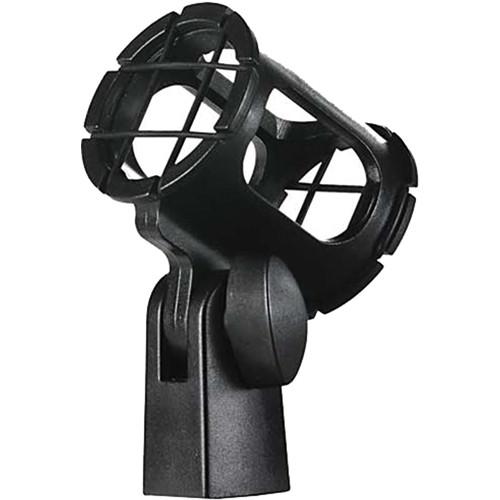

- Includes custom shockmounts and an aluminum carry case
UPC: 840402030850 In the Box ART M-Six Stereo Pencil Condenser Microphone (Matched Pair) Aluminum Carrying Case 2 x Shockmounts Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ART M-Six Stereo Pencil Condenser Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersART M-Six Stereo Specs | | | Transducer | Condenser | | Diaphragm | 0.87" / 22 mm | | Polar Pattern | Cardioid | | Frequency Range | 20 Hz to 20 kHz | | Signal to Noise Ratio | 76 dB | | Maximum SPL | 134 dB SPL | | Pad | -10 dB
-15 dB | | Impedance | 200 Ohms | | Sensitivity | -37 dB | | Low-Cut Filter | 12 dB/Octave @ 75 Hz
12 dB/Octave @ 150 Hz | | | | Operating Voltage | 48 V | | Length | 6.38" / 162 mm | | Diameter | 0.87" / 22 mm | | Weight | 4.94 oz / 140 g | | | | Package Weight | 3.65 lb | | Box Dimensions (LxWxH) | 13.5 x 9.1 x 6.1" |
