User Manual for ART MX225 - Zone Distribution Mixer Click to enlarge the picture
Contents of the user manual for the ART MX225 - Zone Distribution Mixer
- Product category: Install Sound Mixers ART
- Brand: ART
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ART Install Sound Mixers
 |
User manual for the ART MX225 - Zone Distribution Mixer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ART product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ART user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ART product will considerably shorten its lifespan!
|

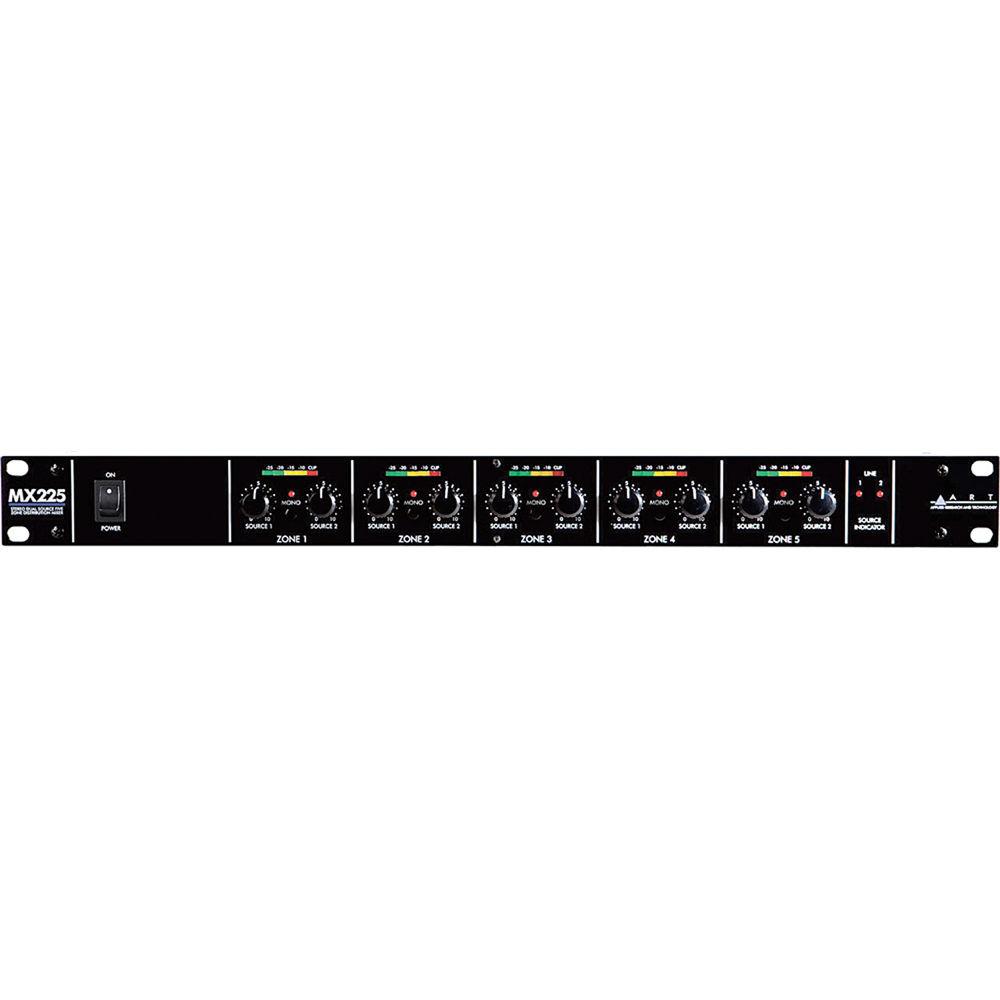

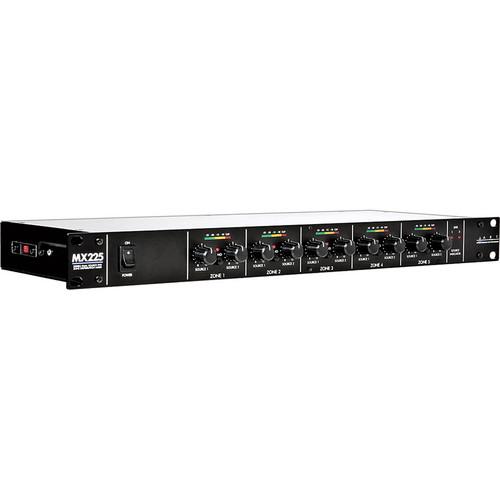

Product description The MX225 from ART is a high-quality zone mixer with two stereo inputs and five stereo outputs. The two balanced XLR stereo inputs each get routed to all five zones. Every zone has balanced XLR stereo outputs. There are source 1 and 2 volume knobs on each of the 5 zones, with an LED audio level meter, and a button that sums the stereo signal to mono. For an example of how the MX225 can be used, imagine you own a medium sized restaurant. You have an entrance area, a main dining room, a bar area, a kitchen, and an office. You want the same music playing in the entrance area and the dining room, but at different volumes (softer in the dining room, louder near the busy entrance). In the bar area you want a different style of music playing at a louder volume. The cooks in the kitchen like variety, so sometimes they want to hear the mellow dinning room music, and other times they like the more rocking bar music. With the MX225 hooked into your sound system in the office area, you can control who hears what, and at what volume they are hearing it. If a customer asks you to turn down the music, you can easily turn down the music in their zone only. You plug the two different audio sources into the MX225, and connect the outputs to the amplifiers or powered speakers that are set up in the separate parts of the restaurant. The operation of the MX224 couldn't be easier. You simply turn up or turn down the volumes of source 1 & 2 in each zone. - Left and right balanced source 1 and 2 inputs, accepts stereo or mono signals
- Source 1 and 2 input channels are internally routed to all five zone channels
- Five zone channels each feature source 1 and 2 level controls and left and right balanced output XLR connectors
- Stereo/mono selector on each zone sums left and right into Mono mode when engaged
- Mono indicator LED on each zone channel indicates that mono has been selected
- Five LED level metering (-25, -20, -15, -10, Clip) on each zone channel indicate signal activity for each zone
- Source 1 and 2 indicator LEDs show you when signal is present in each source channel
UPC: 840402019022 In the Box ART MX225 - Zone Distribution Mixer Power Cord 3 Year Warranty User Manual PDF 76.4kbbvvwtycyeabtzsyxubxswvaztuscb Table of Contents
|
Upload User Manual
Have you got an user manual for the ART MX225 - Zone Distribution Mixer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

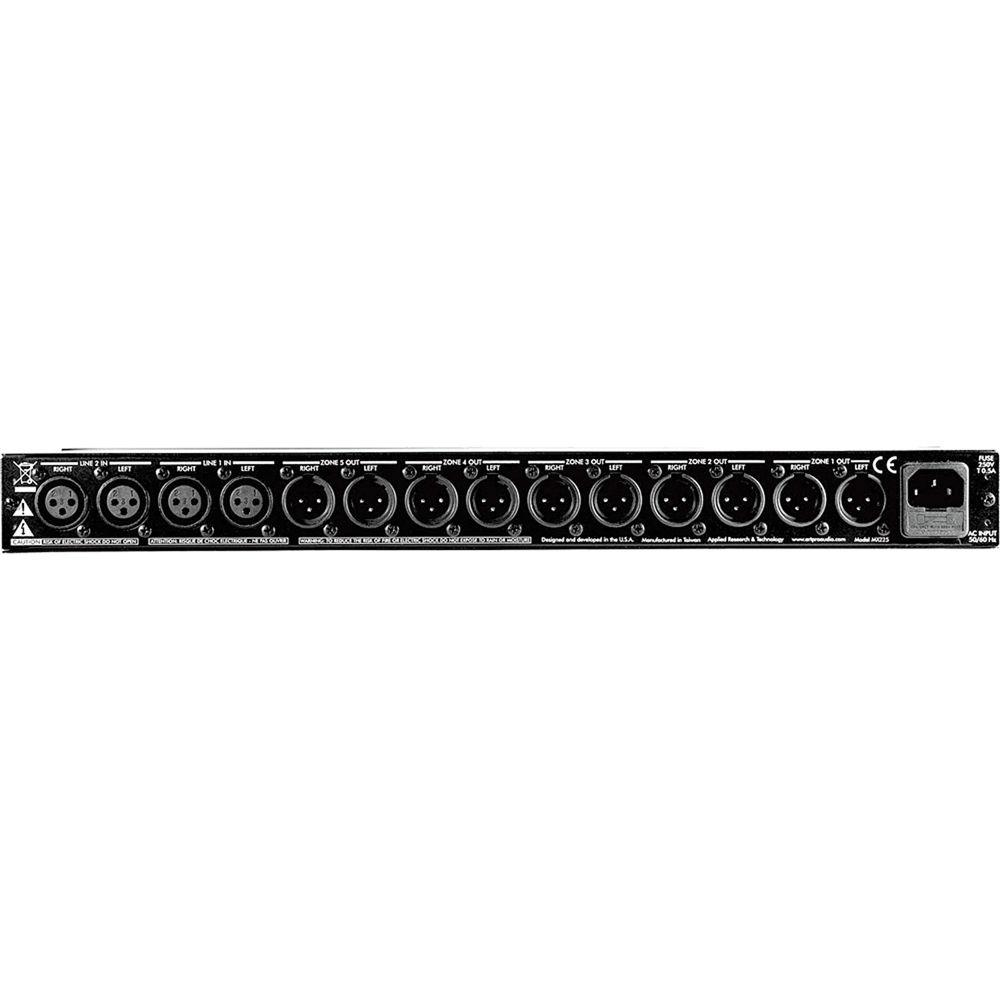

Technical parametersART MX225 Specs | Inputs | 4 x Balanced XLR Female Inputs (2 Stereo Inputs) | | Outputs | 10 x Balanced XLR Male Outputs (5 Stereo Zones) | | Input Impedance | 47k Ohms | | Output Impedance | 200 Ohms | | Maximum Input Level | +20 dBu Balanced | | Maximum Output Level | +24 dBu Balanced | | Maximum Gain | +6 dB | | # Of Rack Space | 1U (One Rack Space) | | Signal to Noise Ratio | >90 dB Typical | | Audio THD | .05% Typical | | Power Requirements | USA - 105 to 125 VAC / 50-60 Hz, 15 Watts Typical | | Dimensions | 1.75 x 19.0 x 7.25" (44.5 x 483 x 184mm) | | Weight | 5.34 lbs (2.42 kg) | | | | Package Weight | 6.65 lb | | Box Dimensions (LxWxH) | 21.0 x 10.5 x 3.5" |
