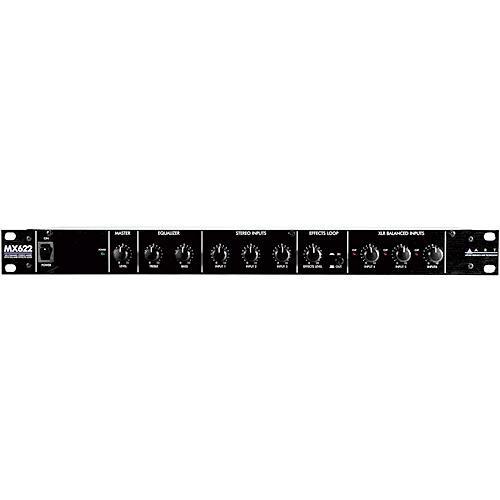

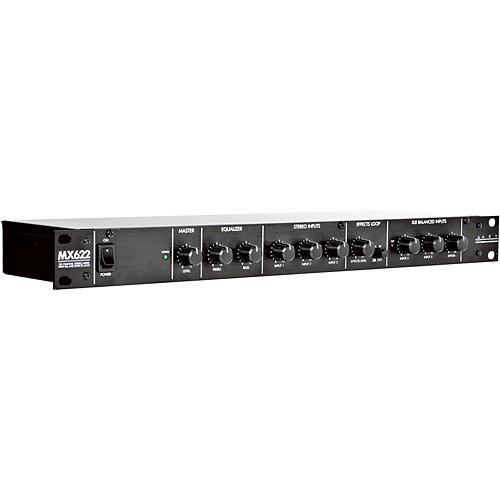

User Manual for ART MX622 6-Channel Rackmount Mixer, 3 Mic Line & 3 Stereo Input Click to enlarge the picture
Contents of the user manual for the ART MX622 6-Channel Rackmount Mixer, 3
- Product category: Sound Reinforcement Mixers ART
- Brand: ART
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ART Sound Reinforcement Mixers
 |
User manual for the ART MX622 6-Channel Rackmount Mixer, 3 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ART product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ART user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ART product will considerably shorten its lifespan!
|

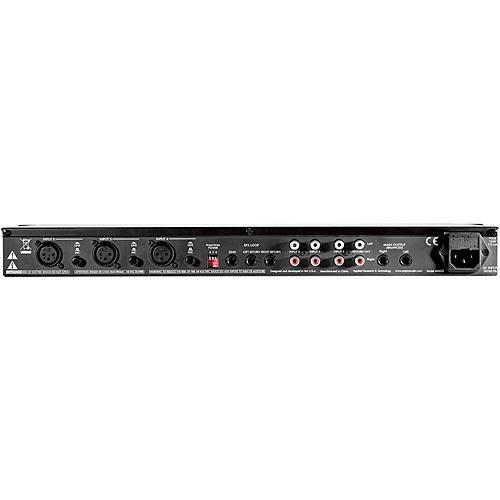

Product description The MX622 from ART is a rack-mountable audio mixer with 3 microphone inputs, 3 stereo RCA line-level inputs, 2-band EQ, and an effects loop. It enables you to mix several different sources of audio down to two balanced stereo outputs. The knobs are logically arranged, clearly labeled, and easy to understand, making the MX622 a good choice for installations where several people may need access to the controls. The 3 balanced XLR inputs feature mic/line switches, as well as individual dip-switches for 15V of phantom power. The stereo effects loop features a level knob and in/out switch on the front panel. The main output of the MX622 features balanced 1/4" TRS jacks for clean sound. The MX622 will fit into a standard 19" rack, making it a good choice for installed sound systems. The user-friendly level controls on the front panel make the MX622 a good choice for bars and restaurants, conference rooms, and any situation where multiple microphones and stereo line-level signals need to be mixed together. - Three balanced XLR inputs, switchable between mic and line-level
- Three stereo RCA inputs with separate level controls
- Level control and clip indicators
- Selectable 15-volt phantom power for mic channels
- Balanced TRS 1/4-inch main output jacks with master level control
- Two-band master EQ (treble and bass)
- Separate stereo record outputs
- Effects loop with independent level control
UPC: 840402018995 In the Box ART MX622 6-Channel Rackmount Mixer, 3 Mic/Line & 3 Stereo Input Power Cable 3-Year Warranty User Manual PDF 62.9kbfyswadcvzzrewrxdt Table of Contents
|
Upload User Manual
Have you got an user manual for the ART MX622 6-Channel Rackmount Mixer, 3 Mic Line & 3 Stereo Input in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersART MX622 Specs | Total # Of Inputs | 6 | | Mic/Line Inputs | 3 x Balanced XLR Mic Inputs | | Stereo Line Inputs | 3 x Pairs of Stereo RCA Line Inputs | | AUX Sends | 1/4" Effects Send | | AUX Returns | 2 x 1/4" Effects Returns | | 2 Trk Master I/O | 2 x Balanced 1/4" | | ALT I/O | Stereo RCA Record Output | | EQ Section | 2-Band Master EQ (Treble and Bass) | | Channel Level Control | Rotary Knobs | | Phantom Power | Switchable 15-Volt Phantom Power on Mic Inputs | | Metering | Clip LEDs on Mic Channels | | Frequency Response | Not Specified by Manufacturer | | Signal-to-Noise Ratio | > 90 dB Typical | | Total Harmonic Distortion (THD) | .01% Typical | | Power Requirements | USA - 105 to 125 VAC / 50-60Hz, 15 Watts Typical | | Dimensions (HxWxD) | 1.75 x 19.0 x 6.0" (44.5 x 483 x 152 mm) | | Weight | 6.2 lbs (2.8 kg) | | | | Package Weight | 5.45 lb | | Box Dimensions (LxWxH) | 20.9 x 10.4 x 3.6" |
Rating78% users recommend this product to others. And what about you?
This product has already been rated by 19 owners. Add your rating and experience with the product.
