User Manual for ART MX821S - Eight-Channel Mic Line Mixer with Stereo Outputs Click to enlarge the picture
Contents of the user manual for the ART MX821S - Eight-Channel Mic Line
- Product category: Analog Recording Mixers ART
- Brand: ART
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ART Analog Recording Mixers
 |
User manual for the ART MX821S - Eight-Channel Mic Line contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ART product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ART user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ART product will considerably shorten its lifespan!
|

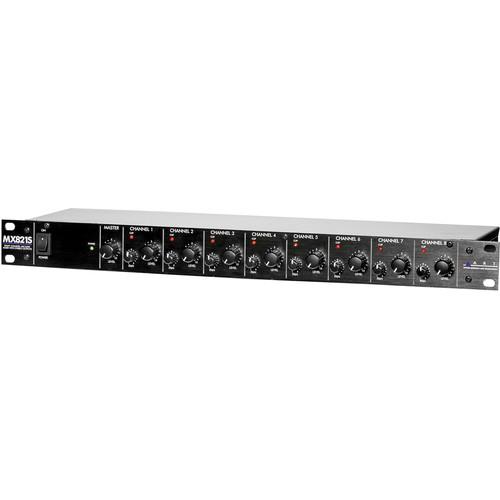

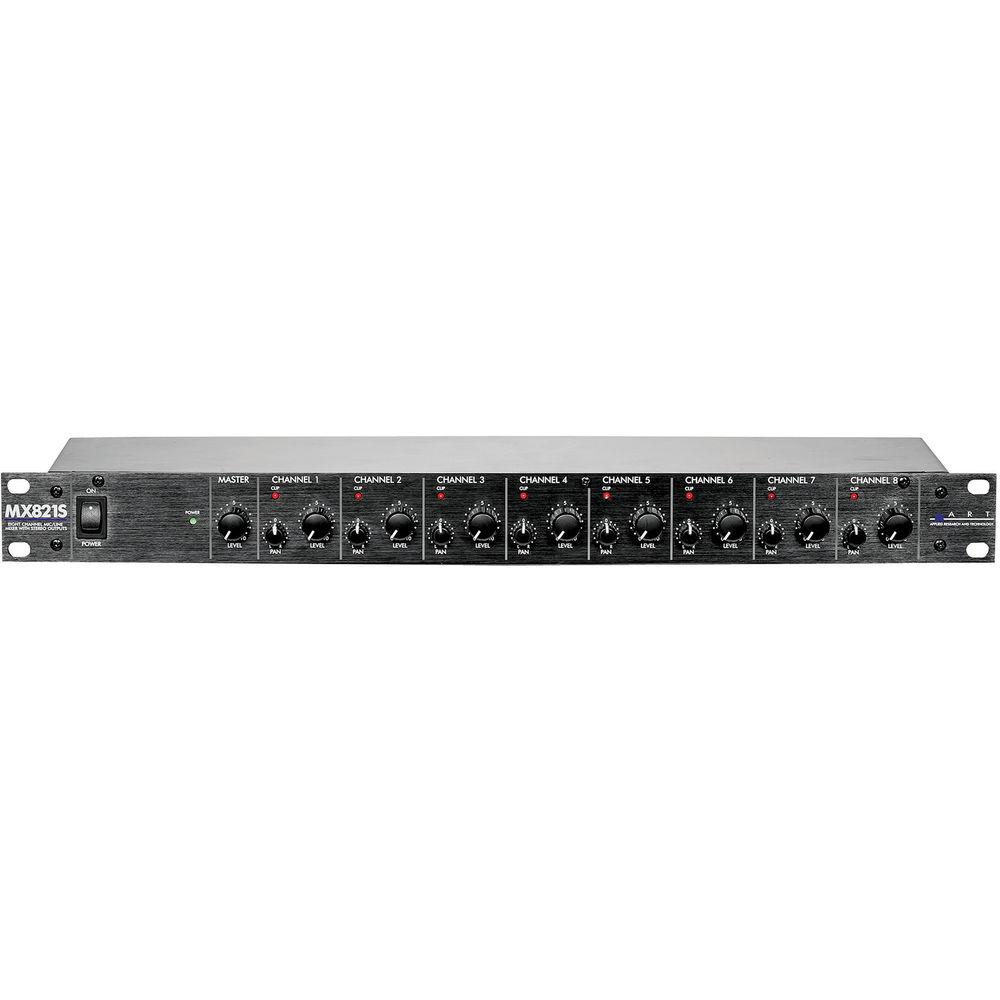

Product description The ART MX821S - Eight-Channel Mic/Line Mixer with Stereo Outputs is a 1RU steel chassis mixer with internal power supply. The unit provides eight selectable balanced XLR microphone inputs with optional +48V low noise phantom power or eight unbalanced 1/4" TS line inputs. Each channel has both an independent level and pan control for placing the channel within the stereo image.

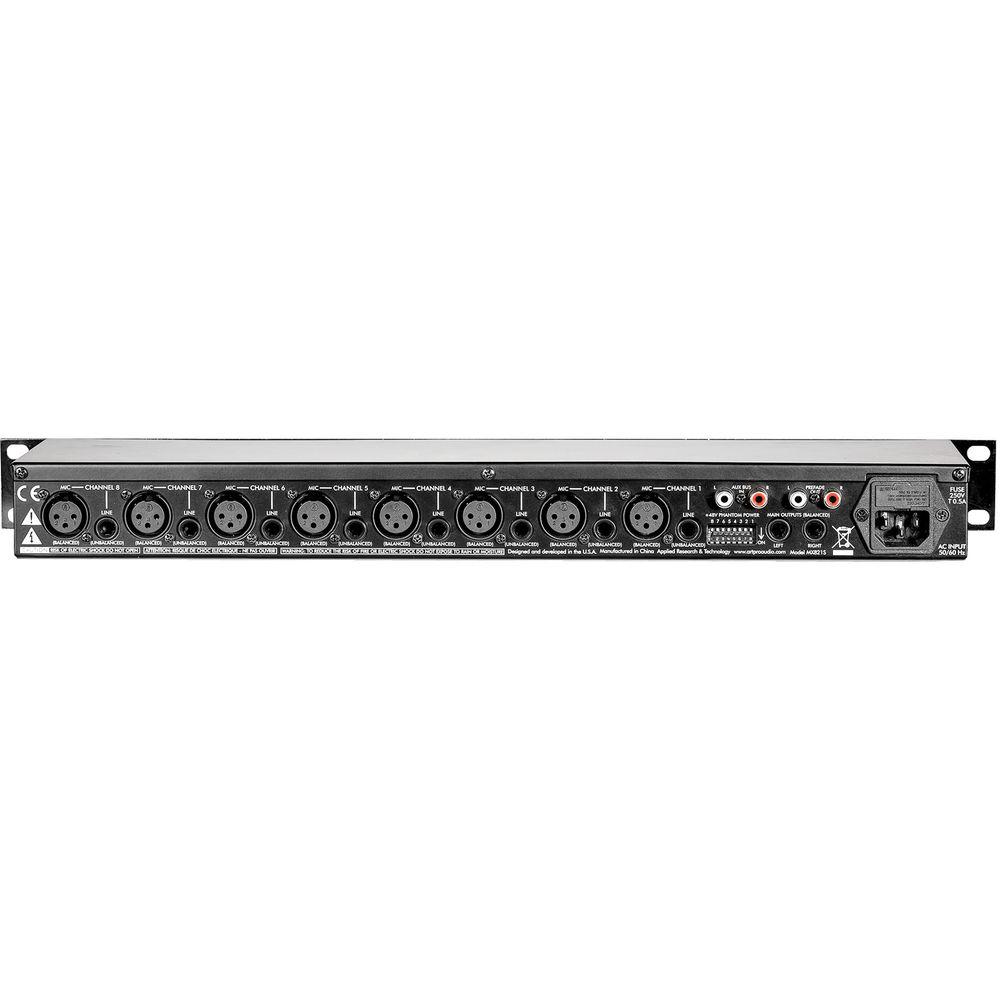

For outputs the unit features left and right 1/4" TRS outputs. Additionally each line input jack can be individually converted to a direct line output by means of an internal jumper system within the device. The unit's prefade output jacks and auxiliary bus input jacks also allow multiple units to be connected together to expand the system's I/O. The unit is suitable for a wide range of applications including stage, studio, and permanent installs such as for conference rooms, corporate boardrooms, churches, restaurants, small clubs, health clubs and more. UPC: 840402021759 In the Box ART MX821S - Eight-Channel Mic/Line Mixer with Stereo Outputs Power Cord Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ART MX821S - Eight-Channel Mic Line Mixer with Stereo Outputs in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersART MX821S Specs | Input Connections | 8x Balanced XLR-3F
8x 1/4" Unbalanced TS line
2x (Left and Right) Unbalanced AUX RCA | | Outputs | 2x (Left and Right) Balanced 1/4" TRS
2x (Left and Right) Unbalanced RCA | | Input Impedance | Mic: 2 kΩ
Line: 20 kΩ
Aux Bus In: 51 kΩ | | Output Impedance | Main Out: 200 Ω
Prefade Out: 100 Ω | | Frequency Response | 20 to 20,000 Hz (+0, -1 dB) | | THD | <0.01% at 1,000 Hz | | Phase Response | All connections are phase coherent | | SNR | > 99 dB typical (Ref 0 dBu) | | CMRR | > 43 dB typical | | Maximum Input Level | Mic: -4 dBu
Line: +22 dBu | | Maximum Output Level | Balanced: +24 dBu
Unbalanced: +18 dBu | | Maximum Gain | Mic: 54 dB
Line: 29 dB | | Phantom Power | Switch selectable, +48 VDC (regulated and filtered)
7 mA current limiting per chanel | | Power Requirements | USA: 95 to 120 VAC, 50-60 Hz, < 15 W | | Dimensions | 1.75 x 19.0 x 6.00" (4.5 x 48.3 x 15.2 cm) | | Weight | 6.3 lb (2.9 kg) | | | | Package Weight | 6.35 lb | | Box Dimensions (LxWxH) | 21.0 x 10.5 x 3.6" |
