User Manual for ART MyMonitorII Personal Monitoring Solution - Mic Line Mixer Click to enlarge the picture
Contents of the user manual for the ART MyMonitorII Personal Monitoring Solution -
- Product category: Accessories ART
- Brand: ART
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ART Accessories
|
User manual for the ART MyMonitorII Personal Monitoring Solution - contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ART product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ART user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ART product will considerably shorten its lifespan!
|

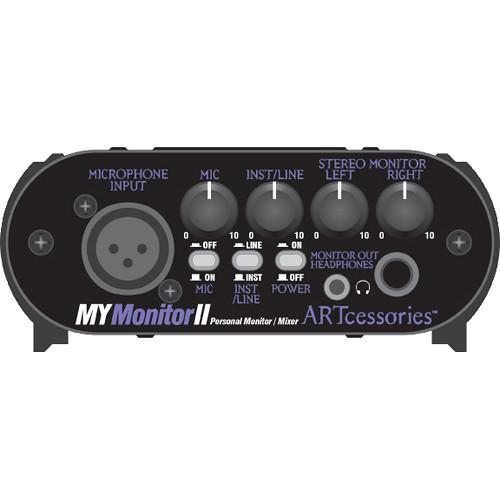

Product description MyMonitorII from ART is a personal monitoring solution that blends any microphone source with any stereo and instrument source. The microphone features a thru port that allows a direct connection with a mixer and passes +48V phantom power for condenser microphones. The line/instrument input also features a thru port connecting to a mixer.
Additionally, the microphone input features an on/off switch to locally mute the signal without creating any pops or noise. The headphone section features a single level control for both 1/8" and 1/4" outputs. MyMonitorII can be powered by an optional 9V battery or via the included power adapter. -
- Blends any microphone, instrument and stereo source for personal monitoring
- Microphone input and thru with pop-less on/off mute switch
- Passes phantom power for operation with condenser microphones
- Instrument/Line input and thru jacks
- Stereo monitor input with blend control
- Headphone output section has 1/8" and 1/4" jacks
- High performance, low noise circuitry
- 9V battery and 12 VDC power operation
UPC: 840402041634 In the Box ART MyMonitorII Personal Monitoring Solution - Mic/Line Mixer Power Adapter Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ART MyMonitorII Personal Monitoring Solution - Mic Line Mixer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersART MYMONITORII Specs | Input Connections | Microphone: XLR balanced
Stereo Monitor: 1/4" / 6.35 mm
Instrument/Line Input: 1/4" / 6.35 mm mono | | Output Connectors | Microphone: XLR balanced
Headphones: 1/4" / 6.35 mm and 1/8" / 3.5 mm
Instrument/Line Thru: 1/4" / 6.35 mm | | Input Impedance | Mic: 4.5 kOhms
Instrument: 1 MOhm
Stereo Monitor/Line: 100 kOhms | | Output Impedance | Headphone Output: 47 Ohms | | SNR | > 96 dB | | Maximum Input Level | Mic: +6 dBu
Instrument: +12 dBu
Line: +32 dBu
Stereo Monitor: > +32 dBu | | Maximum Output Level | Headphones: +12 dBu | | Maximum Gain | Mic: 47 dB
Instrument: 41 dB
Stereo Monitor/Line: 21 dB | | Power Requirements | 12 VDC @ 150 mA (adapter included) or 9 V Battery | | Dimensions (H x W x D) | 1.9 x 4.6 x 4.1" (47 x 117 x 104 mm) | | Weight | 1.1 lbs (0.5 kg) | | | | Package Weight | 1.45 lb | | Box Dimensions (LxWxH) | 9.8 x 5.1 x 2.9" |
