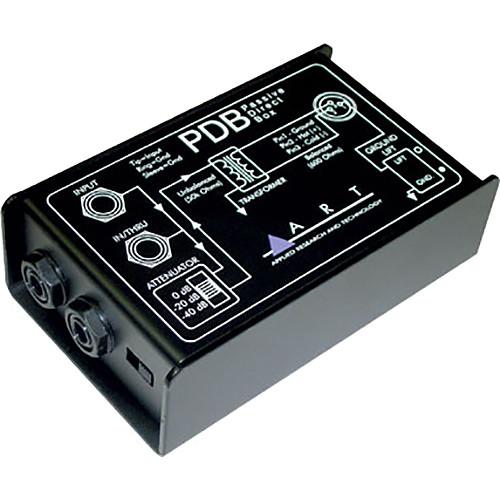

Product description The PDB passive direct box from ART is a roadworthy DI for connection of the outputs of electronic musical instruments (or other audio sources) to the balanced inputs of mixer consoles and other balanced inputs. It also allows for connection of a music source to an instrument amplifier while simultaneously patching it to a mixer. The unit features switchable input attenuation, a 50k Ω instrument input, 50k Ω parallel link jack, a 600 Ω XLR output jack and a switchable ground lift. It excels at impedance matching and improving the sound of any instrument plugged into it. Enclosed in a rugged steel chassis, it is designed and manufactured to the highest standards to provide years of quiet, reliable performance. Electric Guitar and Bass - The high impedance signal from a guitar or bass guitar pickup is translated by the unit into a low impedance balanced signal required by mixing consoles.
Keyboards and Line Level Signals - Automatically balances and matches the line level outputs of modern electronic keyboards. If using a multiple keyboard setup and the keyboards are all plugged into a single instrument amplifier, the PDB can be used to replace individual direct boxes by simply sending the output of the instrument amplifier to the PDB and then to the console.
DJ Console Output Signals - DJ mixers often supply only an unbalanced -10dB signal. The PDB converts this signal to a balanced line level signal before it reaches the console, while providing a convenient method of connector transition with the capability to run long cables.
Speaker Level Signals - By accepting speaker level inputs from a power amplifier's output, the DI allows post-amplifier, post EQ and effects signals to be fed directly to the console. In this manner, a particular effect or amplifier sound can be sent directly to the mix.
UPC: 840402011392 In the Box ART PDB Single Channel Passive Direct Injection Box Ninety (90) Day Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ART PDB Single Channel Passive Direct Injection Box in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersART PDB Specs | Input Connections | 2 x 1/4" TRS phone | | Output Connectors | 1 x XLR | | Input Level | 0, -20 and -40dB switchable input attenuation | | Output Level | Not specified by manufacturer | | Controls | Ground lift switch | | Frequency Response | 10Hz to 50kHz +/-0.5dB @ +4dBu | | Noise | Not specified by manufacturer | | Power | Passive | | Dimensions (WxDxH) | 5 " x 3" x 2" | | Weight | Not specified by manufacturer | | Specialties | Switchable input attenuation | | | | Package Weight | 1.45 lb | | Box Dimensions (LxWxH) | 7.008 x 4.724 x 3.386" |
