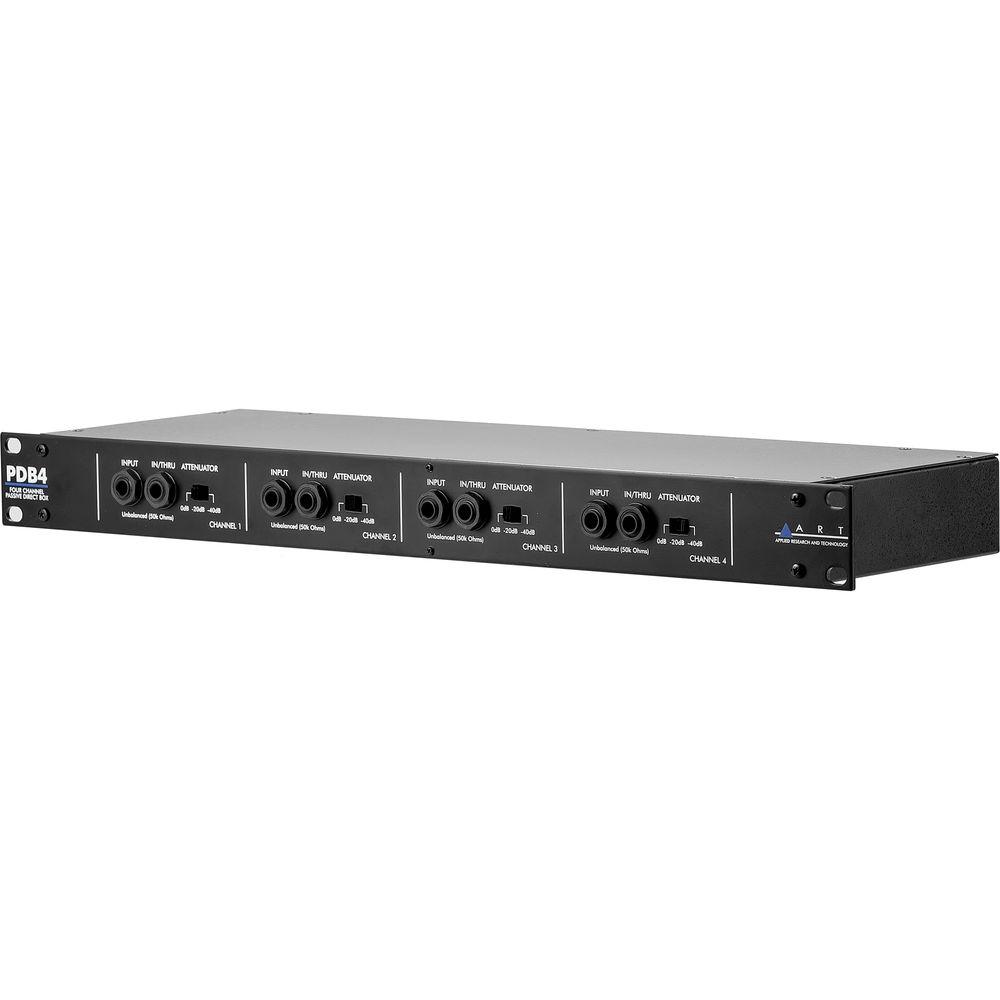

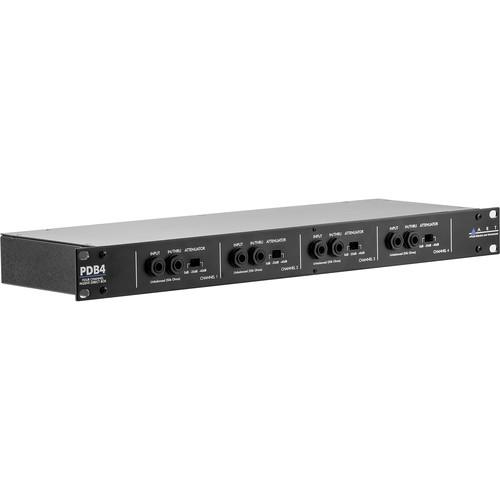

Product description The ART PDB4- Rackmountable 4-Channel Passive Direct Box is designed for studio and live performance applications. The 1RU 19" rackmountable passive device features four fully transformer isolated direct boxes with inputs and outputs isolated from one another to maximize channel separation and remove system ground loops. It can be used to connect the 1/4" outputs of electronic music instruments and other audio sources to the balanced XLR inputs of a mixing console or other balanced audio equipment.

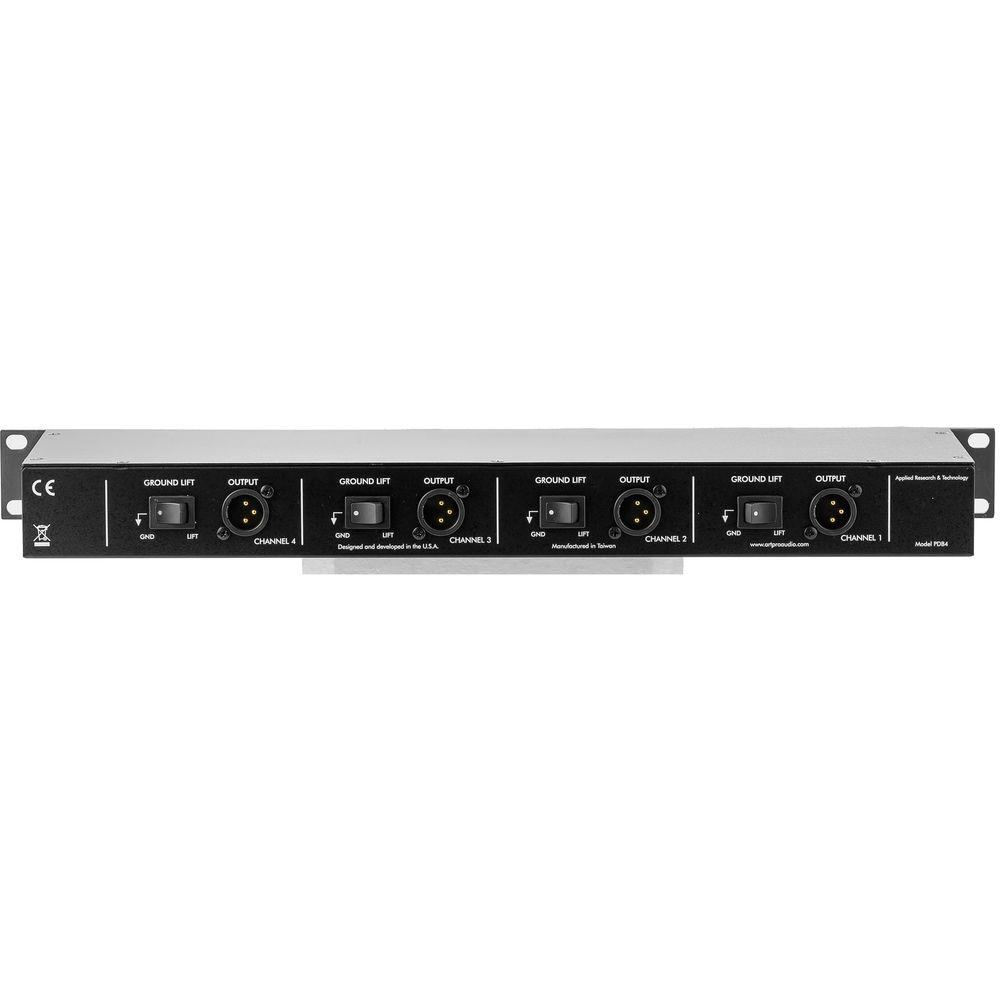

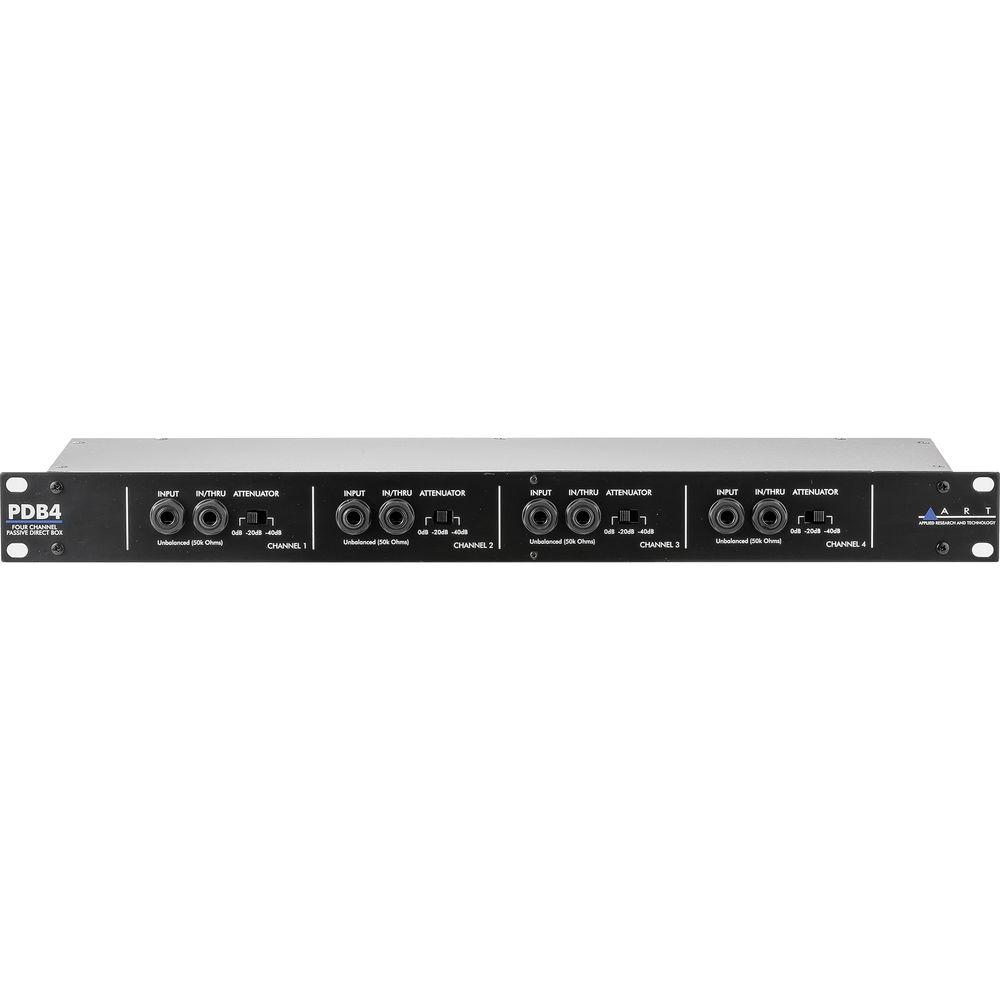

Each channel features a front panel 1/4" input, a 1/4" pass thru, and an input attenuation switch with 0 dB, -20 dB, -40 dB settings and accepts a frequency response of 10 to 50,000 Hz. Each channel features a back panel balanced XLR-3M output for connecting to a mixing console or preamplifier for recording as well as a ground lift switch. UPC: 840402019756 In the Box ART PDB4- Rackmountable 4-Channel Passive Direct Box Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ART PDB4- Rackmountable 4-Channel Passive Direct Box in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersART PDB4 Specs | Inputs | 4x 1/4" TS unbalanced | | Outputs | 4x 1/4" TS unbalanced pass thru
4x XLR-3M balanced | | Input Impedance | 50 kΩ | | Output Impedance | 600 Ω | | Ground Lift | Switchable | | Input Attenuation | Switchable (0 dB, -20 dB, -40 dB) | | Frequency Response | 10 to 50,000 Hz (±0.5 dB at +4 dBu) | | Chassis | Steel | | Power Requirement | Passive | | Dimensions (H x W x D) | 1.75 x 19.00 x 6.00" (44.5 x 483 x 152 mm) | | Weight | 6.50 lb (2.95 kg) | | | | Package Weight | 5.25 lb | | Box Dimensions (LxWxH) | 21.8 x 9.8 x 3.1" |
