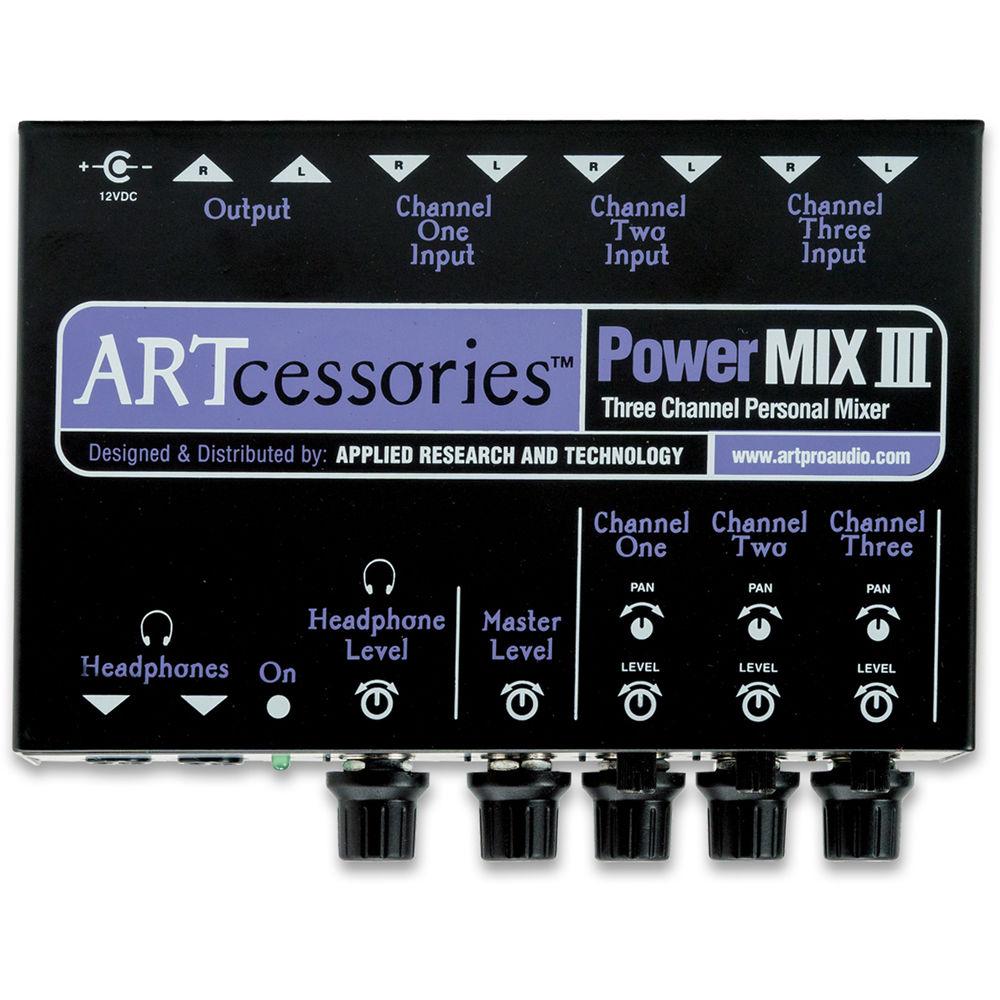

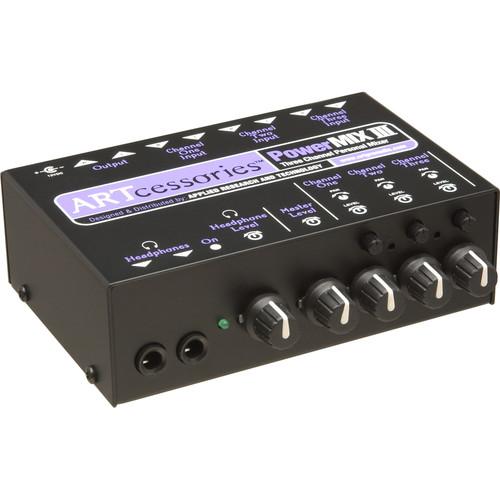

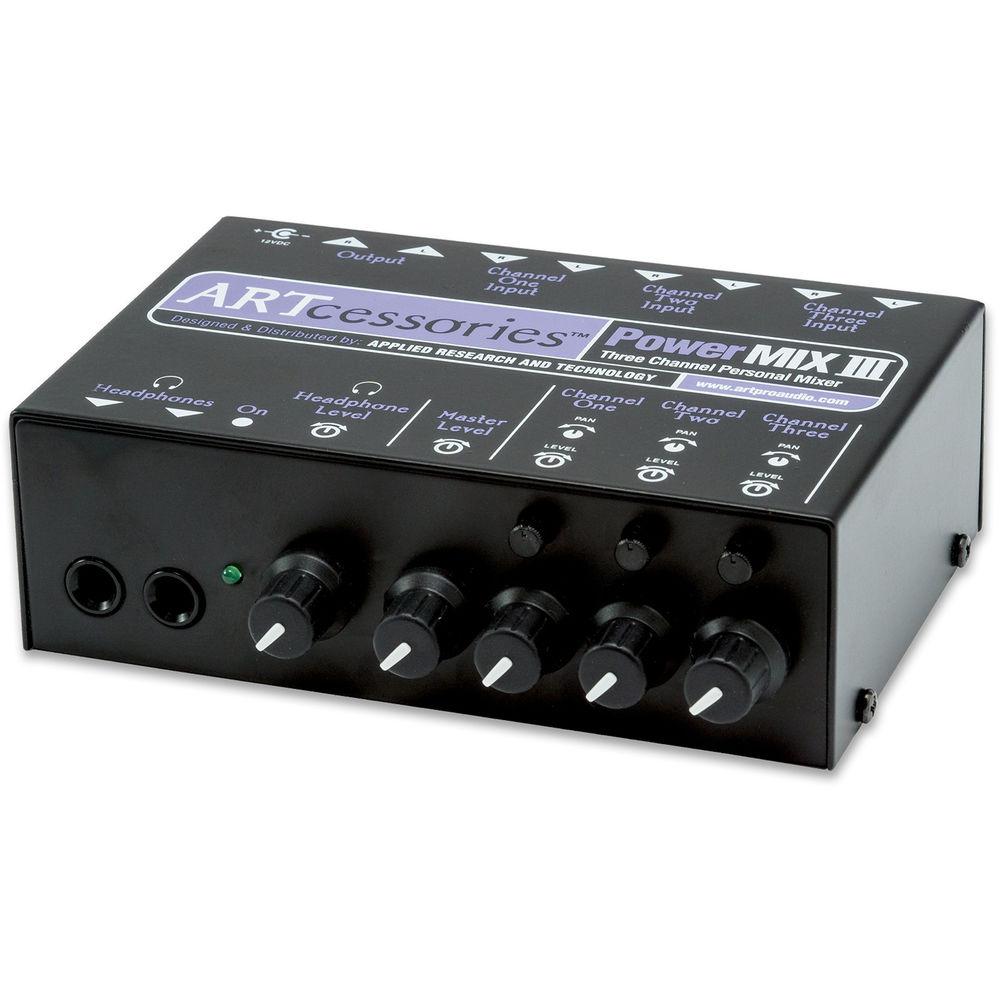

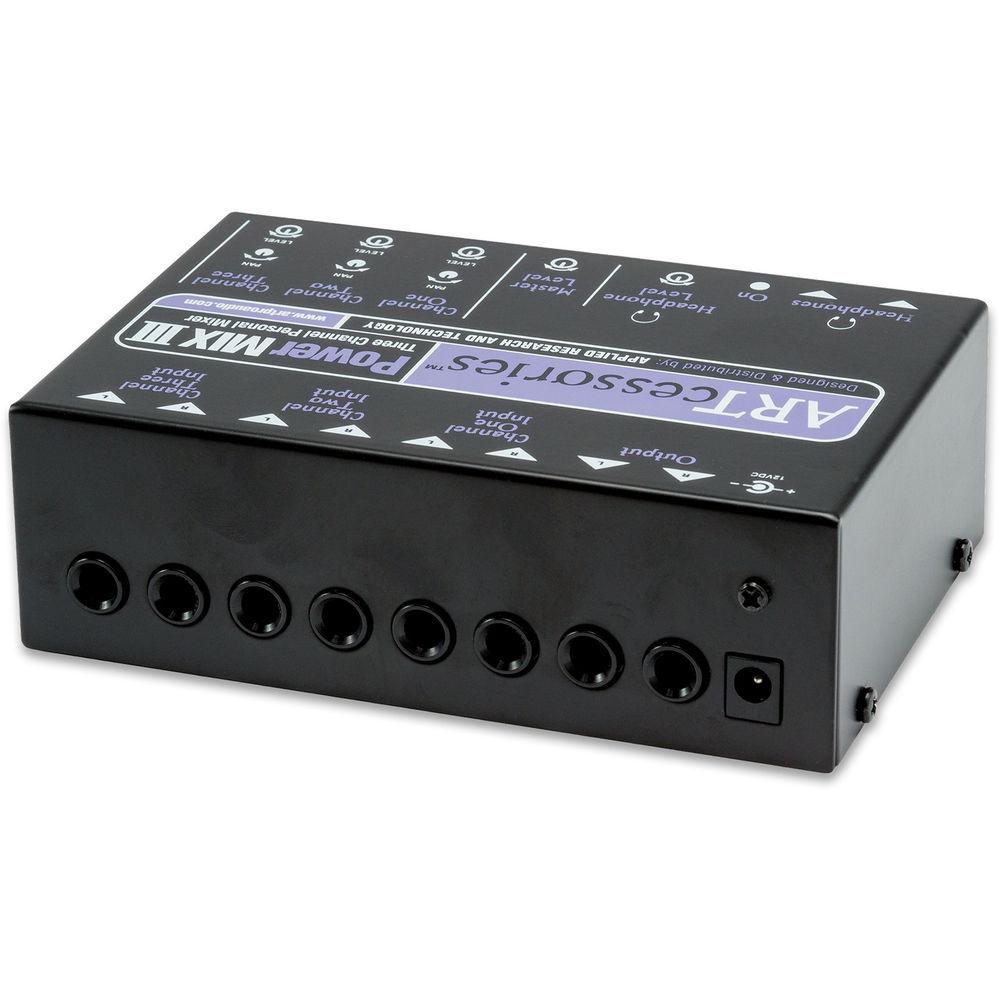

User Manual for ART PowerMIX III 3-Channel Personal Stereo Mixer Click to enlarge the picture
Contents of the user manual for the ART PowerMIX III 3-Channel Personal Stereo
- Product category: Analog Utility Mixers ART
- Brand: ART
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ART Analog Utility Mixers
 |
User manual for the ART PowerMIX III 3-Channel Personal Stereo contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ART product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ART user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ART product will considerably shorten its lifespan!
|
Product description The ART PowerMIX III is a 3-channel stereo mixer enabling the outputs of three stereo devices—such as a media player, a recorder, and a keyboard—to be mixed via a stereo L/R output. Each channel features two 1/4" inputs, comprising stereo pairs. You'll find level and pan controls over each channel.
The output section offers two unbalanced 1/4" outputs, as well as two 1/4" headphone jacks allowing multiple pairs of headphones. The headphone section provides an independent level control, while a "Master" level control enables global level control over all channels. The mixer is powered by means of an included 12 VDC power supply. At 5.6 x 3.8 x 1.8", the mixer is relatively compact. - Key Features at a Glance
-
- Three sets of stereo input channels, each with their own pan and level controls
- Three sets of 1/4" unbalanced inputs (left and right)
- Right inputs may be used for mono signals
- Master Level control regulates all three channels
- Left and right unbalanced 1/4" outputs
- Two headphone channels with independent stereo 1/4" outputs
- Headphone Level control regulates both outputs
UPC: 840402014256 In the Box ART PowerMIX III 3-Channel Personal Stereo Mixer 12 VDC Adapter Limited 90-Day Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ART PowerMIX III 3-Channel Personal Stereo Mixer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersART PowerMIX III Specs | I/O | 6 x 1/4" unbalanced inputs, phone type (3 stereo pairs)
2 x 1/4" unbalanced outputs, phone type
2 x 1/4" stereo headphone outputs, phone type
Channel 1: L/R Stereo 1/4" Phone
Channel 2: L/R Stereo 1/4" Phone
Channel 3: L/R Stereo 1/4" Phone | | Input Impedance | 10 kOhms | | Output Impedance | 100 Ohms | | Max Gain | +27 dB | | Input Level | +30 dB, maximum | | Output Level | +13 dB, maximum | | THD | < 0.005% | | Power | 12 VDC (adapter included) | | Dimensions | 5.6 x 3.8 x 1.8" / 143.0 x 92.0 x 45.0 mm | | Weight | 1.3 lb / 590 g | | | | Package Weight | 1.85 lb | | Box Dimensions (LxWxH) | 14.2 x 6.8 x 2.1" |
Rating40% users recommend this product to others. And what about you?
This product has already been rated by 55 owners. Add your rating and experience with the product.
